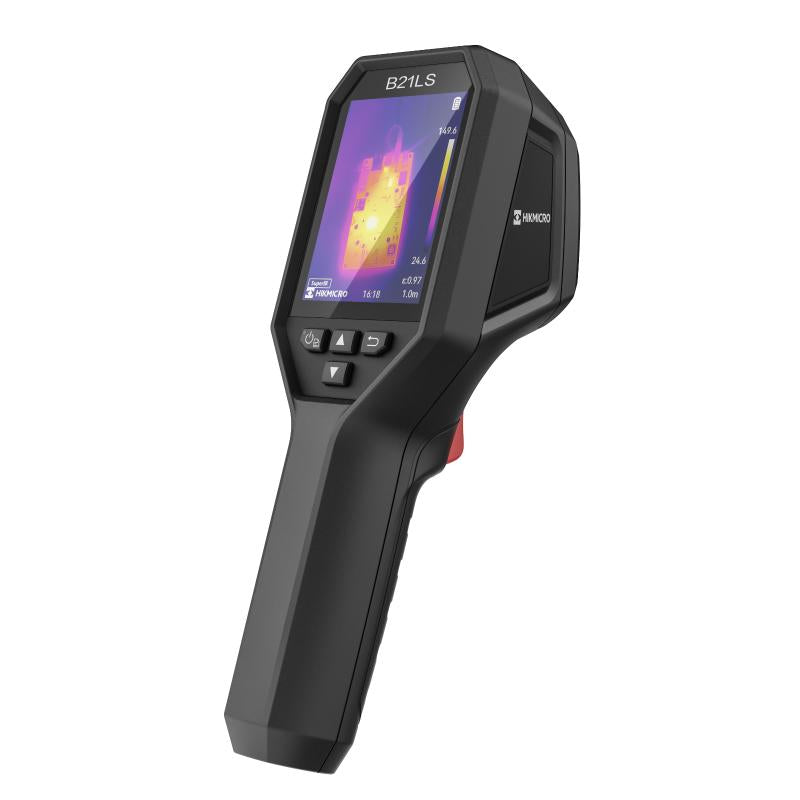

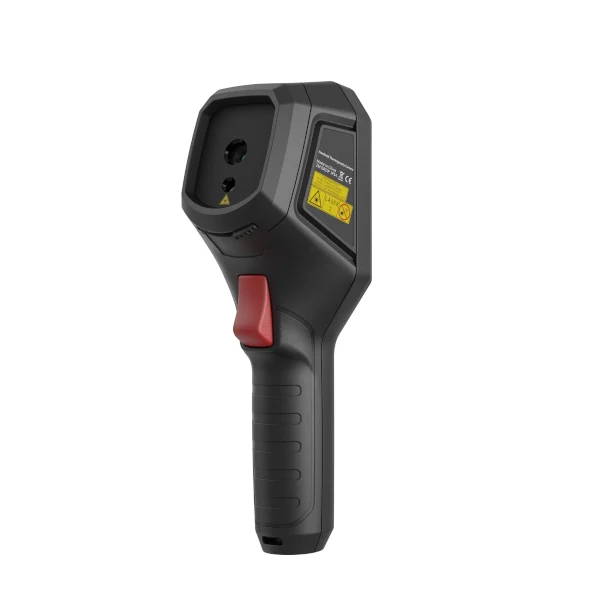

HIKMICRO B21LS Handheld Thermography Camera
Använd vår chatt för personlig support. Eller kontakta oss via +45 31 33 18 19 eller salg@GOmeasure.dk
- IR Resolution: 256 × 192 (49,152 pixels)
- NETD: < 40 mK (@ 25 °C, F#=1.0)
- Image Frequency: 25 Hz
- Detector Pitch: 12 µm
- Spectral Range: 7.5 to 14 µm
- Focal Length: 3.6 mm
- F-number: F1.0
- Field of View (FOV): 37.2° × 50.0°
- Spatial Resolution (IFOV): 3.3 mrad
- Focus Mode: Focus Free
- Min. Focus Distance: 0.3 m (0.98 ft)
%0ANETD:%20%26lt;%2040%20mK%20(@%2025%20%C2%B0C,%20F%23=1.0)%0AImage%20Frequency:%2025%20Hz%0ADetector%20Pitch:%2012%20%C2%B5m%0A%0ASpectral%20Range:%207.5%20to%2014%20%C2%B5m%0AFocal%20Length:%203.6%20mm%0AF-number:%20F1.0%0AField%20of%20...
){kind=link}
Upptäck möjligheterna
Mer information
Beskrivning
HIKMICRO B21LS is designed for temperature measurement to find invisible faults. It’s equipped with a 256 x 192 resolution thermal detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F). Which meets most situations. It helps the staff to quickly find the fault according to accurate temperature measurements of hightemperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as building, HVAC, and auto industry, etc.
Key Feature
- IR resolution: 256 × 192 (49,152 pixels)
- NETD : ＜40 mK (@ 25 °C,F#=1.0)
- Temperature measurement range : -20°C to 550°C (-4°F to 1022°F）
- Accuracy: Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
- Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
- 25 Hz image frequency
- 3.2" 480 × 640 Resolution LCD Screen
- Up to 6 hours continuous running
- Support SuperIR image enhancement technology
High Image Quality
Get unmatched clarity with HIKMICRO B21LS, featuring a highly sensitive (NETD < 40 mK) VOx detector and optimized image enhancement algorithms. View it all on a 3.2" LCD screen with a crisp 640x480 resolution, capturing every detail with its 256x192 thermal resolution.
Enhanced Thermal Clarity with SuperIR
HIKMICRO's SuperIR image enhancement technology upscales the resolution of captured thermal images to 640 x 480 (307,200 pixels), significantly improving thermal image quality. It also provides a smooth 25 Hz image frequency for live viewing and photo capture.
* Real-time SuperIR is only available in thermal mode.
Experience the New and Improved Display
The B21LS features a high-resolution display of 640x480. With the SuperIR, you can enjoy real-time high-definition previews, revealing more details and enhancing your overall experience.
Full-screen Precise and Wide Temperature Measurement
The thermal imaging camera B21LS supports the capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. It accurately measures temperatures from -20°C to 550°C (-4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.
Wi-Fi Connectivity
Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.
Optional innovative macro mode
Using a clip-on macro lens, the B21LS cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.
High Temperature Alarm
Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.
Fast Image Frequency
Whether in electrical scenarios, residential inspections, or equipment maintenance, the thermal imaging camera B21LS provides reliable performance. Its 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.
Laser Pointer
The Laser Pointer with B21LS helps show the position of the center point on actual object.
Analyze, share images, and generate reports in real-time on-site.
HIKMICRO Analyzer Software
Included software offers flexible ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.
Dokument
Alternativ
Video
HIKMICRO B21LS is designed for temperature measurement to find invisible faults. It’s equipped with a 256 x 192 resolution thermal detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F). Which meets most situations. It helps the staff to quickly find the fault according to accurate temperature measurements of hightemperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as building, HVAC, and auto industry, etc.
Key Feature
- IR resolution: 256 × 192 (49,152 pixels)
- NETD : ＜40 mK (@ 25 °C,F#=1.0)
- Temperature measurement range : -20°C to 550°C (-4°F to 1022°F）
- Accuracy: Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
- Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
- 25 Hz image frequency
- 3.2" 480 × 640 Resolution LCD Screen
- Up to 6 hours continuous running
- Support SuperIR image enhancement technology
High Image Quality
Get unmatched clarity with HIKMICRO B21LS, featuring a highly sensitive (NETD < 40 mK) VOx detector and optimized image enhancement algorithms. View it all on a 3.2" LCD screen with a crisp 640x480 resolution, capturing every detail with its 256x192 thermal resolution.
Enhanced Thermal Clarity with SuperIR
HIKMICRO's SuperIR image enhancement technology upscales the resolution of captured thermal images to 640 x 480 (307,200 pixels), significantly improving thermal image quality. It also provides a smooth 25 Hz image frequency for live viewing and photo capture.
* Real-time SuperIR is only available in thermal mode.
Experience the New and Improved Display
The B21LS features a high-resolution display of 640x480. With the SuperIR, you can enjoy real-time high-definition previews, revealing more details and enhancing your overall experience.
Full-screen Precise and Wide Temperature Measurement
The thermal imaging camera B21LS supports the capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. It accurately measures temperatures from -20°C to 550°C (-4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.
Wi-Fi Connectivity
Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.
Optional innovative macro mode
Using a clip-on macro lens, the B21LS cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.
High Temperature Alarm
Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.
Fast Image Frequency
Whether in electrical scenarios, residential inspections, or equipment maintenance, the thermal imaging camera B21LS provides reliable performance. Its 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.
Laser Pointer
The Laser Pointer with B21LS helps show the position of the center point on actual object.
Analyze, share images, and generate reports in real-time on-site.
HIKMICRO Analyzer Software
Included software offers flexible ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.
