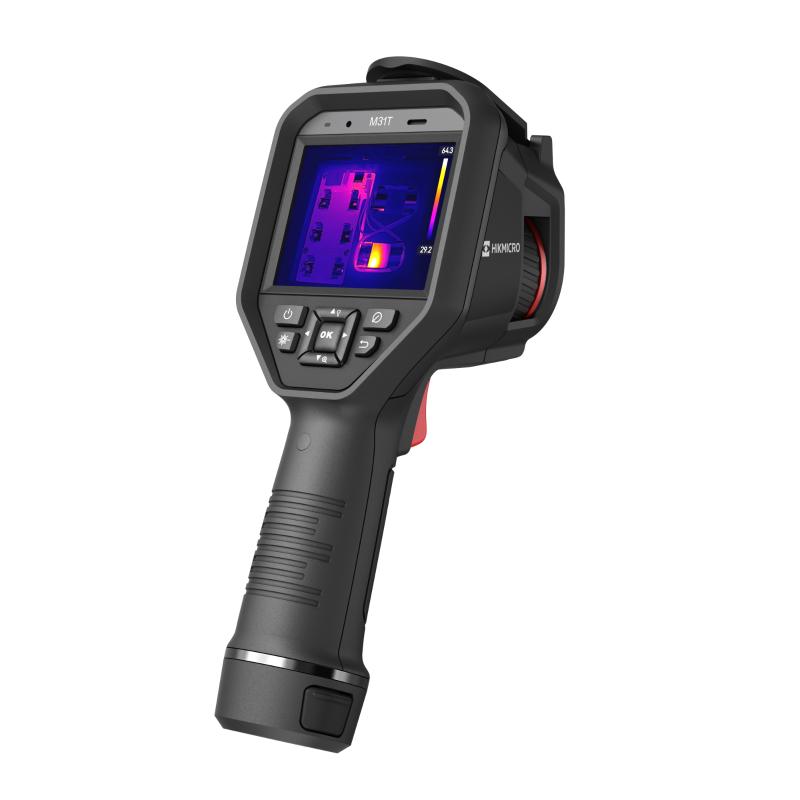

HIKMICRO M31T Handheld Thermography Camera
Använd vår chatt för personlig support. Eller kontakta oss via +45 31 33 18 19 eller salg@GOmeasure.dk
- IR Resolution - 384 x 288 (110,592 pixels)
- SuperIR - 768 x 576 (442,368 pixels)
- NETD - < 30mK (@ 25 °C, F#=1.0)
- Image Frequency - 50 Hz
- Detector Pitch - 17 μm
- Spectral Range - 7.5 to 14 μm
- Focal Length - 6.4mm
- F-number - F1.0
- Field of View (FOV) - 41.1°×30.5°
- Spatial Resolution (IFOV)- 1.87 mrad
- Focus Mode - Manual Focus
%0A%0A%0ASuperIR%20-%20768%20x%20576%20(442,368%20pixels)%0A%0ANETD%20-%20%26lt;%2030mK%20(@%2025%20%C2%B0C,%20F%23=1.0)%0A%0AImage%20Frequency%20-%C2%A050%C2%A0Hz%0A%0ADetector%20Pitch%C2%AD%20-%2017%20%CE%BCm%0A%0ASpectral%20Range%20-%207.5%20to%2014...
){kind=link}
Upptäck möjligheterna
Mer information
Beskrivning
The HIKMICRO M31T handheld thermal imaging camera is engineered for high-precision temperature monitoring within critical ranges. Equipped with a 384×288 resolution, advanced calibration algorithms, it enables rapid identification of temperature anomalies in dynamic environments. With real-time temperature tracking at ±0.5°C accuracy (ambient temperature: 5°C–40°C), the device supports informed decision-making and enhances safety.
Features
- High sensitivity thermal module with 384 x 288 resolution
- Supports multiple palettes
- High quality optical module with 8 MP resolution
- Bi-spectrum image fusion, picture-in-picture preview
- Wide temperature measurement range: 5℃~40℃
- High temperature measurement accuracy: Max (±0.5°C), for the ambient temp. 15°C to 35°C
- 640 x 480 resolution 3.5'' LCD touch display
- LED light supplement makes the device a torch in required scenarios
- Supports 1.0x to 8.0x continuous digital zoom
High Image Quality
A highly sensitive VOx detector (NETD < 35 mK), IR resolution up to 640 x 480 (307,200 pixels) provides a distinct thermal vision of the target.
Manual Focus
Adjusting the manual focus ring allows to see objects clearly on targets as close as 0.1 m (0.33 ft) and still capture sharp images and more accurate results from further away.
Interchangeable Battery System
Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.
Multiple Image Annotations
Text or audio annotations within the images instead of taking notes by hand, helping to improve inspection efficiency and productivity.
1-Tap Level & Span
Quickly highlights the area of the image you are interested in by narrowing the span with one tap on the 3.5" LCD touchscreen, instantly improving image contrast and highlighting potential problems.
Multiple Image Mode
Thermal, Fusion, PIP and Optical modes to suit your preferred.
Rugged & Durable Design
IP54 rated for protection against water and dust. Featuring 2-meter (6.6ft) drop protection, suitable for industrial use.
Laser Pointer
The Laser Pointer helps show the position of the center point on actual object.
Conveniently Share Images and Reports
Connect HIKMICRO Viewer App via Wi-Fi to transfer photos or videos from camera to mobile device. Analyze, share images, and generate reports in real-time on-site.
Dokument
Alternativ
Video
The HIKMICRO M31T handheld thermal imaging camera is engineered for high-precision temperature monitoring within critical ranges. Equipped with a 384×288 resolution, advanced calibration algorithms, it enables rapid identification of temperature anomalies in dynamic environments. With real-time temperature tracking at ±0.5°C accuracy (ambient temperature: 5°C–40°C), the device supports informed decision-making and enhances safety.
Features
- High sensitivity thermal module with 384 x 288 resolution
- Supports multiple palettes
- High quality optical module with 8 MP resolution
- Bi-spectrum image fusion, picture-in-picture preview
- Wide temperature measurement range: 5℃~40℃
- High temperature measurement accuracy: Max (±0.5°C), for the ambient temp. 15°C to 35°C
- 640 x 480 resolution 3.5'' LCD touch display
- LED light supplement makes the device a torch in required scenarios
- Supports 1.0x to 8.0x continuous digital zoom
High Image Quality
A highly sensitive VOx detector (NETD < 35 mK), IR resolution up to 640 x 480 (307,200 pixels) provides a distinct thermal vision of the target.
Manual Focus
Adjusting the manual focus ring allows to see objects clearly on targets as close as 0.1 m (0.33 ft) and still capture sharp images and more accurate results from further away.
Interchangeable Battery System
Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.
Multiple Image Annotations
Text or audio annotations within the images instead of taking notes by hand, helping to improve inspection efficiency and productivity.
1-Tap Level & Span
Quickly highlights the area of the image you are interested in by narrowing the span with one tap on the 3.5" LCD touchscreen, instantly improving image contrast and highlighting potential problems.
Multiple Image Mode
Thermal, Fusion, PIP and Optical modes to suit your preferred.
Rugged & Durable Design
IP54 rated for protection against water and dust. Featuring 2-meter (6.6ft) drop protection, suitable for industrial use.
Laser Pointer
The Laser Pointer helps show the position of the center point on actual object.
Conveniently Share Images and Reports
Connect HIKMICRO Viewer App via Wi-Fi to transfer photos or videos from camera to mobile device. Analyze, share images, and generate reports in real-time on-site.
