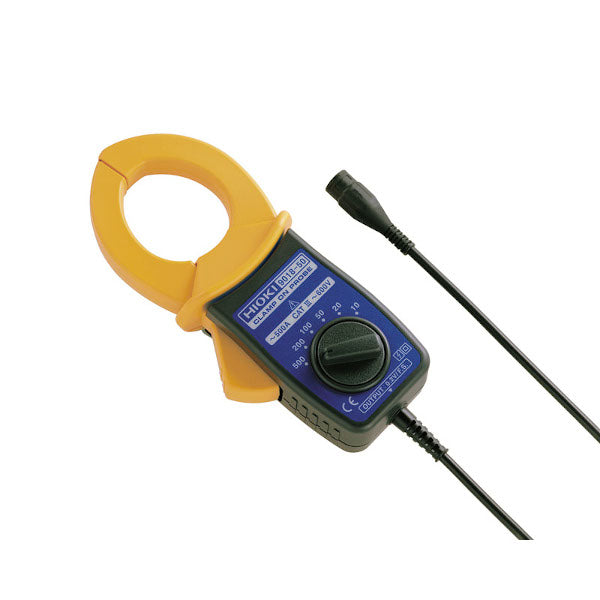

Hioki 9018-50 Clamp On Probe
Använd vår chatt för personlig support. Eller kontakta oss via +45 31 33 18 19 eller salg@GOmeasure.dk
Hioki current sensors are best-in-class devices for accurately capturing a wide range of current levels. The 9018-50 is a multi-range 500A AC voltage output clamp sensor with superior phase characteristics for capturing waveforms with DMMs and Memory HiCorders.
Upptäck möjligheterna
Mer information
Beskrivning
Hioki 9018 Current Sensor
Hioki current sensors are best-in-class devices for accurately capturing a wide range of current levels. The 9018-50 is a multi-range 500A AC voltage output clamp sensor with superior phase characteristics for capturing waveforms with DMMs and Memory HiCorders.
Key Features
• Choose from up to six general-purpose ranges
• Accurately record and analyze waveforms and harmonic signals
■ Basic specifications (Accuracy guaranteed for 1 year)
| Rated current | 10 A to 500 A AC, 6 ranges |
|---|---|
| Accuracy | ±1.5 % rdg. ±0.1 % f.s. (45 to 66 Hz) |
| Frequency characteristics | Add to amplitude accuracy : ± 1 % rdg.\nAdd to phase accuracy : ± 2.5 ° for frequencies from 40 Hz to 3 kHz |
| Output rate | 0.2 V AC f.s. (f.s. = setting rage)\n(Connect to a voltage input device providing a high input impedance of 1 MΩ) |
| Max. allowable input | 150 A rms continuous (10/20/50 A ranges)\n400 A rms continuous (100/200 A ranges)\n650 A rms continuous (500 A range)\n(For 40 Hz to 100 Hz: 100 %, and for 100 Hz to 1 kHz: within 50 % of derating) |
| Max. rated voltage to earth | 600 Vrms (50/60 Hz, CAT III) |
| Core diameter | φ46 mm (1.81 in) |
| Dimensions and mass | 78 mm (3.07 in) W × 188 mm (7.40 in) H × 35 mm (1.38 in) D, 420 g (14.8 oz), cord length: 3 m (9.84 ft) |
| Accessories | Instruction manual ×1 |
