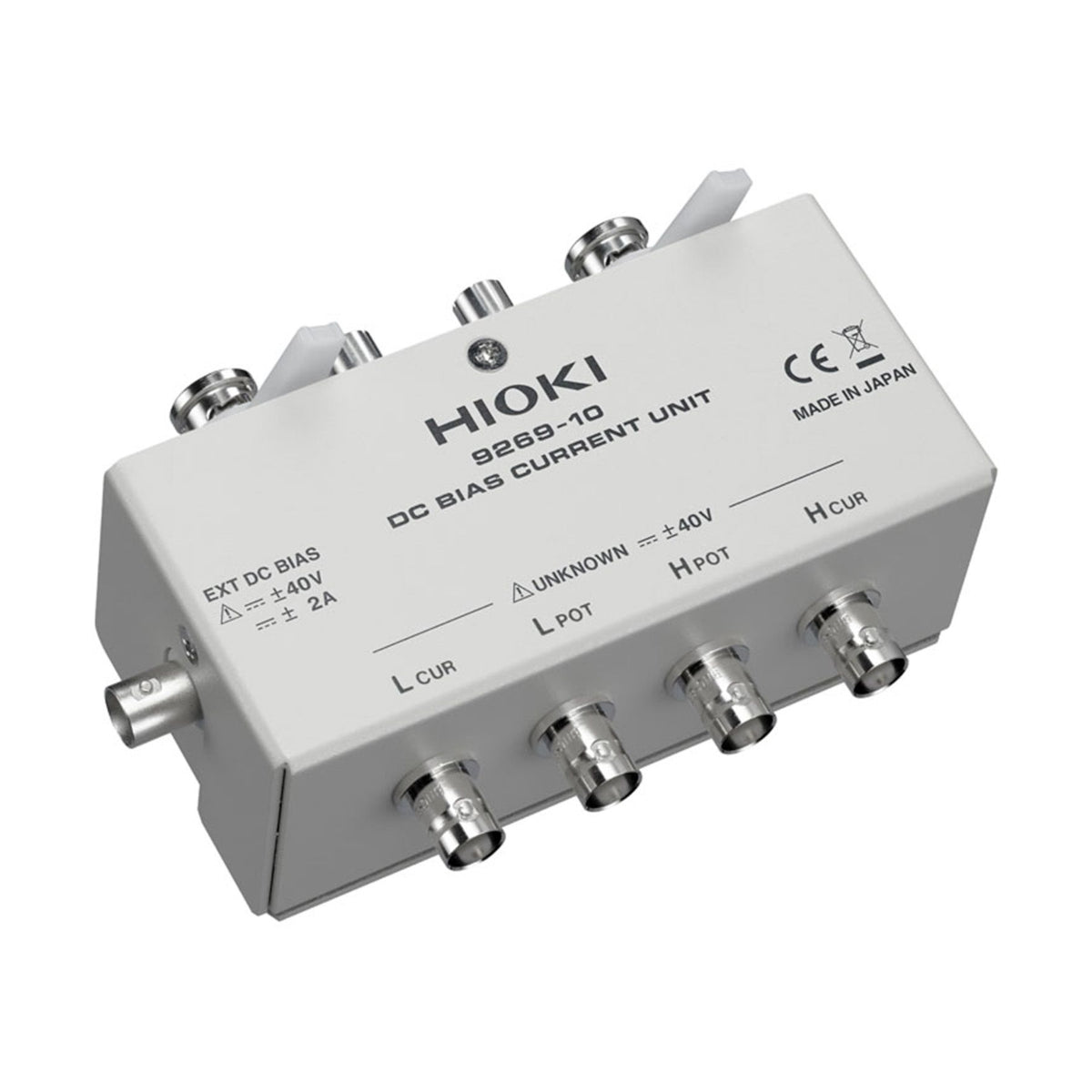

Hioki 9269-10 DC Bias Current Unit
Använd vår chatt för personlig support. Eller kontakta oss via +45 31 33 18 19 eller salg@GOmeasure.dk
- Measurement frequency range: 42 Hz to 100 kHz (9269-10: 40 Hz to 2 MHz)
- Maximum applied voltage: ±40 V DC
- Maximum applied current: ±2 A DC
- Maximum voltage to earth: ±50 V DC (between L terminal and chassis)
- Compatibility: Can be connected to various HIOKI impedance meters (IM3590, IM3570, IM3533, IM3523, and similar products)
%0AMaximum%20applied%20voltage:%20%C2%B140%20V%20DC%0AMaximum%20applied%20current:%20%C2%B12%20A%20DC%0AMaximum%20voltage%20to%20earth:%20%C2%B150%20V%20DC%20(between%20L%20terminal%20an...
){kind=link}
Upptäck möjligheterna
Mer information
Beskrivning
The 9296-10 is an optional unit designed to be connected between various HIOKI impedance meters (such as the IM3590, IM3570, IM3533, IM3523, and similar devices) and the main test fixture. It allows the application of a DC bias current for specialized testing scenarios. With a measurement frequency range from 42 Hz to 100 kHz, it extends the functionality of impedance meters. Additionally, it supports a maximum applied voltage of ±40 V DC and a maximum current of ±2 A DC, providing flexibility for a variety of test applications.
Dokument
Alternativ
Video
The 9296-10 is an optional unit designed to be connected between various HIOKI impedance meters (such as the IM3590, IM3570, IM3533, IM3523, and similar devices) and the main test fixture. It allows the application of a DC bias current for specialized testing scenarios. With a measurement frequency range from 42 Hz to 100 kHz, it extends the functionality of impedance meters. Additionally, it supports a maximum applied voltage of ±40 V DC and a maximum current of ±2 A DC, providing flexibility for a variety of test applications.
