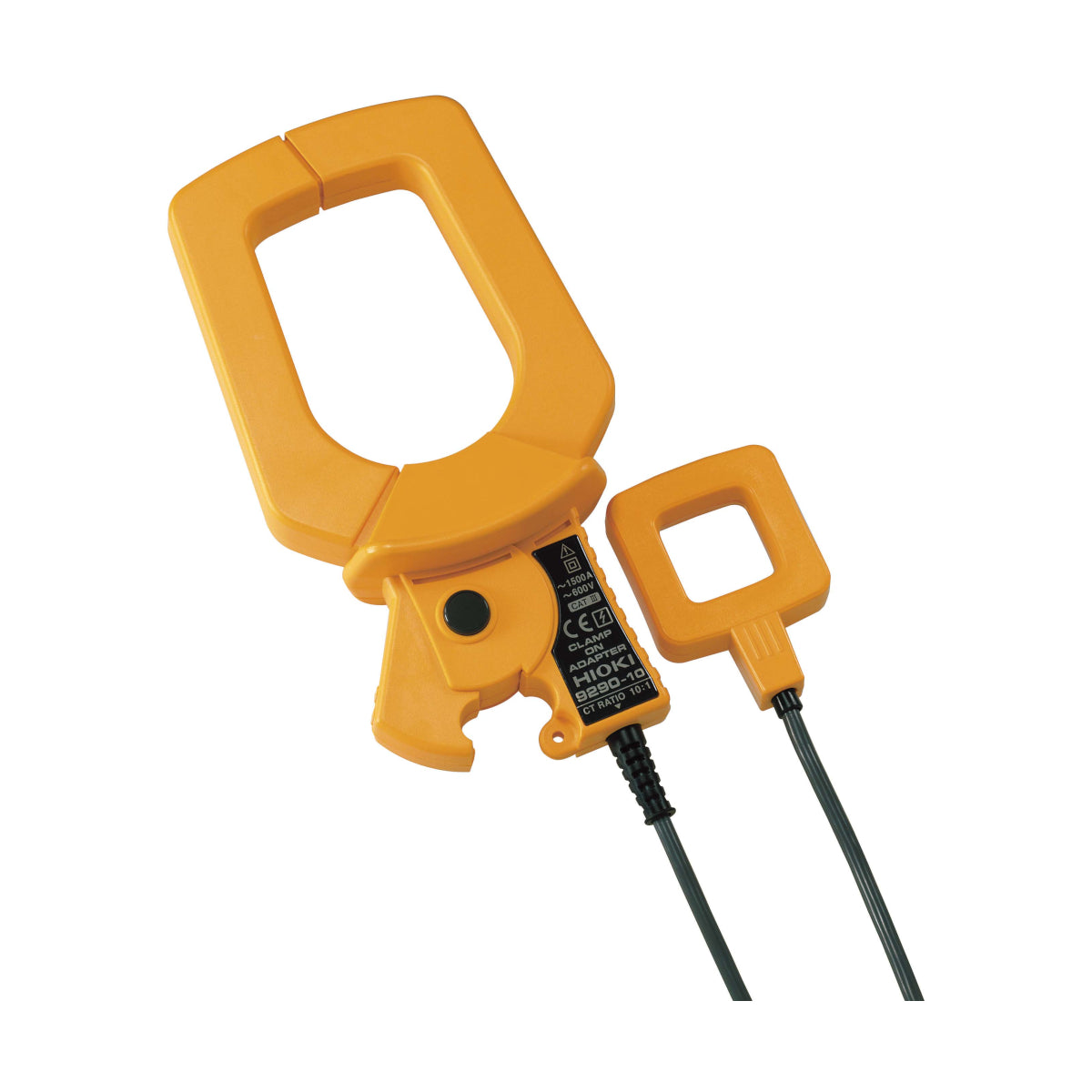

Hioki 9290-10 Clamp On Adapter
Använd vår chatt för personlig support. Eller kontakta oss via +46 73-202 00 59 eller sales@GOmeasure.se
- Rated primary current: 1,000 A AC continuously (1,500 A for 5 minutes)
- CT ratio: 10:1
- Phase accuracy: ±1.0° or less
- Basic accuracy: 1.5%
- Frequency characteristic: 20 Hz to 5 kHz
- Possible core diameters: 55-80 mm x 20 mm
%0ACT%20ratio:%2010:1%0APhase%20accuracy:%20%C2%B11.0%C2%B0%20or%20less%0ABasic%20accuracy:%201.5%25%0AFrequency%20characteristic:%2020%20Hz%20to%205%20kHz%0APossible%20core%20diam...
){kind=link}
Upptäck möjligheterna
Mer information
Beskrivning
The 9290-10 is a clamp-on adapter rated for 1000A AC (1500A AC for 5 minutes) and features a 10:1 CT ratio to expand the measurement range of normal clamp ammeters. In addition to the large clamp diameter, good frequency bandwidth and accurate phase response, the CT reliably provides Hioki clamp on power meters with expanded range and large current measurements.
Dokument
Alternativ
Video
The 9290-10 is a clamp-on adapter rated for 1000A AC (1500A AC for 5 minutes) and features a 10:1 CT ratio to expand the measurement range of normal clamp ammeters. In addition to the large clamp diameter, good frequency bandwidth and accurate phase response, the CT reliably provides Hioki clamp on power meters with expanded range and large current measurements.
