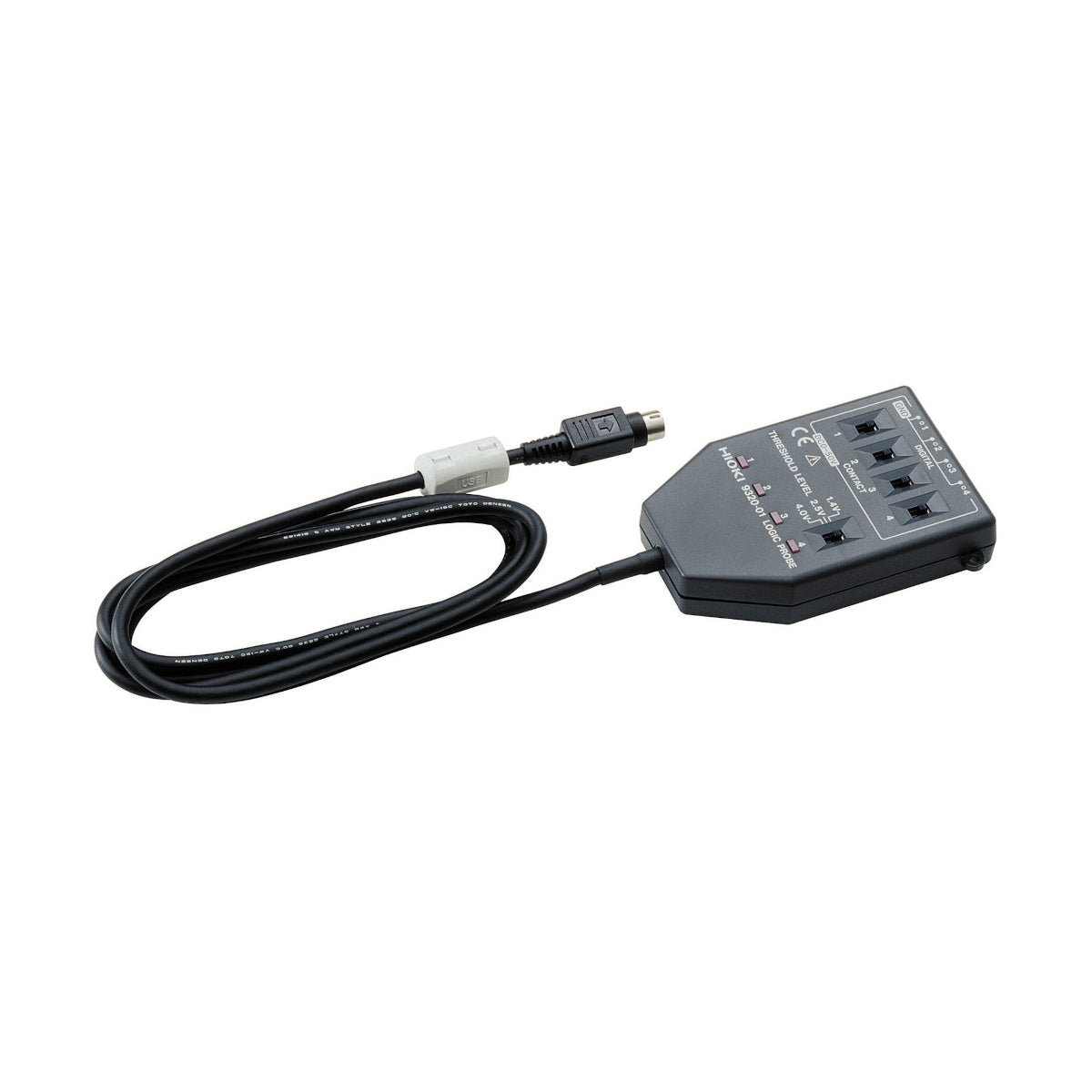

Hioki 9320-01 Logic Probe
Använd vår chatt för personlig support. Eller kontakta oss via +45 31 33 18 19 eller salg@GOmeasure.dk
- Channels: 4 (common ground with the main unit)
- Input Types: Digital/contact, selectable per channel
- Input Resistance: 1 MΩ (0-5V), 500 kΩ (5-50V)
- Threshold: 1.4V, 2.5V, 4.0V
- Detectable Pulse Width: 500 ns or longer
- Max Allowable Input: 50 V DC
- Dimensions: 62 mm (W) × 94 mm (H) × 20 mm (D)
- Weight: 150 g
%0AInput%20Types:%20Digital/contact,%20selectable%20per%20channel%0AInput%20Resistance:%201%20M%CE%A9%20(0-5V),%20500%20k%CE%A9%20(5-50V)%0AThreshold:%201.4V,%202.5V,%204.0V%0ADetectable%20Pulse%20Width...
){kind=link}
Upptäck möjligheterna
Mer information
Beskrivning
The Hioki 9320-01 Logic Probe is a versatile accessory designed for Memory recorder. It features 4 input channels, enabling both digital and contact signal detection. The probe allows for switching between input types per channel, making it suitable for a wide range of applications such as relay timing measurements and circuit analysis.
Dokument
Alternativ
Video
The Hioki 9320-01 Logic Probe is a versatile accessory designed for Memory recorder. It features 4 input channels, enabling both digital and contact signal detection. The probe allows for switching between input types per channel, making it suitable for a wide range of applications such as relay timing measurements and circuit analysis.
