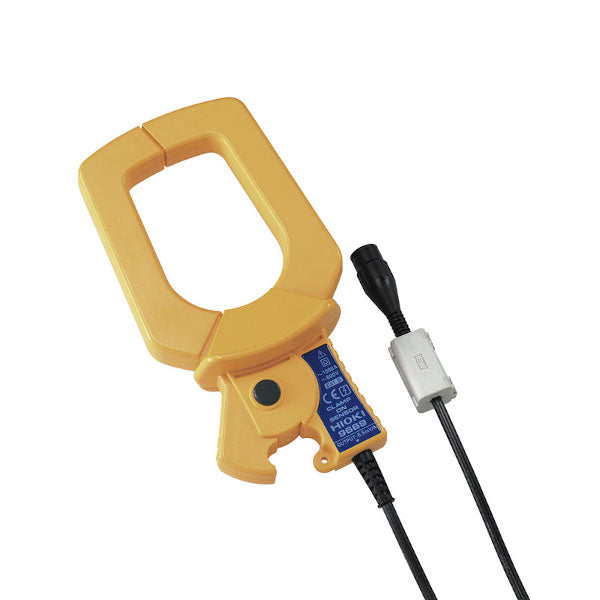

Hioki 9669 Current Sensor
5,309 incl. VAT
Använd vår chatt för personlig support. Eller kontakta oss via +45 31 33 18 19 eller salg@GOmeasure.dk
Hioki current sensors are best-in-class devices for use with power meters, and PQAs. The 9669 is 1000A AC clamp sensors with voltage output for measuring load current. CAT III 600V
Upptäck möjligheterna
Mer information
Beskrivning
Hioki 9669 Current Sensor
Hioki current sensors are best-in-class devices for use with power meters, and PQAs. The 9669 is 1000A AC clamp sensors with voltage output for measuring load current. CAT III 600V
Key Features
• For inverter devices or commercial power lines
• Measure up to 1000 A
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Rated measurement current | 1000 A AC |
|---|---|
| Max. measurement current | Continuous 1000 A (45 to 66 Hz) |
| Output rate | 0.5 mV AC/ A |
| Amplitude accuracy (45 to 66 Hz) | ±1.0% rdg. ±0.01% f.s. |
| Phase accuracy | ±1° (45 Hz to 5 kHz) |
| Amplitude frequency characteristics | Within ±2% at 40 Hz - 5 kHz (deviation from accuracy) |
| Max. rated voltage to earth | 600 V AC rms or less |
| Measurable conductor diameter | φ 55 mm (2.17 in) or less80 × 20 mm, Buss bars |
| Operating temperature and humidity | 0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation) |
| Dustproofness and waterproofness | N/A |
| Dimensions and mass | 99.5 mm (3.92 in)W × 188 mm (7.40 in)H × 42 mm (1.65 in)D, 590 g (20.8 oz)Cord length 3 m (9.84 ft), Output terminal: BNC |
