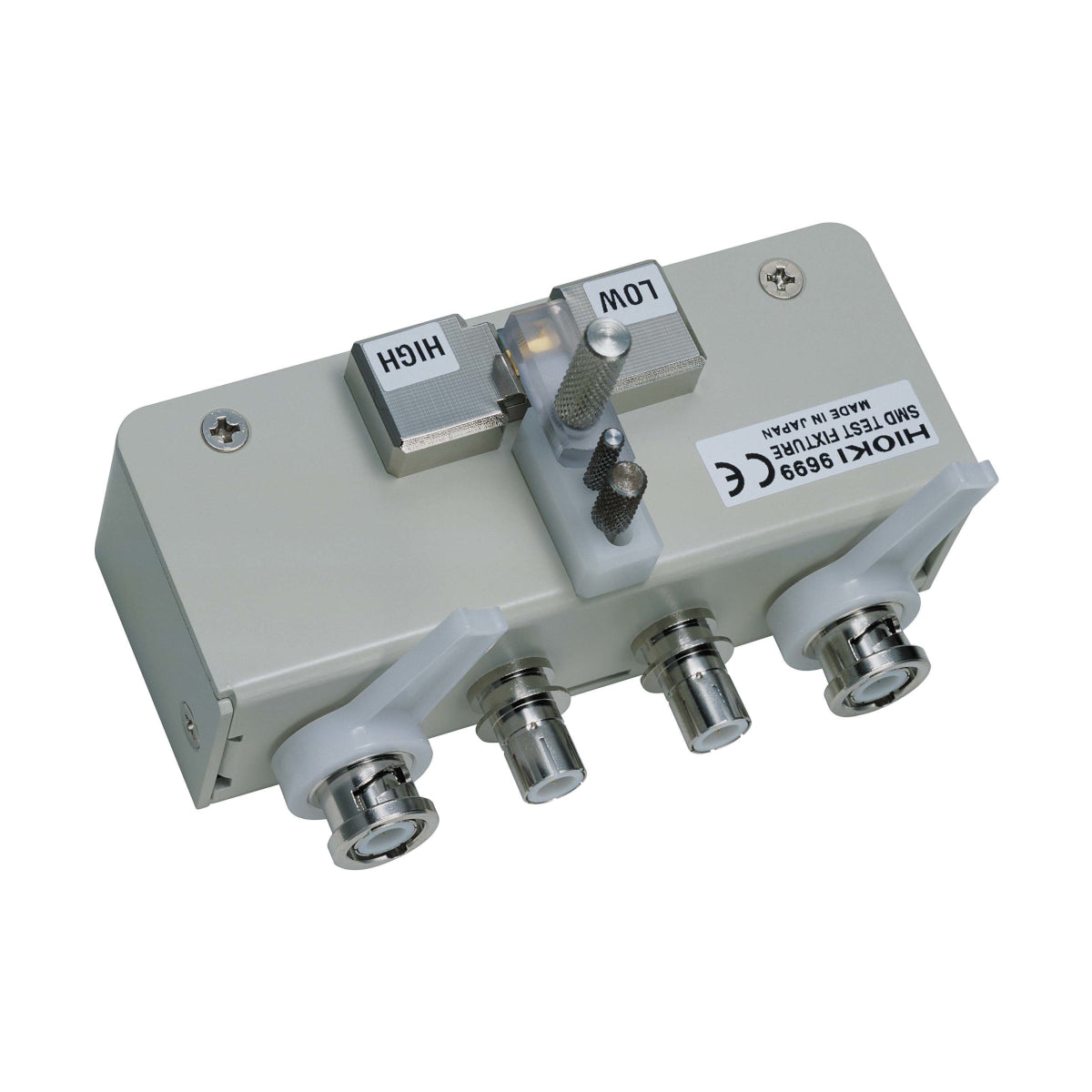

Hioki 9699 SMD Test Fixture
Använd vår chatt för personlig support. Eller kontakta oss via +45 31 33 18 19 eller salg@GOmeasure.dk
- Fixture type: Direct connection
- DUT size: 1 mm to 4 mm
- DUT height: 1.5 mm or less
- Test frequency range: DC to 120 MHz
- Compatible with: IM3590, IM3533, IM3523, and related devices
Upptäck möjligheterna
Mer information
Beskrivning
The 9699 is a direct connection test fixture designed for measuring SMD components with a DUT (Device Under Test) size ranging from 1 mm to 4 mm and a height of 1.5 mm or less. It operates over a wide test frequency range from DC to 120 MHz, making it ideal for high-frequency component testing. The 9699 is compatible with HIOKI devices such as the IM3590, IM3533, IM3523, and related instruments, ensuring precise and reliable measurements for SMD components.
Dokument
Alternativ
Video
The 9699 is a direct connection test fixture designed for measuring SMD components with a DUT (Device Under Test) size ranging from 1 mm to 4 mm and a height of 1.5 mm or less. It operates over a wide test frequency range from DC to 120 MHz, making it ideal for high-frequency component testing. The 9699 is compatible with HIOKI devices such as the IM3590, IM3533, IM3523, and related instruments, ensuring precise and reliable measurements for SMD components.
