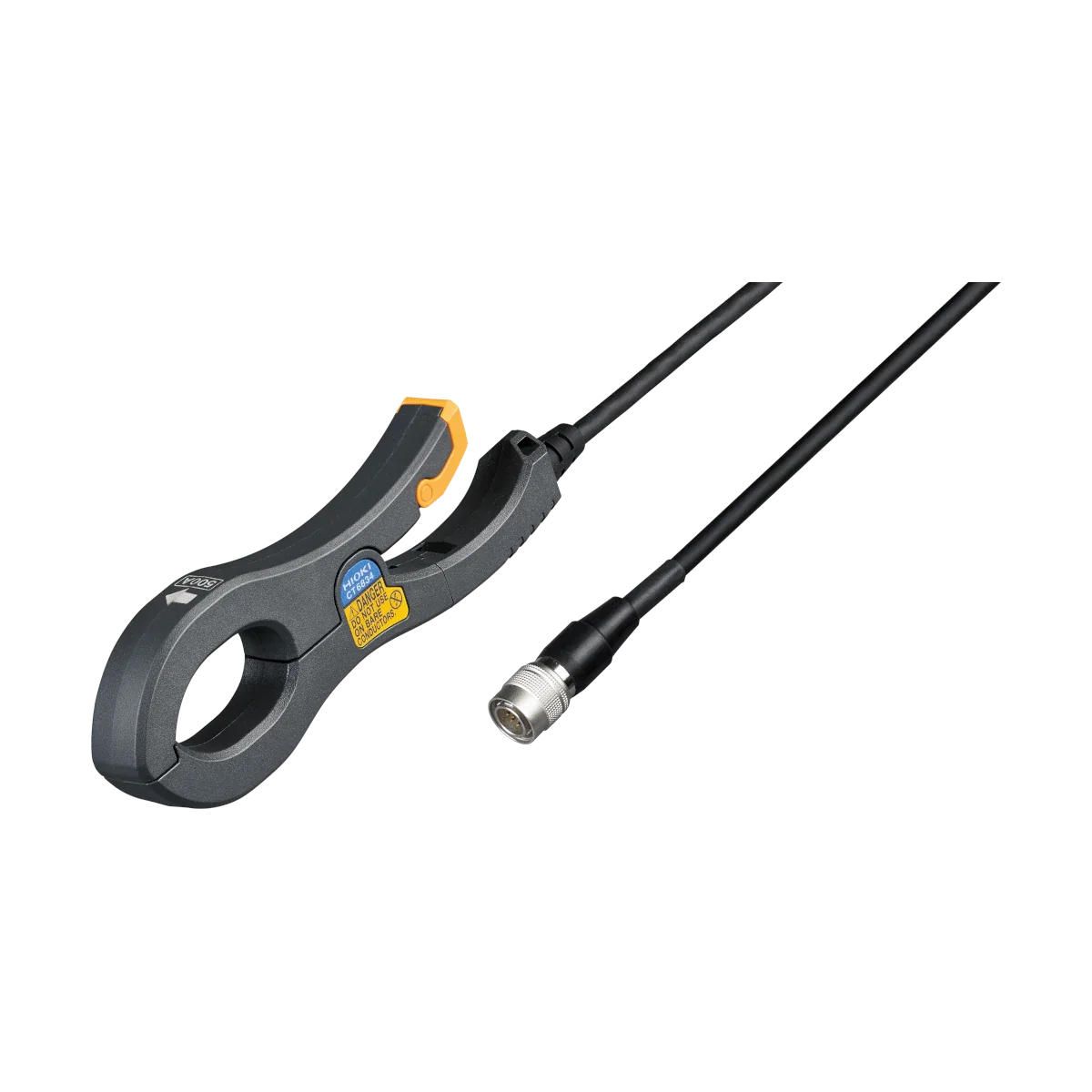

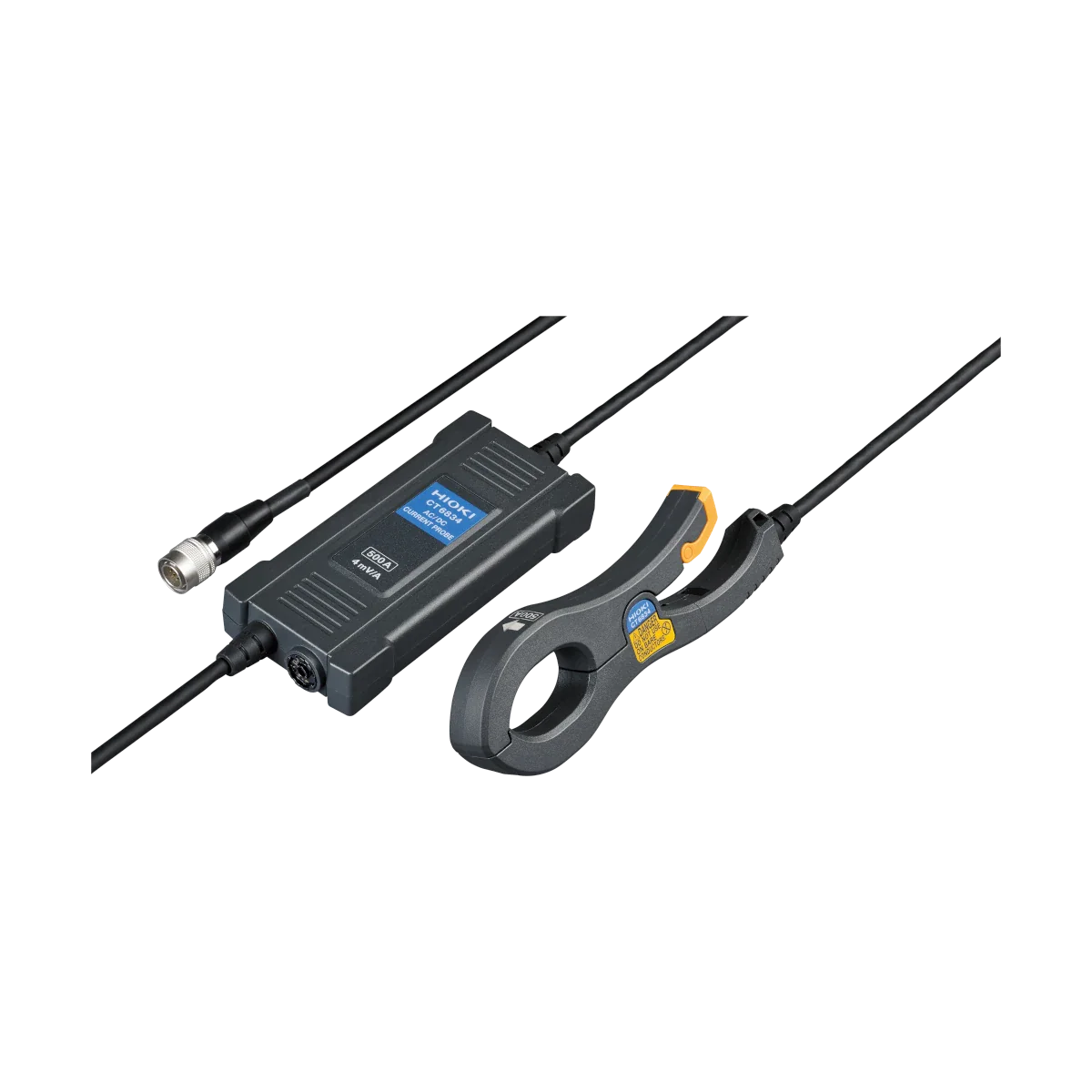

Hioki CT6834 AC/DC Current Probe
Använd vår chatt för personlig support. Eller kontakta oss via +46 73-202 00 59 eller sales@GOmeasure.se
- 500 A AC/DC, Output cable length 5 m
- Slim Clamp Design, Measure AC/DC Current with High Accuracy, For Vehicle Power Testing
Upptäck möjligheterna
Mer information
Beskrivning
The AC/DC Current Probe CT6834 features a 50% smaller size while delivering precise and reliable performance across a wide temperature range. Perfect for automotive testing, it simplifies installation in tight spaces, enhances measurement accuracy, and improves testing efficiency. Experience innovation that saves time and increases accuracy!
Key Features
- Rated current: 500 A AC/DC, Frequency bandwidth: DC to 50 kHz
- Measurement accuracy DC: ±0.07% rdg. ±0.01% f.s.
- Operating temp range: −40°C to 85°C, perfect for vehicle testing
- Core diameter: φ20 mm
- Choose from 5 m/10 m cable length
- Guaranteed combined accuracy when used with Hioki Power Analyzers
- Plug-and-play with Hioki Power Analyzer and Memory HiCorders
Ideal for Vehicle Fuel & Energy Efficiency Testing—Compliant with International Standard WLTP
Current probes for automotive certification testing
The CT6833 and CT6834 offer industry-leading DC accuracy of ±0.07% rdg., meeting stringent standards such as WLTP and SAE J1634.
The current sensor minimizes the impact of conductor position, ensuring stable and reliable data under various connection conditions.
Wide Temperature Range & Durability
Operating temperature range: −40°C to 85°C
The CT6834 can measure AC/DC currents rated up to 500 A rms.
With an operating temperature range from −40°C to 85°C, it delivers exceptional temperature stability and low drift, enabling accurate measurements even in demanding temperature conditions for vehicle testing.
Unrivaled Sensing Technology
| Model | Rated current | Frequency bandwidth | Clamp conductor diameter | For more details |
| CT6833 | 200 A AC/DC | DC to 50 kHz | φ20 mm | Click here |
| CT6834 | 500 A AC/DC | DC to 50 kHz | φ20 mm | Click here |
| CT6830 (*1) | 2 A AC/DC | DC to 100 kHz | φ5 mm | Click here |
| CT6831 (*1) | 20 A AC/DC | DC to 100 kHz | φ5 mm | Click here |
| CT7812 (*2) | 2 A AC/DC | DC to 100 kHz | φ5 mm | Click here |
| CT7822 (*2) | 20 A AC/DC | DC to 100 kHz | φ5 mm | Click here |
*1:For accuracy power analyzer
*2:For accuracy data logger
External Power Units (Compatible with Various Measurement Instruments)
These external power units supply power to current sensors and enable connection to a wide range of measurement instruments, including power analyzers, recorders, and oscilloscopes*.
Single-channel and four-channel models are available to support different measurement setups.
*Connect to instruments with an input impedance of 1 MΩ or higher.
