Hioki FT9847 Signal Induction Clamp
Använd vår chatt för personlig support. Eller kontakta oss via +45 31 33 18 19 eller salg@GOmeasure.dk
- Maximum input current: 1000 A (1 minute, 45 Hz to 128 Hz)
- Rated current: 50 A (45 Hz to 128 Hz)
- Measurable conductor diameter: 52 mm or less
- Cable length: 2 m
- Operating temperature: −25°C to 65°C
- Dust and water resistance: IP40 (storage condition)
- Safety category: CAT III 600 V / CAT IV 300 V
- Connector: 4 mm banana plug
%0ARated%20current:%2050%20A%20(45%20Hz%20to%20128%20Hz)%0AMeasurable%20conductor%20diameter:%2052%20mm%20or%20less%0ACable%20length:%202%20m%0AOperating%20temperature:%20%E2%88%9225%C2%B0C%20to%2065%C2%B0C%0A...
){kind=link}
Upptäck möjligheterna
Mer information
Beskrivning

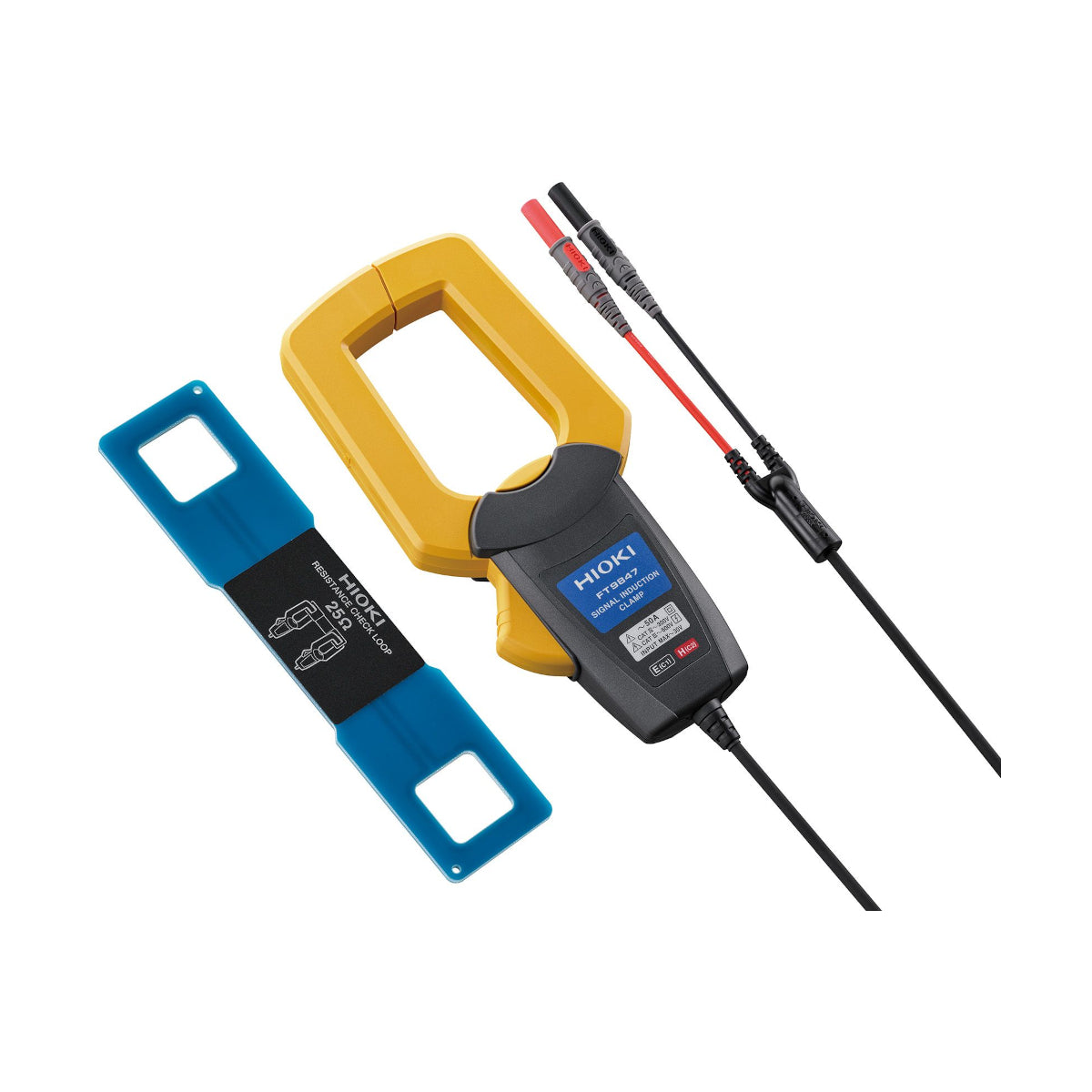

The Hioki FT9847 Signal Induction Clamp is a key accessory for the FT6041 Earth Tester, designed to inject measurement signals during two-clamp earth resistance tests. This clamp ensures efficient and accurate measurements when used with the FT6041. It supports signal injection through conductors up to 52 mm in diameter or busbars with dimensions of 78 mm × 20 mm. With a maximum input current of 1000 A (for 1 minute) and a rated current of 50 A, it is ideal for precise signal injection in field testing. Built for tough conditions, it operates in temperatures from −25°C to 65°C and offers IP40 protection during storage.
Dokument
Alternativ
Video
The Hioki FT9847 Signal Induction Clamp is a key accessory for the FT6041 Earth Tester, designed to inject measurement signals during two-clamp earth resistance tests. This clamp ensures efficient and accurate measurements when used with the FT6041. It supports signal injection through conductors up to 52 mm in diameter or busbars with dimensions of 78 mm × 20 mm. With a maximum input current of 1000 A (for 1 minute) and a rated current of 50 A, it is ideal for precise signal injection in field testing. Built for tough conditions, it operates in temperatures from −25°C to 65°C and offers IP40 protection during storage.
