Hioki IM3536 LCR Meter
Använd vår chatt för personlig support. Eller kontakta oss via +45 31 33 18 19 eller salg@GOmeasure.dk
General-Purpose LCR Meters with Measurement Frequency from DC, 4 Hz to 8 MHz
Upptäck möjligheterna
Mer information
Beskrivning

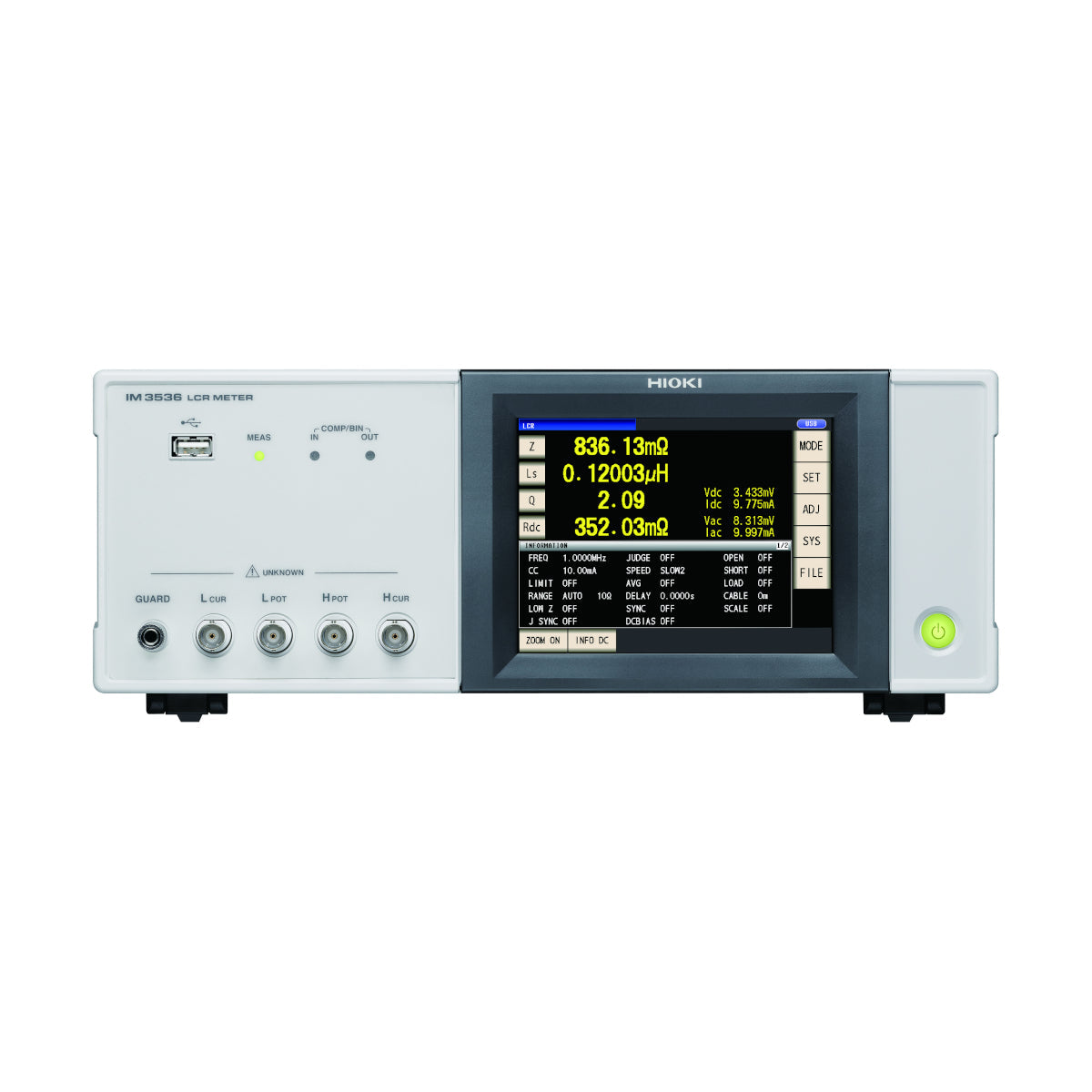

Hioki IM3536 LCR Meter
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM3536 raises the industry standard for general-purpose LCR meters by offering a wide DC and 4Hz to 8MHz (up to 10MHz special order available) testing frequency while delivering 0.05% accuracy, ideal for evaluating the characteristics of next generation electronic components, including power supply inductors thanks to the instrument’s maximum measurement frequency of 8MHz. (up to 10MHz special order available)
Key Features
- DC, 4 Hz to 8 MHz measurement frequency
- High-speed measurement of 1 ms (fastest time)
- High-precision measurement of ±0.05% rdg. (representative value)
- Guaranteed accuracy range from 1 mΩ, low-impedance measurement with unmatched repeatability
- DC bias function: Measure under conditions simulating actual use or in accordance with industry standards
- Exceptional specifications and cost-performance for a wide range of applications, from R&D to production lines
*1: Can be customized up to 10 MHz (special order available). Please contact your authorized Hioki distributor or reseller for more information.
