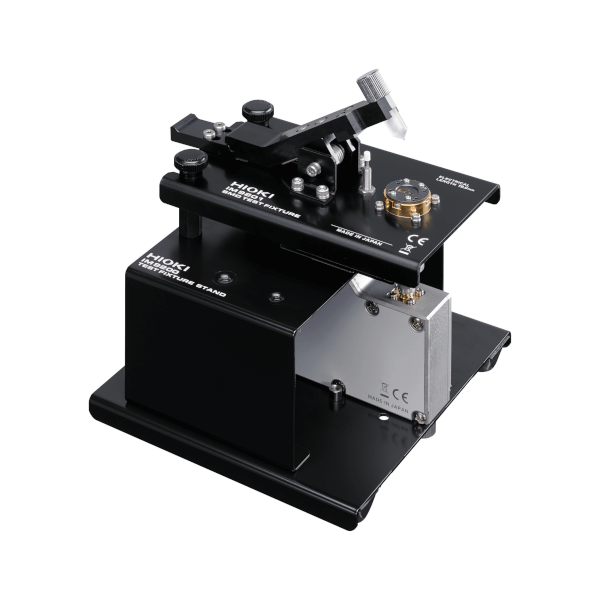

Hioki IM9201 SMD Test Fixture
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM9201 is a high frequency SMD test fixture for the IM7580 series impedance analyzers that delivers ultimate flexibility by supporting 6 different SMD package sizes.
Key Features
• SMD TEST FIXTURE exclusively for the IM7580 series
• 2 device guides let you measure 6 different SMD sizes
• Definitive 3GHz high frequency analysis made easy
• Supports SMD sizes (EIA) 0201, 0402, 0603, 0805, 1206, and 1210
| Frequency range | DC to 3 GHz |
|---|---|
| Dimensions of measurable DUT | 0201, 0402, 0603, 0805, 1206, 1210 (EIA) |
| Electrode structure | 2-terminal connection to bottom electrodes |
| Maximum voltage | ±42 Vpeak (AC+DC) |
| Additional error | Impedance: ±Ze [%]Phase: θe = ±0.58 × Ze [° ]Ze = Ae + (Zse / Zx + Yoe × Zx) × 100Zx: Impedance measurement value [Ω]Ae: 4 × f² [%]Zse: (100 + 500 × f) / 1000 [Ω]Yoe: (10 + 100 × f) / 1000000 [S]f [GHz] |
| Supported units | IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587 |
| Accessories | Short plate (5 types), GND plate (2 types), Device guide (2 types), Hexagon socket head bolts ×8, Tip pin (2 types), Knob ×1, Brush for cleaning ×1, Hex driver ×1, Carrying case ×1, Instruction Manual ×1 |
