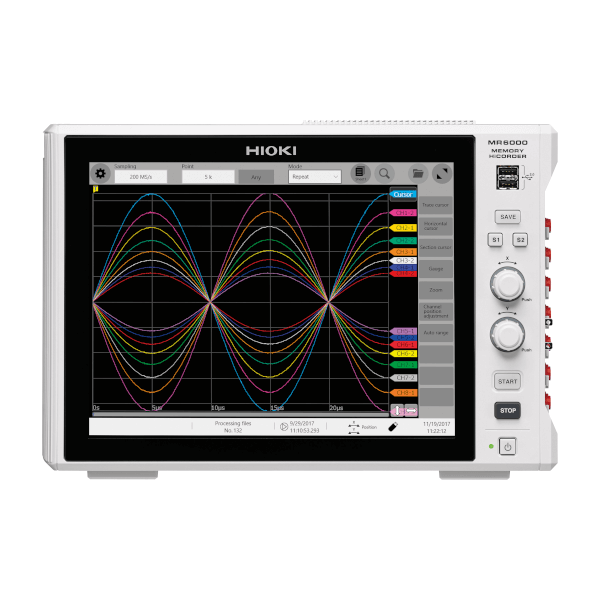

Hioki MR6000 Memory HiCorder
Använd vår chatt för personlig support. Eller kontakta oss via +45 31 33 18 19 eller salg@GOmeasure.dk
- Highest Measurement Capabilities and Fastest Transfer Rate in History
- Main unit only, input modules up to 8 units
Upptäck möjligheterna
Mer information
Beskrivning
The Hioki MR6000 overcomes all barriers to reach new ground and meet challenges that are yet to be seen. World class specifications, operability and design - Hioki’s newest memory recorder has been re-engineered from top to bottom, delivering unprecedented performance that will change how you look at waveform recording.
Key Features
• Work efficiently and intuitively using the MR6000’s large touch panel
• Capture momentary phenomena by performing isolation measurement at up to 200 MS/s (when using the High Speed Analog Unit U8976)
• Enjoy a stress-free user experience thanks to dramatically faster saving of data
• Save data in real time while measurement continues.
• Take advantage of new functionality added by the latest firmware update (April 2020)
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| MR6000 | MR6000-01 | |
| Additional function | N/A | Real-time waveform calculation, Digital Filter calculation |
| Number of input units | Max. 8 units | |
| Number of channels | Max. 32 analog channels (when using the U8975), or 128 logic channels (when using the 8973) | |
| Measurement ranges (20 div full-scale) | 10 mV to 400 V f.s., 12 ranges (when using the U8976), Resolution : 1/1600 of range 4 V to 200 V f.s., 6 ranges (when using the U8975), Resolution : 1/32000 of range | |
| Max. allowable input | 400 V DC (when using the U8976), 200 V DC (when using the U8975) | |
| Frequency characteristics | DC to 30 MHz (when using the U8976), DC to 2 MHz (when using the U8975) | |
| Max. sampling rate | 200 MS/s, all channnels simultaneously (when using the U8976) External sampling: 10 MS/s | |
| Recording methods | Normal: Normal waveform recording Envelope: Record maximum and minimum values every fixed period | |
| Storage memory capacity | 1 G-words | |
| Removable storage | SD memory card ×1, USB memory ×7, SSD/HDD (built in the main unit) ×1 FTP transmission (to LAN-connected computer) *Use only Storage Media sold by HIOKI. | |
| Display | 12.1 inch XGA-TFT color LCD (1024 × 768 dots) | |
| External interfaces | LAN, USB, SD, SATA, Monitor output | |
| Power supply | 100 to 240 V AC (50/60 Hz) (300 VA max.) | |
| Dimensions and mass | 353 mm (13.9 in)W × 235 mm (9.25 in)H × 154.8 mm (6.09 in)D, 6.5 kg (229.3 oz) (main unit only) | |
| Accessories | Power cord ×1, Quick start manual ×1, Precautions conserning use ×1, Application disk (CD-R) ×1, Instruction manual (CD-R, detail and calculation) ×1 , Blank panel (for blank slots only) | |
Dokument
Datasheet:
Alternativ
Model No. (Order Code)
| MR6000 | Main unit only, input modules up to 8 units |
|---|---|
| MR6000-01 | Built-in real-time waveform calculation and other functionality |
Note: Main unit MR6000/MR6000-01 cannot operate alone. You must install one or more optional input modules in the unit.
