Hioki PD3129 Phase Detector
Använd vår chatt för personlig support. Eller kontakta oss via +45 31 33 18 19 eller salg@GOmeasure.dk
- Voltage Range: 70 to 600 V AC (continuous sine wave)
- Frequency Range: 45 Hz to 66 Hz
- Conductor Size: 2.4 mm (0.09 in) to 17 mm (0.67 in) insulated wiring
- Phase Indication: o Positive phase: LEDs light in clockwise order, buzzer sounds intermittently, green arrow lights up o Negative phase: LEDs light in counterclockwise order, buzzer sounds continuously
- Functions: Live line check, battery check function
- Power Supply: R6P manganese battery × 2
- Operating Time: 5 hours
- Dimensions: 70 × 75 × 30 mm (2.76 × 2.95 × 1.18 in)
- Cable Length: 70 cm (2.30 ft)
- Weight: 200 g (7.1 oz)
- Safety Category: CAT IV 600 V
%0AFrequency%20Range:%2045%20Hz%20to%2066%20Hz%0AConductor%20Size:%202.4%20mm%20(0.09%20in)%20to%2017%20mm%20(0.67%20in)%20insulated%20wiring%0APhase%20Indication:%20o%20Positive%20phase:%20LEDs%20l...
){kind=link}
Upptäck möjligheterna
Mer information
Beskrivning

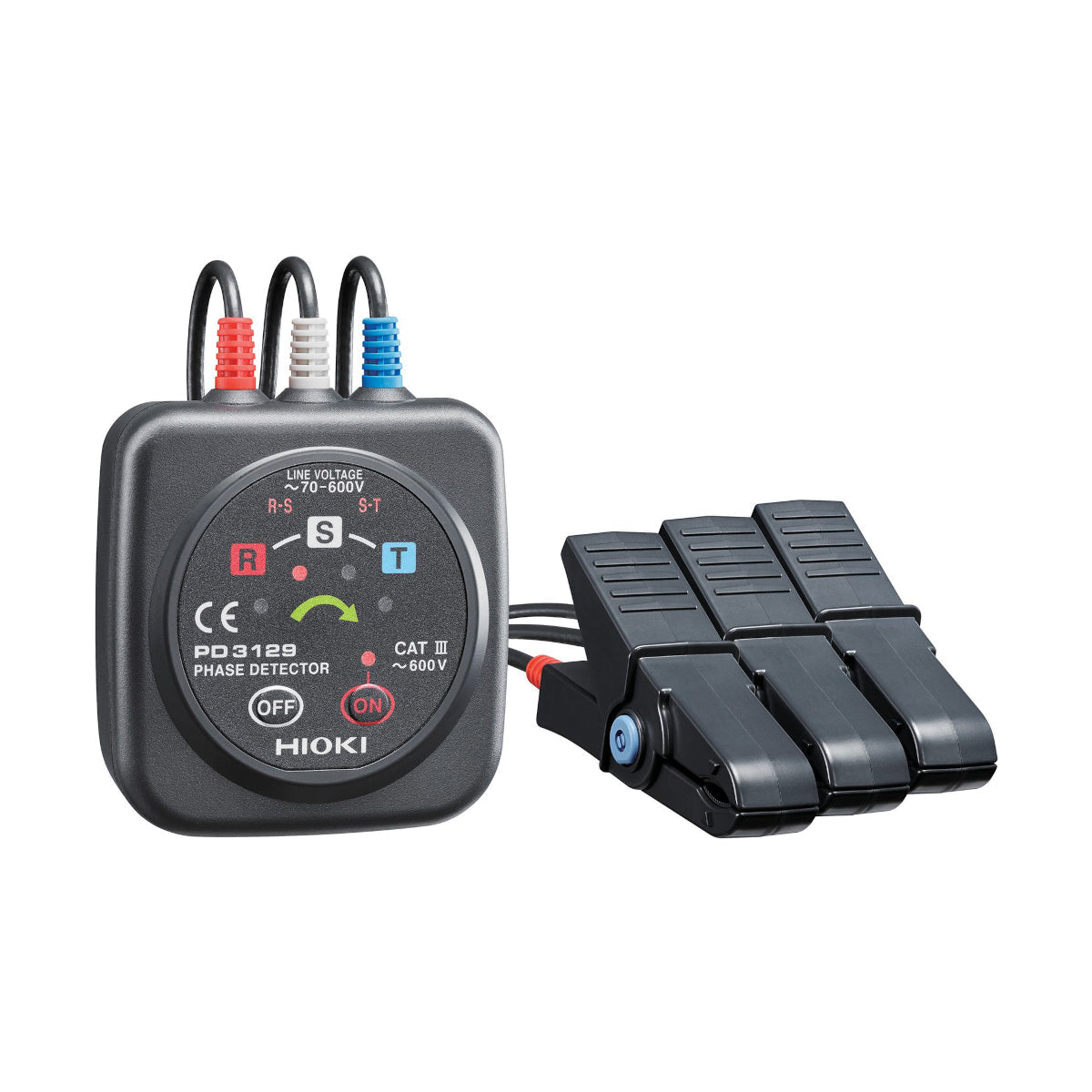

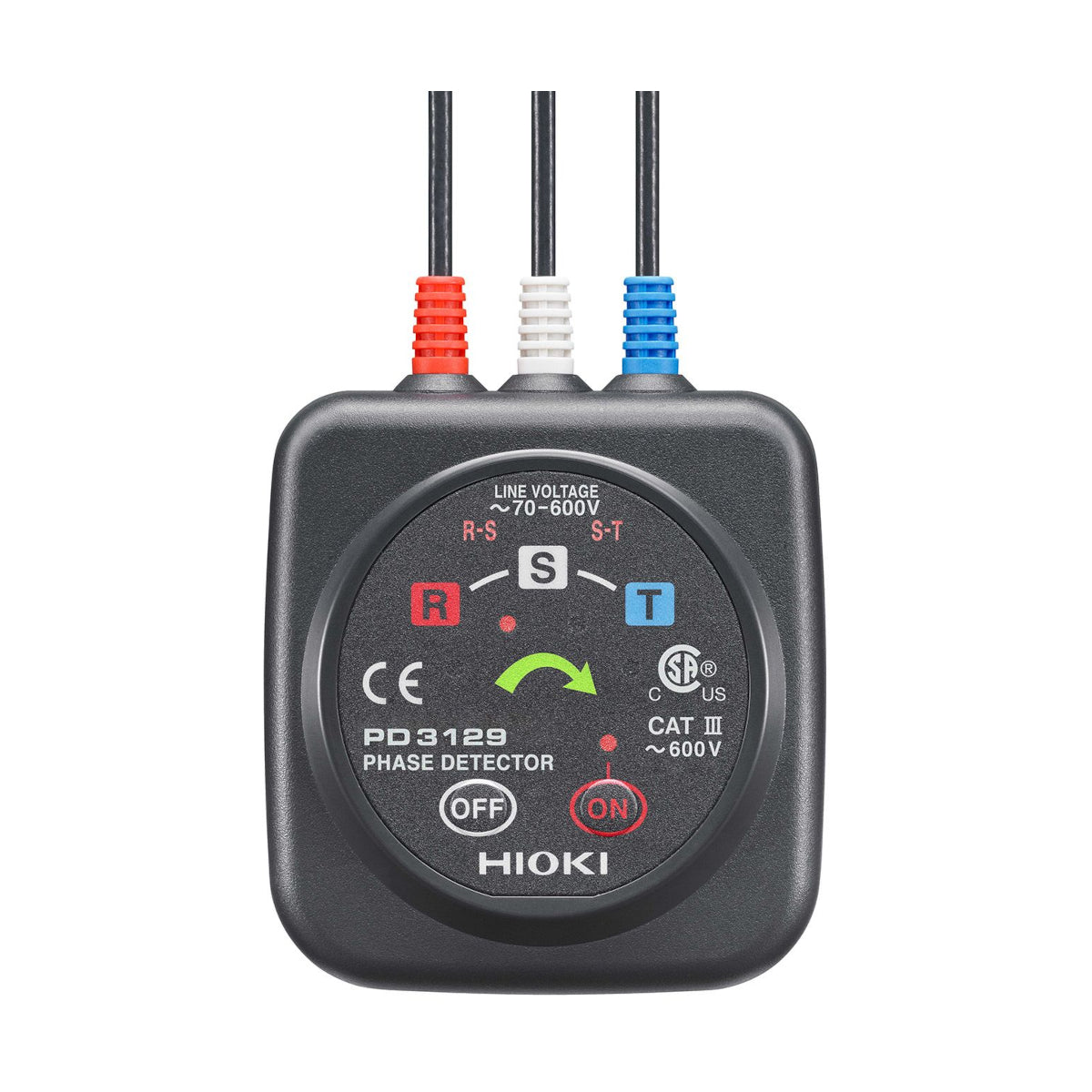

The PD3129 is a phase detector designed for safe, non-contact phase detection on thin conductors. It handles voltages up to 600 V AC and features clear LED indications for positive and negative phase detection. This compact and lightweight device offers reliable live line checks, making it ideal for a variety of environments.
Dokument
Alternativ
Video
The PD3129 is a phase detector designed for safe, non-contact phase detection on thin conductors. It handles voltages up to 600 V AC and features clear LED indications for positive and negative phase detection. This compact and lightweight device offers reliable live line checks, making it ideal for a variety of environments.
