Hioki ST4200 Partial Discharge Detector
Använd vår chatt för personlig support. Eller kontakta oss via +46 73-202 00 59 eller sales@GOmeasure.se

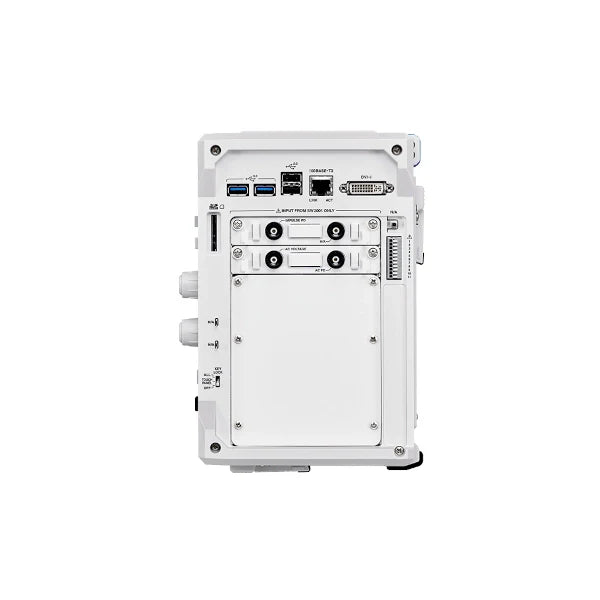

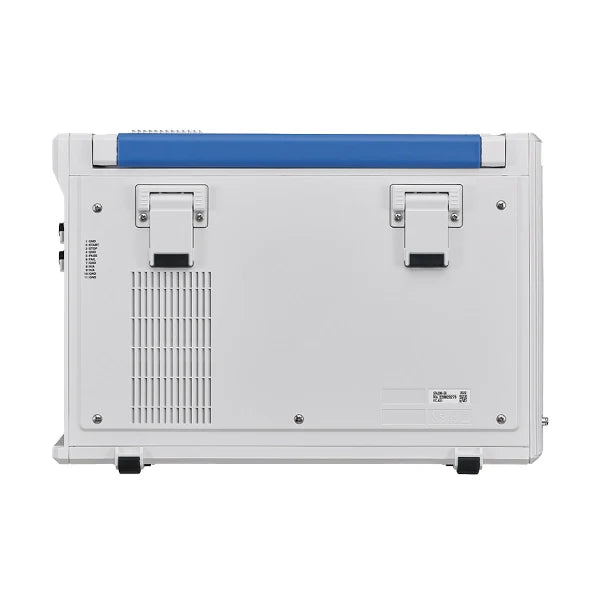

Hioki ST4200 Partial Discharge Detector offers comprehensive partial discharge (PD) detection. It also enables seamless system integration for motor production testing when paired with the SW2001 High Voltage Multiplexer. Furthermore, the ST4200's PD detection uses high-frequency CTs which mitigate noise interference common to production lines. Such noise on production lines make PD detection using a microwave antenna often difficult, and at times, nearly impossible.
%20detection.%20It%20also%20enables%20seamless%20system%20integration%20for%20motor%20production%20testing%20when%20paired%20with%20the%20SW2001%20H...
){kind=link}
Upptäck möjligheterna
Mer information
Beskrivning
The ST4030A is an impulse winding tester, or surge tester, that combines the functions of both a resistance meter and insulation-withstand testing required for electric motor winding manufacturers to improve quality. Meet the needs of more reliable motor windings in light of the increasing use of electric vehicles and self-driving technology.
How to Use the Hioki Impulse Winding Tester ST4030A
The ST4030A detects the existence of layer shorts between coil windings, defects that are found in motor inductors. By using a master waveform taken from a reference coil after applying an impulse voltage, and comparing it to the measured waveform across a specific interval of the coil under test, the resulting area difference can help determine pass or fail easily and accurately. In addition, quantification of response waveforms, a new method developed by Hioki, lets you detect even single-turn faults by using a pass/fail distribution plot
Key Features
- Identify previously undetectable defects
- Detect waveforms with high precision (200 MHz high speed sampling × high 12-bit resolution)
- Identify single-fault turns via quantification of response waveforms into LC and RC values
- Diagnose defective insulation (pseudo-shorts) between motor windings by testing for microscopic partial discharges hidden in noise (option)
Dokument
Hioki ST4030A Impulse Winding Tester
Hioki ST4030A DatasheetAlternativ
Model No. (Order Code)
| ST4030A |
|---|
Note: The Discharge Detection Upgrade ST9000 is a factory option for the Impulse Winding Tester ST4030. Please specify at time of order.
Video
The ST4030A is an impulse winding tester, or surge tester, that combines the functions of both a resistance meter and insulation-withstand testing required for electric motor winding manufacturers to improve quality. Meet the needs of more reliable motor windings in light of the increasing use of electric vehicles and self-driving technology.
How to Use the Hioki Impulse Winding Tester ST4030A
The ST4030A detects the existence of layer shorts between coil windings, defects that are found in motor inductors. By using a master waveform taken from a reference coil after applying an impulse voltage, and comparing it to the measured waveform across a specific interval of the coil under test, the resulting area difference can help determine pass or fail easily and accurately. In addition, quantification of response waveforms, a new method developed by Hioki, lets you detect even single-turn faults by using a pass/fail distribution plot
Key Features
- Identify previously undetectable defects
- Detect waveforms with high precision (200 MHz high speed sampling × high 12-bit resolution)
- Identify single-fault turns via quantification of response waveforms into LC and RC values
- Diagnose defective insulation (pseudo-shorts) between motor windings by testing for microscopic partial discharges hidden in noise (option)
Hioki ST4030A Impulse Winding Tester
Hioki ST4030A DatasheetModel No. (Order Code)
| ST4030A |
|---|
Note: The Discharge Detection Upgrade ST9000 is a factory option for the Impulse Winding Tester ST4030. Please specify at time of order.
