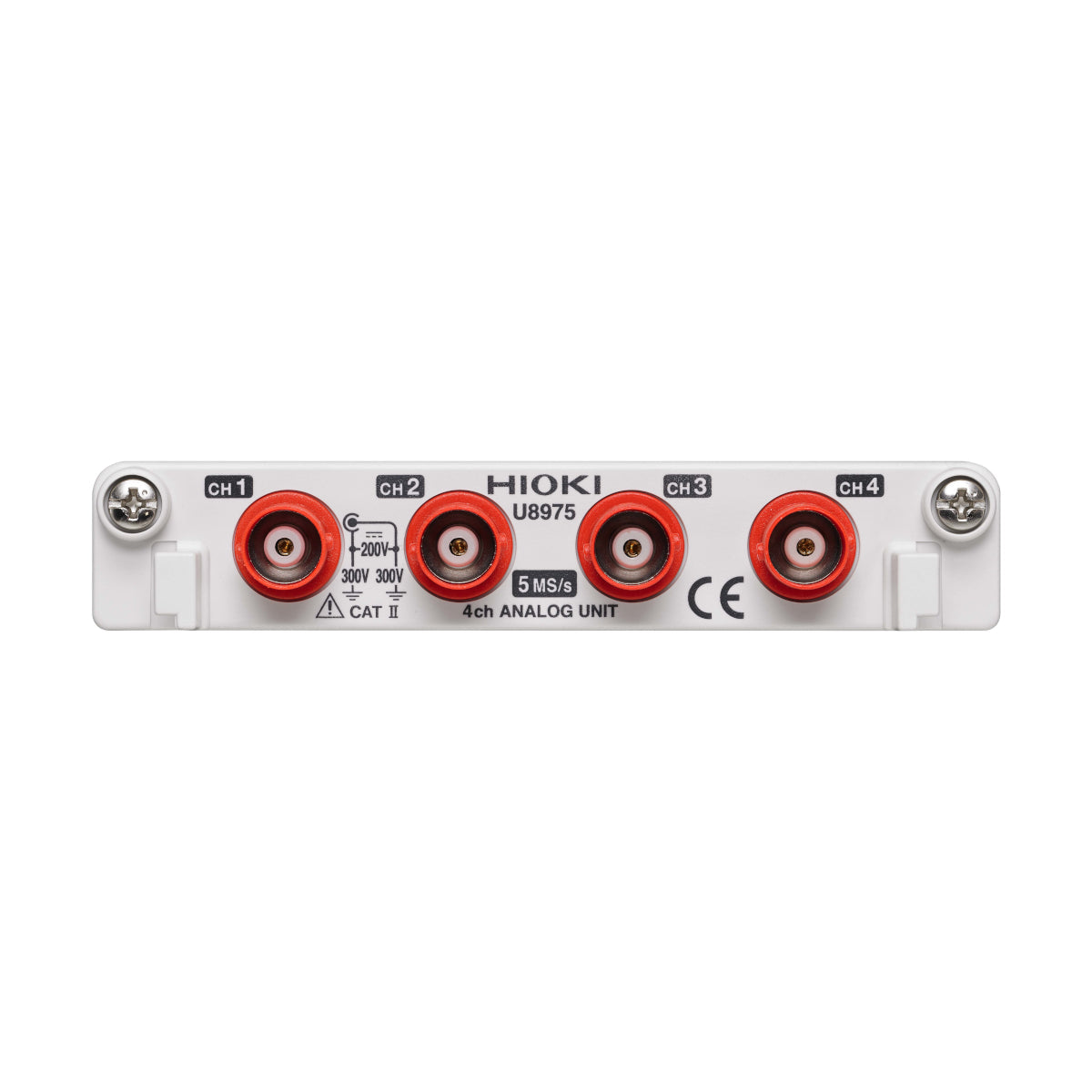

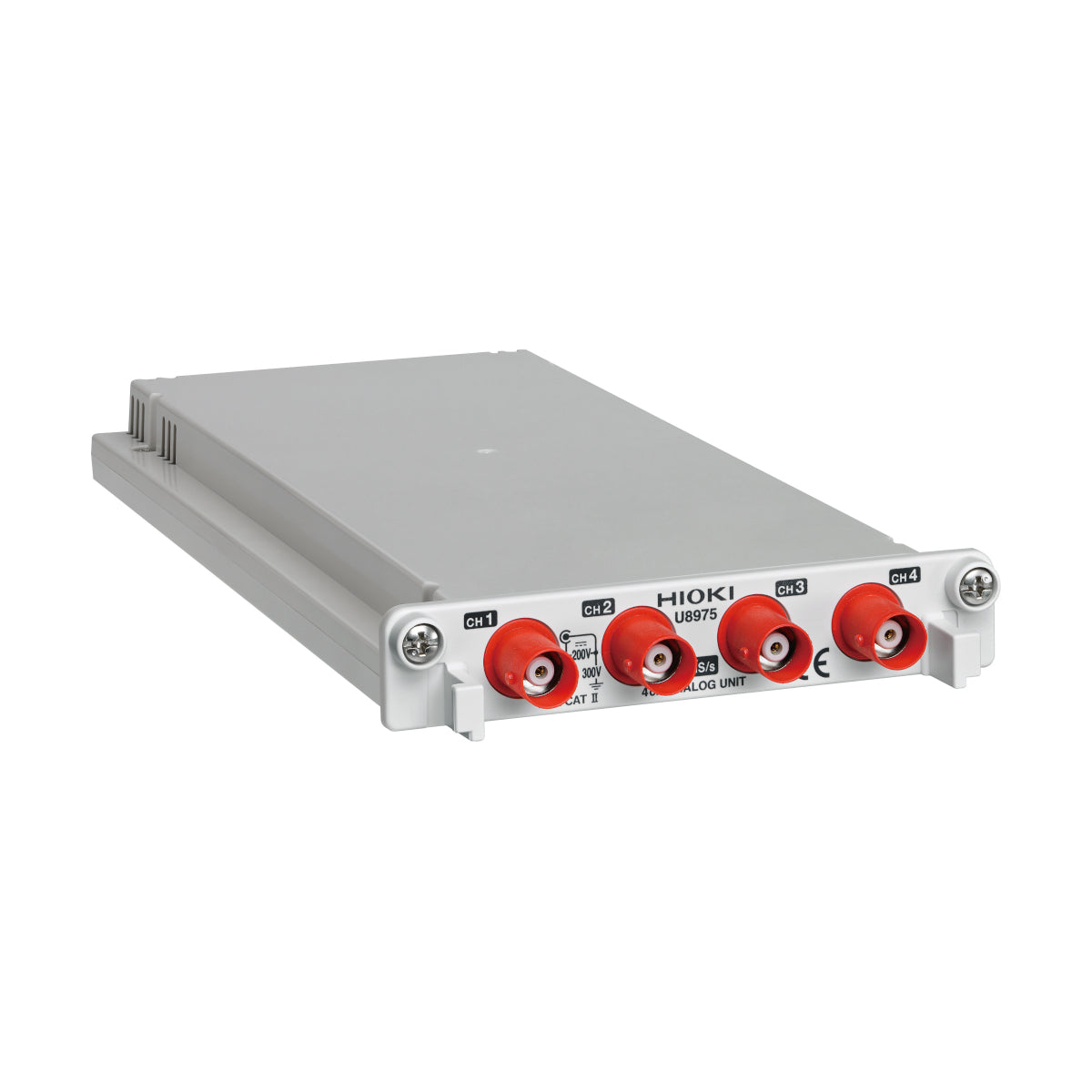

Hioki U8975 4ch Analog Unit
Använd vår chatt för personlig support. Eller kontakta oss via +45 31 33 18 19 eller salg@GOmeasure.dk
High speed 5 MS/s, isolated 4 channel input
Upptäck möjligheterna
Mer information
Beskrivning
Key Features
- High speed sampling of 5 MS/s ensures catching high speed phenomena
- Isolated 4 channel input
- Max. rated voltage to ground: 300 V AC or DC (CAT II)
- High resolution measurement with 16 bit A/D
- For Memory HiCorder MR6000, MR6000-01, MR8740T and MR8847A （ver. 2.00 or later)
Simultaneous measurement of multiple channels
- The MR6000 can simultaneously measure up to 32 channels, while the MR8740T can measure up to 108 channels at a time.
- The U8975 accepts direct input of up to 200 V DC across 4 channels. With a sampling rate of 5 MHz (across a frequency band of 2 MHz), high speed, and 16-bit resolution, it can perform multi-channel, high-speed, and high-resolution measurement.
