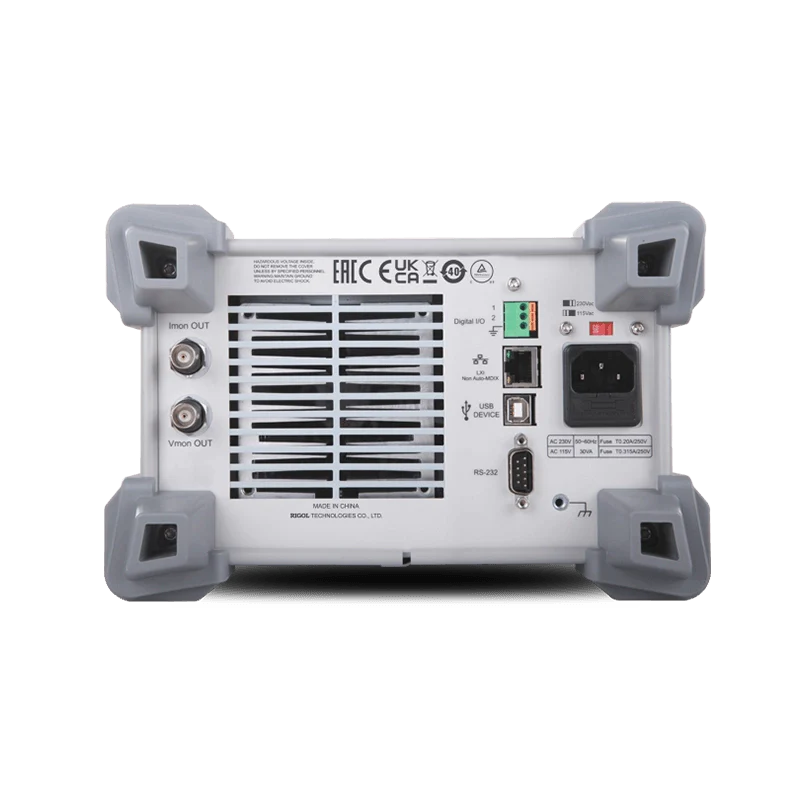

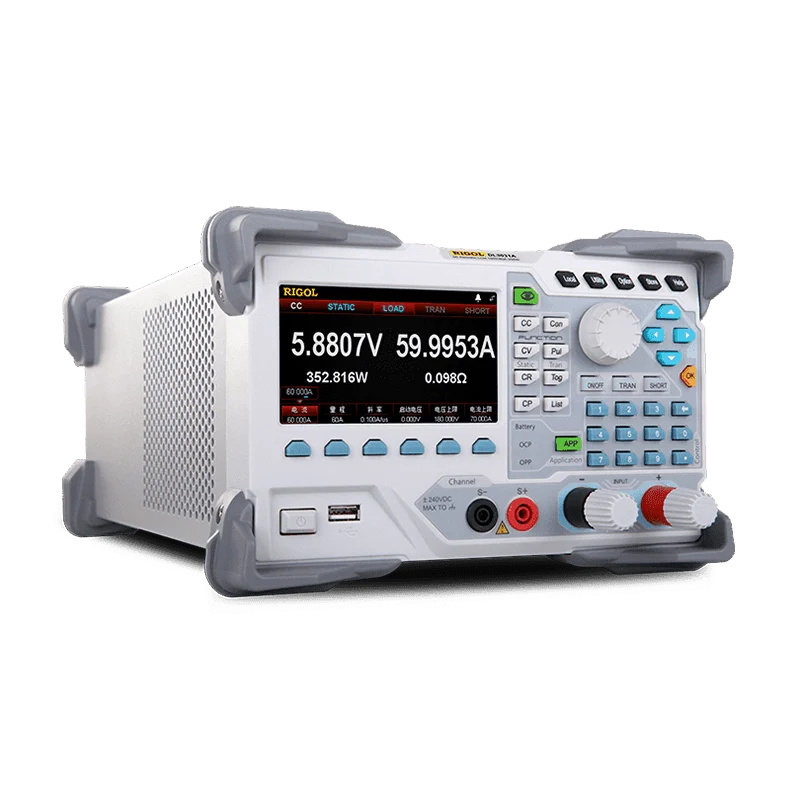

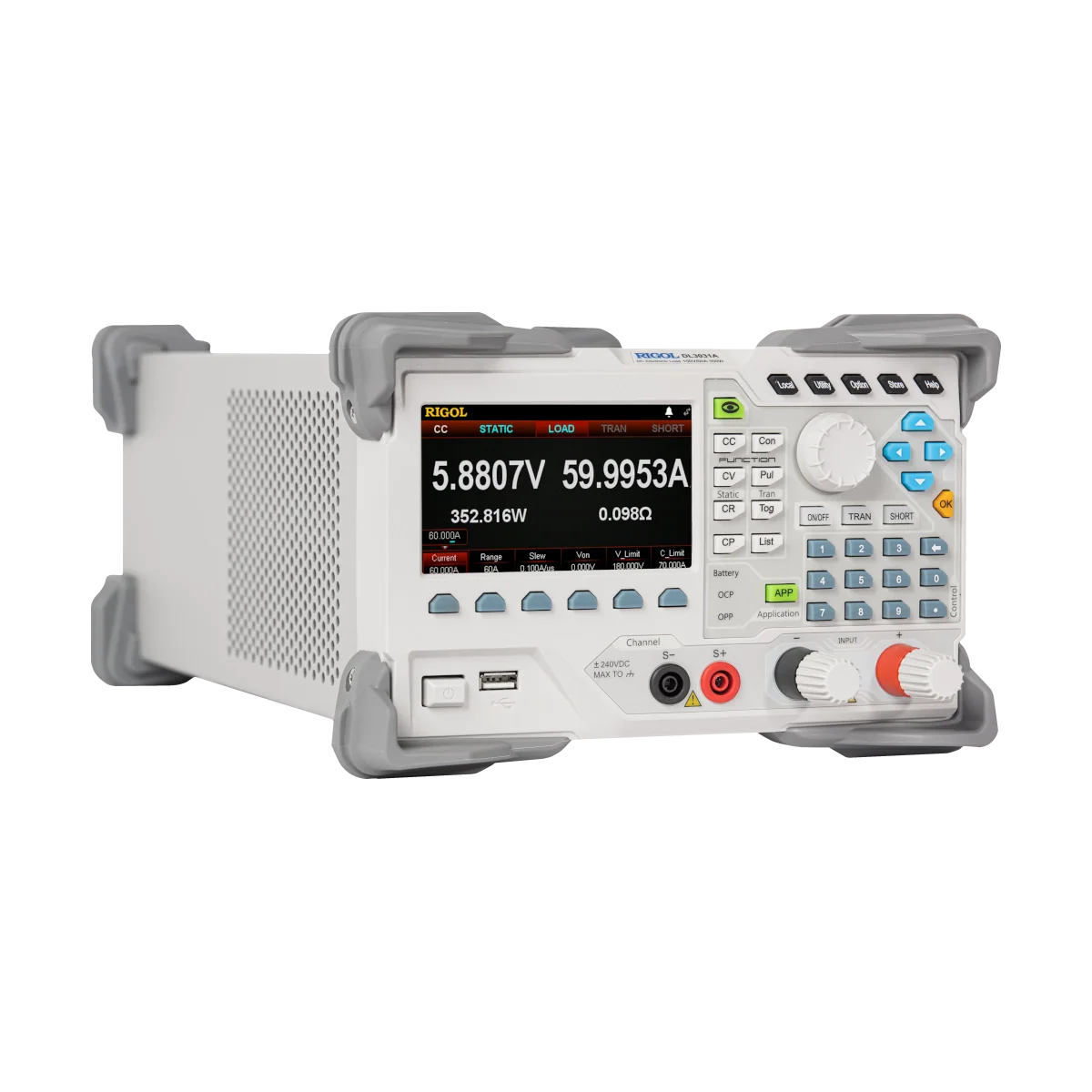

RIGOL DL3041 DC Electronic Load
Använd vår chatt för personlig support. Eller kontakta oss via +46 73-202 00 59 eller sales@GOmeasure.se
- Total Power: 450W
- Voltage: 200V
- Current: 70A
- Maximum Frequency: 30kHz
- Current Slew Rate: 5.0A/us
- Current Readback Resolution: 0.1mA
- Voltage Readback Resolution: 0.1mV
Upptäck möjligheterna
Mer information
Beskrivning
30kHz Dynamic Mode
The dynamic test function enables the load to switch between two sets of preset parameters (Value A and Value B) according to the set rules. This function can be used to test the dynamic characteristics of the device under test, and the maximum frequency can be set to 30 kHz.
Maximum current slope of 5A/us
The DL3041 model offers up to 5A/us and a 30kHz frequency setting for transient mode testing. This flexibility allows for simulating more dynamic real-world power demands, bringing higher reliability to battery and power supply systems.
List function
By editing the setting values, durations, and slopes (only in CC mode) of each step, the List function can generate various complex sequences to meet complex testing requirements.
Waveform display function
The load provides a waveform display function and supports operations such as pausing, zooming in, zooming out, and taking screenshots of the waveform, which is convenient for users to observe the changing trend of parameters through the dynamic waveform.
Battery testing function
The key to making full use of the electronic load is the ability to easily configure the tests you need to run. Conduct battery capacity and discharge time tests through specialized settings to determine whether the battery can work effectively.
