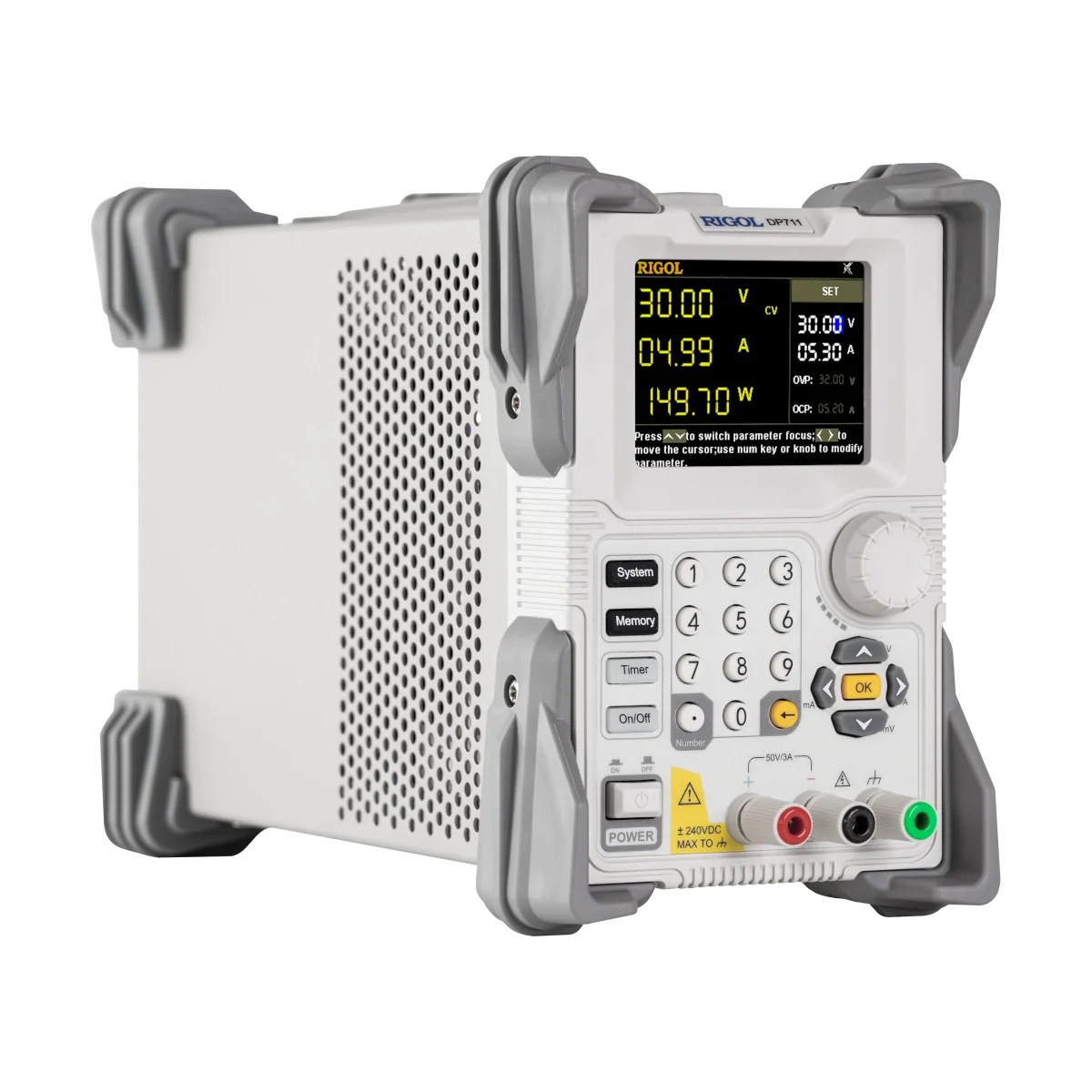

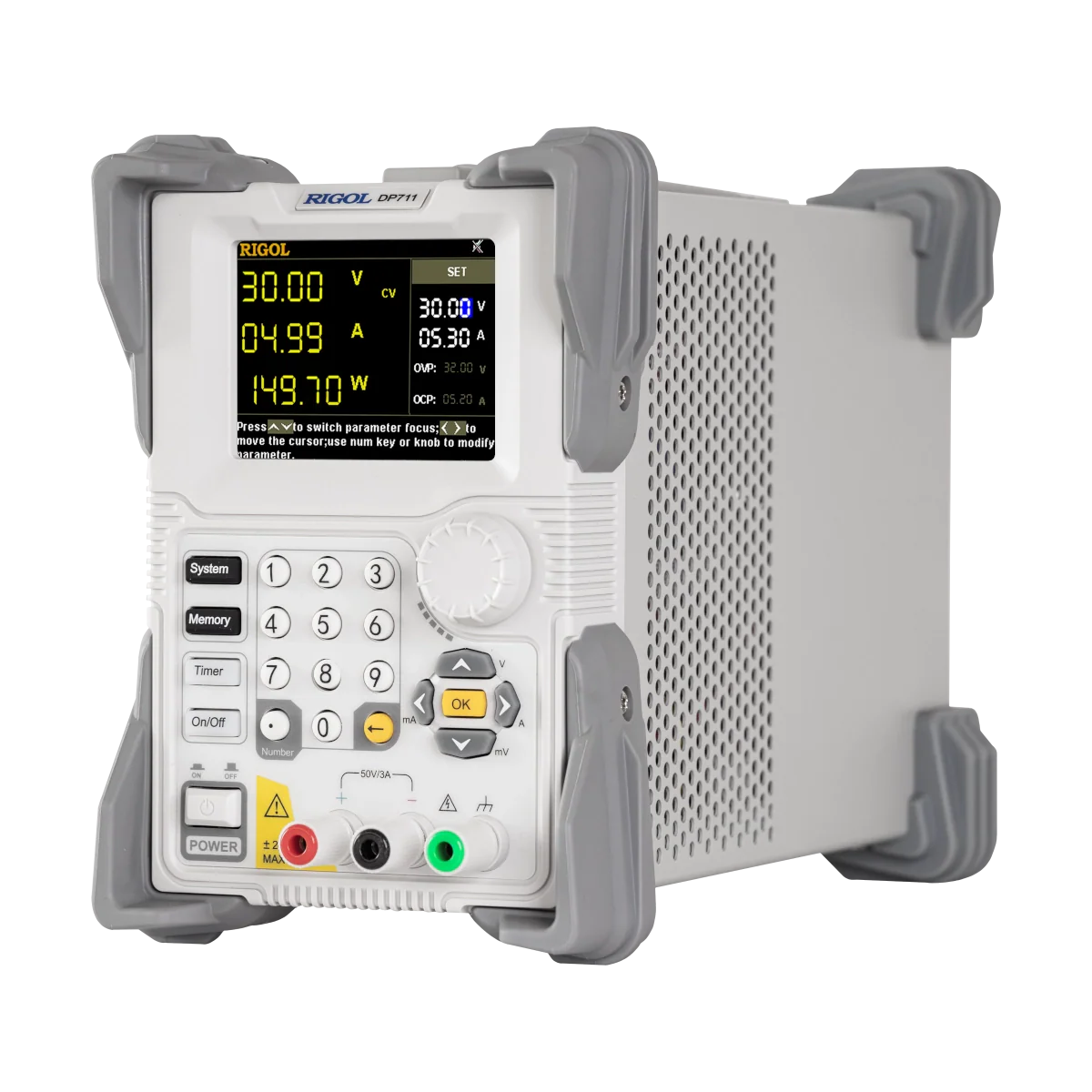

RIGOL DP711 DC Power Supply
Använd vår chatt för personlig support. Eller kontakta oss via +46 73-202 00 59 eller sales@GOmeasure.se
- Number of Channels: 1CH
- Total Power: 150W
- Output per Channel: 30V/5A
- Programming Resolution: 10mV/1mA
- Display Resolution: 10mV/10mA
- Readback Resolution: 10mV/10mA

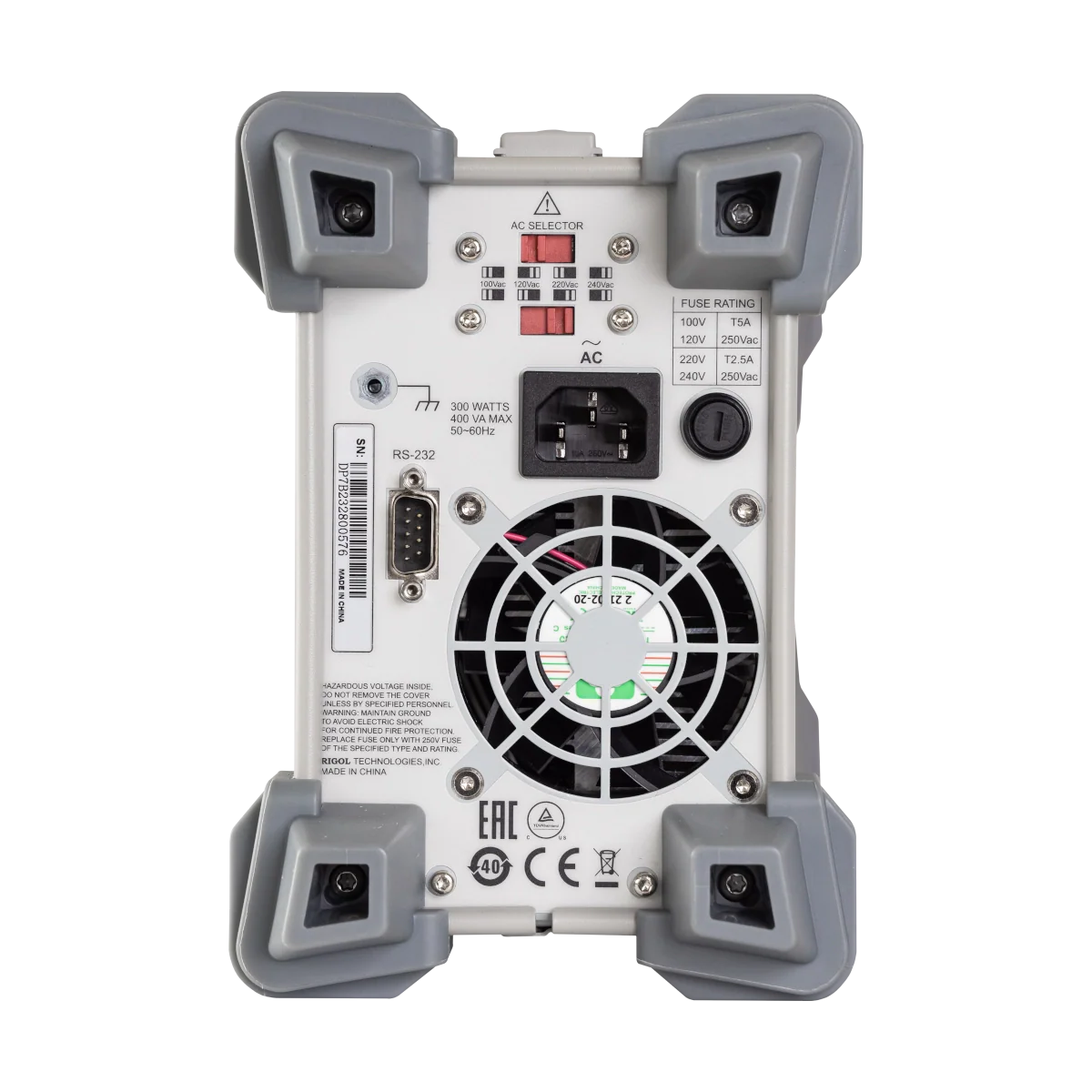

- Communication Interface: RS232
Upptäck möjligheterna
Mer information
Beskrivning
Low ripple noise
Ultra-low noise design (< 500uVrms/3mVpp) to meet users' needs for high-purity power supply.
Fast transient response
With a transient response time of less than 50 μs, when the load current undergoes a transient change, the output voltage can quickly return to the set value, ensuring the output quality.
Excellent power supply & load regulation rate
A power supply regulation rate and load regulation rate of 0.01% ensure stable and safe output.
Convenient trigger function
When multiple power supplies are connected in series or parallel, using the external trigger function can make multiple power supplies output synchronously.
Timed output function
When the timed output is turned on, the voltage and current values for different time periods can be configured according to the pre-set timer parameters to provide variable voltage and current outputs for the load.
Overvoltage & Overcurrent Protection
Perfect overvoltage/overcurrent protection (OVP/OCP). Users can set the limits for overvoltage and overcurrent protection. When overvoltage or overcurrent occurs, the power supply will automatically turn off the output and give a prompt message.
Dokument
Alternativ
Video
Low ripple noise
Ultra-low noise design (< 500uVrms/3mVpp) to meet users' needs for high-purity power supply.
Fast transient response
With a transient response time of less than 50 μs, when the load current undergoes a transient change, the output voltage can quickly return to the set value, ensuring the output quality.
Excellent power supply & load regulation rate
A power supply regulation rate and load regulation rate of 0.01% ensure stable and safe output.
Convenient trigger function
When multiple power supplies are connected in series or parallel, using the external trigger function can make multiple power supplies output synchronously.
Timed output function
When the timed output is turned on, the voltage and current values for different time periods can be configured according to the pre-set timer parameters to provide variable voltage and current outputs for the load.
Overvoltage & Overcurrent Protection
Perfect overvoltage/overcurrent protection (OVP/OCP). Users can set the limits for overvoltage and overcurrent protection. When overvoltage or overcurrent occurs, the power supply will automatically turn off the output and give a prompt message.
