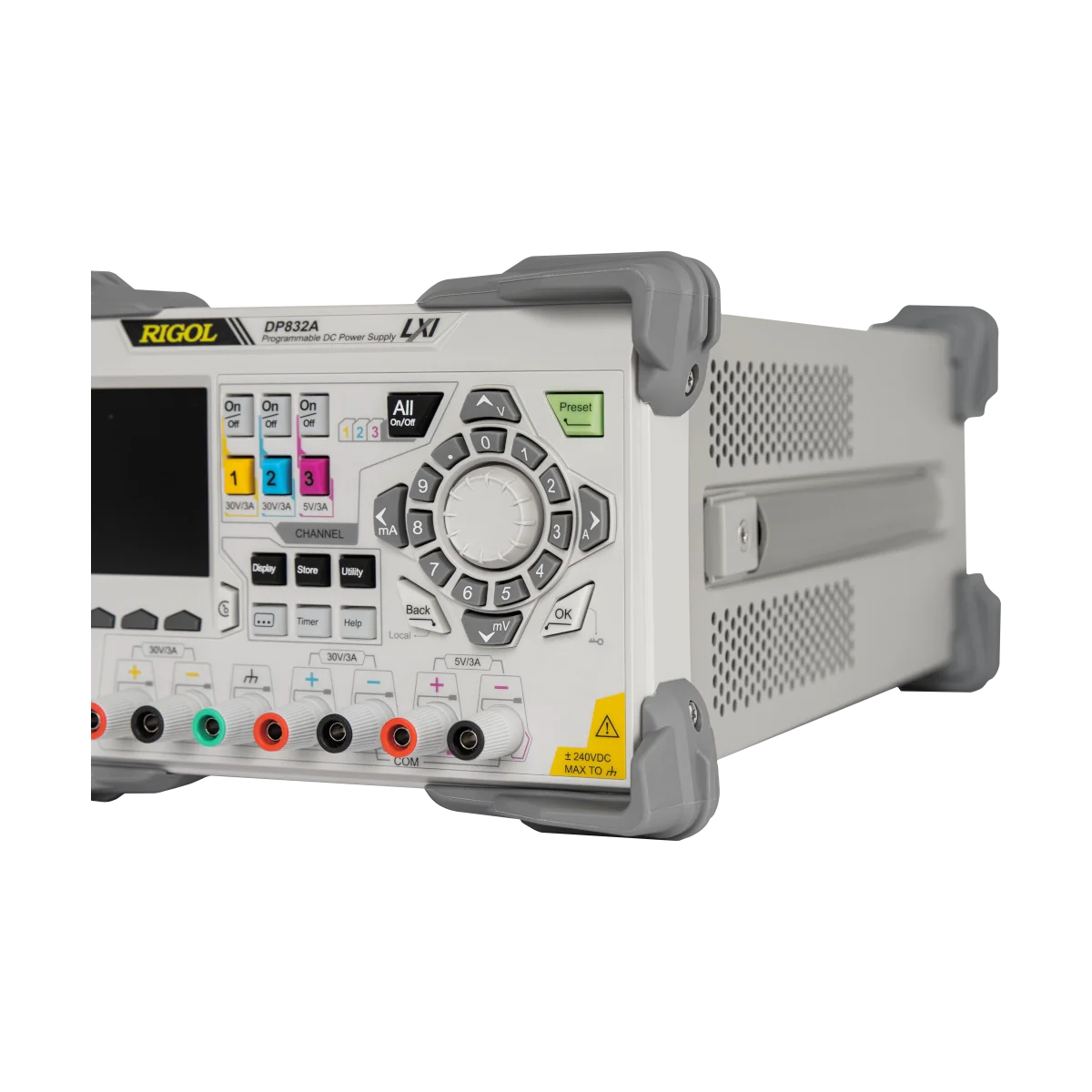

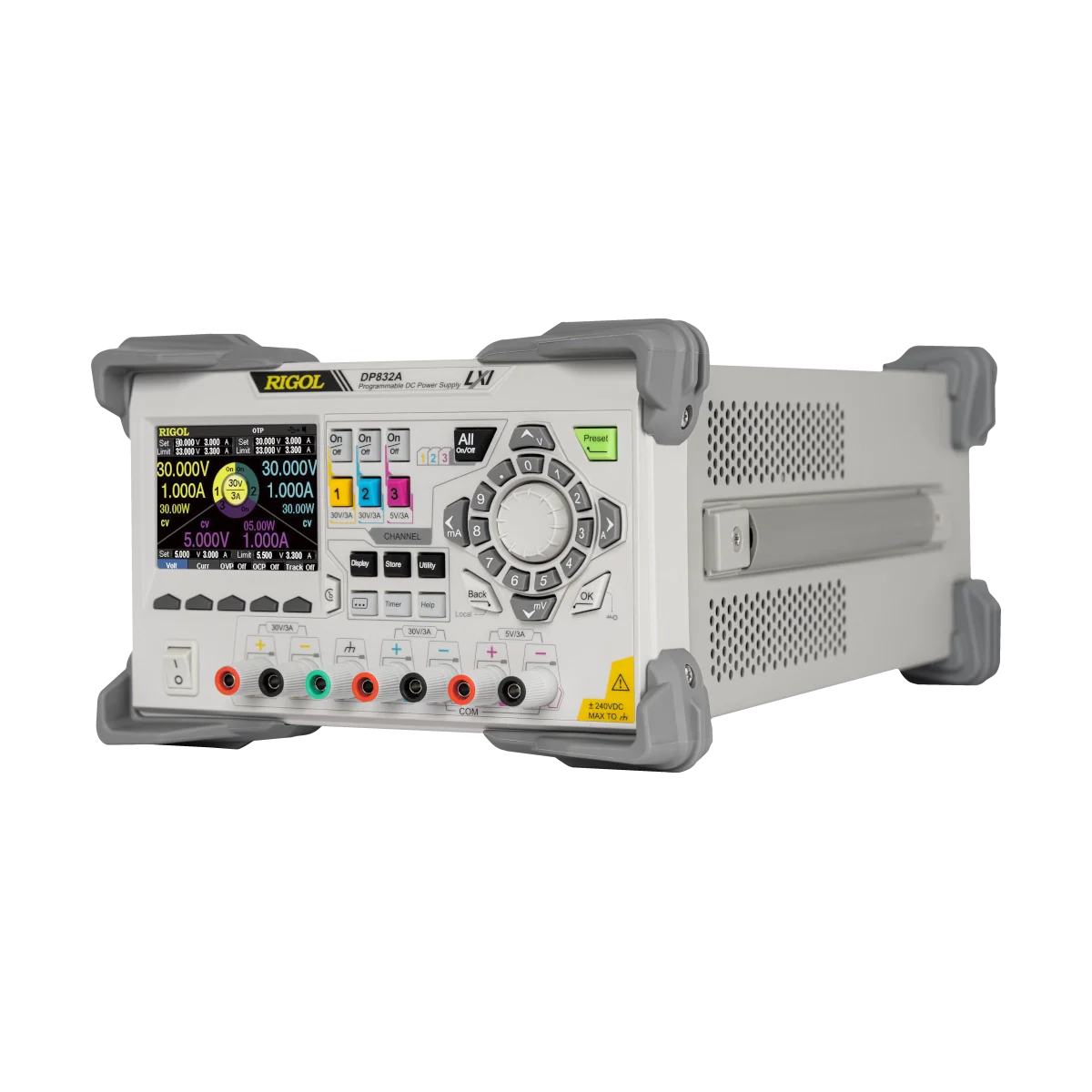

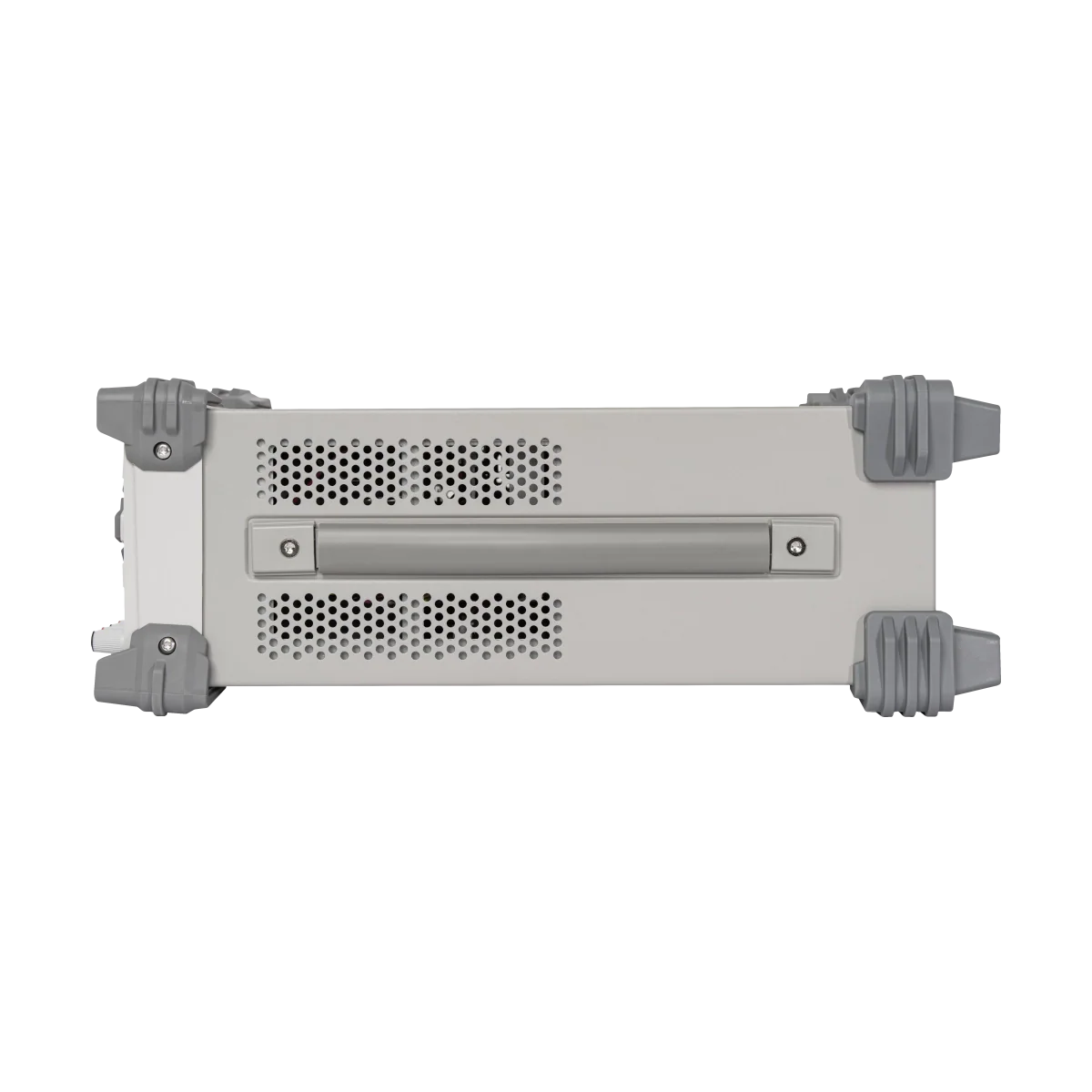

RIGOL DP832A DC Power Supply
Använd vår chatt för personlig support. Eller kontakta oss via +46 73-202 00 59 eller sales@GOmeasure.se
- Number of Channels: 3CH
- Total Power: 195W
- Output per Channel: 30V/3A || 30V/3A, 5V/3A
- Programming Resolution: 1mV/1mA
- Display Resolution: 1mV/1mA
- Readback Resolution: 0.1mV/0.1mA

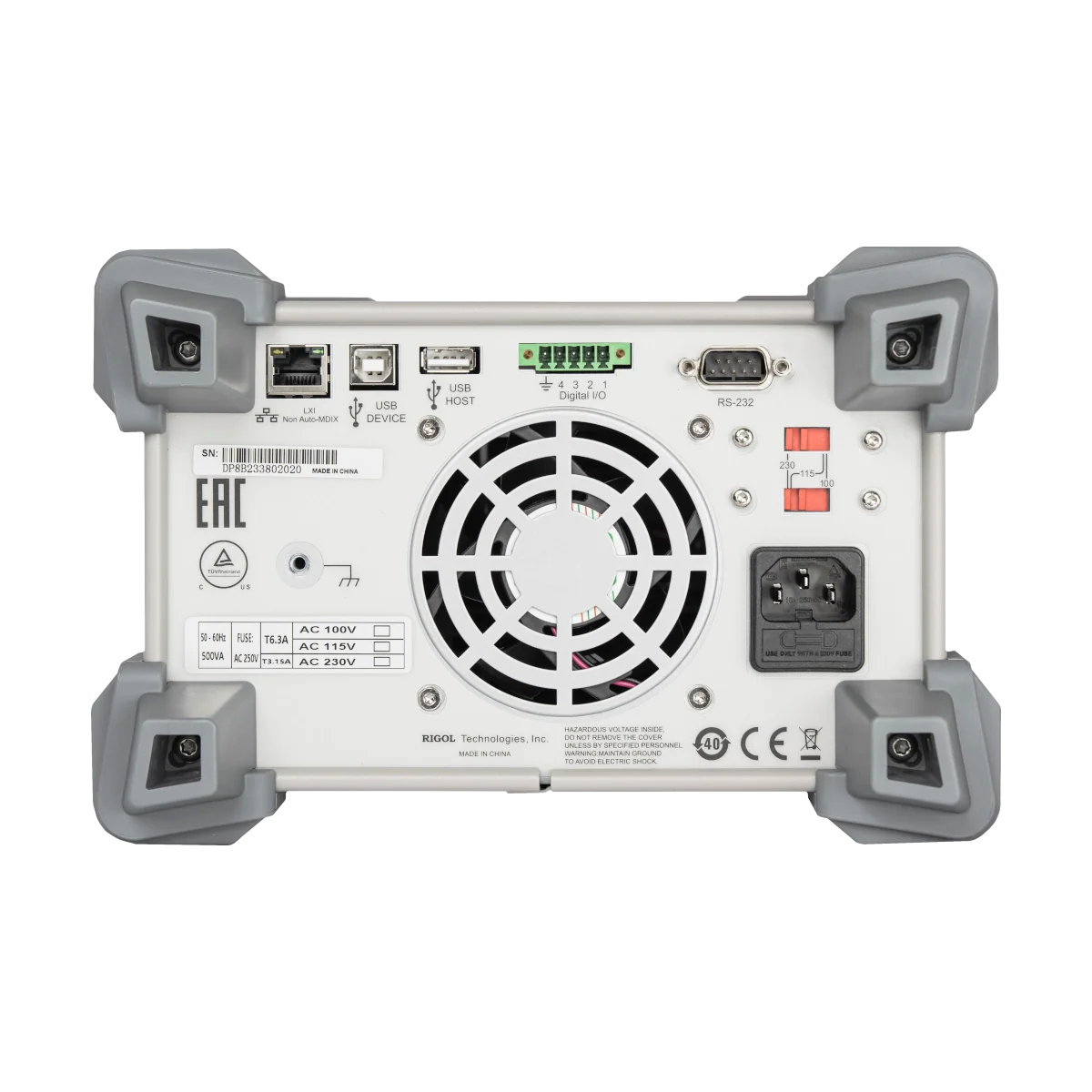

- Communication Interface: USB, LAN, RS232, Digital IO
Upptäck möjligheterna
Mer information
Beskrivning
Low ripple noise: <350uVrms / 2mVpp
The ultra-low noise design meets the users' needs for high-purity power supply.
Fast transient response time: < 50us
A power supply response time of no more than 50 microseconds meets users' needs for rapidly changing voltage waveforms.
Standard timed output
When the timer is turned on, the instrument will output the preset voltage and current (up to 2048 sets). Users can set the number of output sets of the timer and set the output voltage, current, and timing time for each set. (The picture uses DP831A as an example).
Built-in V/A/W measurement and waveform display
Measure in real-time and simultaneously display the changing trends of V/A/W parameters. (The picture takes DP831A as an example).
Functions such as output analysis, monitoring, and setting presets
It has functions such as output analysis, monitoring, and preset setting to achieve comprehensive monitoring and analysis. (The picture takes DP831A as an example).

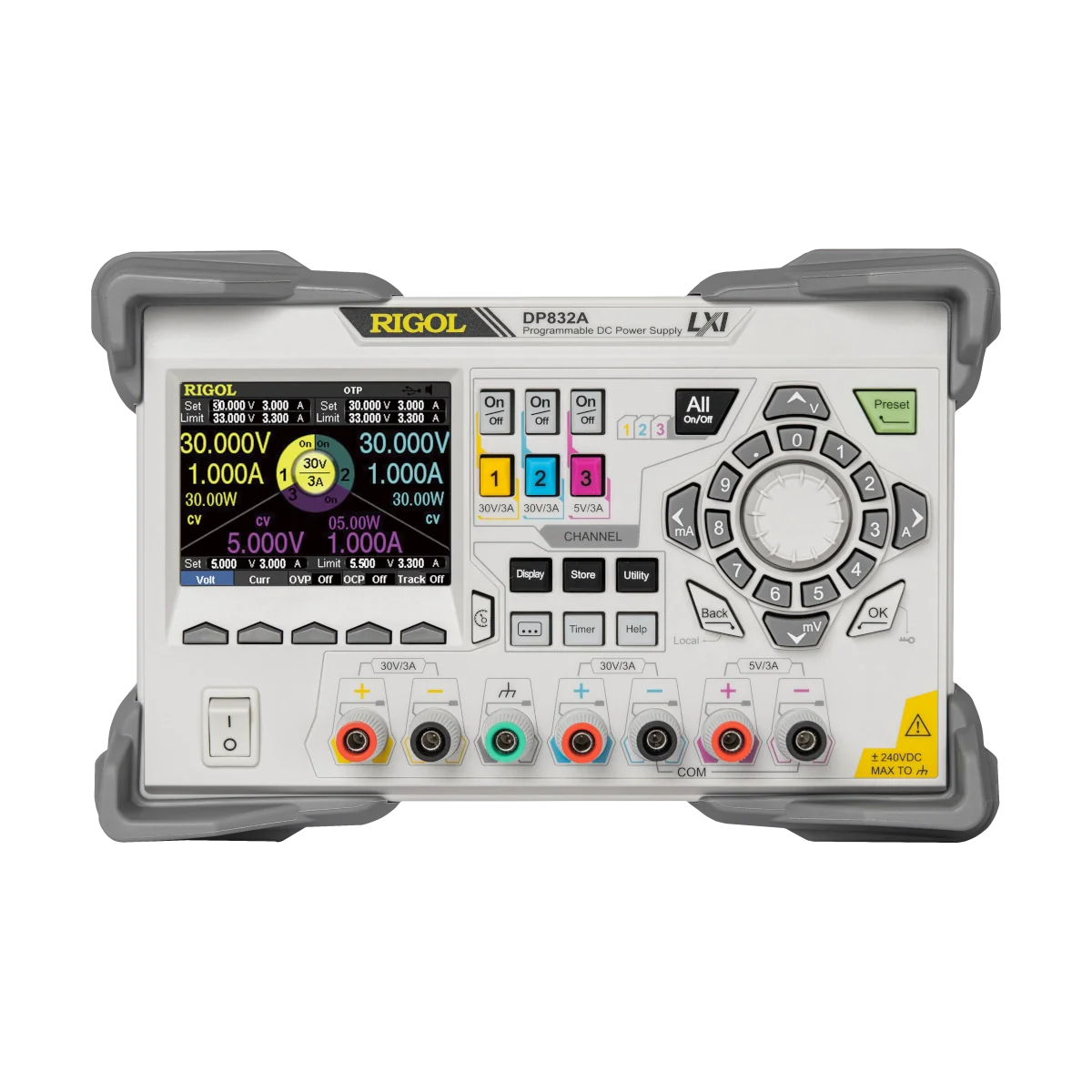

Original 3.5-inch TFT wide-screen display
The traditional numerical interface and the dashboard interface can be switched, with simple operation and intuitive clarity.
Dokument
Alternativ
Video
Low ripple noise: <350uVrms / 2mVpp
The ultra-low noise design meets the users' needs for high-purity power supply.
Fast transient response time: < 50us
A power supply response time of no more than 50 microseconds meets users' needs for rapidly changing voltage waveforms.
Standard timed output
When the timer is turned on, the instrument will output the preset voltage and current (up to 2048 sets). Users can set the number of output sets of the timer and set the output voltage, current, and timing time for each set. (The picture uses DP831A as an example).
Built-in V/A/W measurement and waveform display
Measure in real-time and simultaneously display the changing trends of V/A/W parameters. (The picture takes DP831A as an example).
Functions such as output analysis, monitoring, and setting presets
It has functions such as output analysis, monitoring, and preset setting to achieve comprehensive monitoring and analysis. (The picture takes DP831A as an example).
Original 3.5-inch TFT wide-screen display
The traditional numerical interface and the dashboard interface can be switched, with simple operation and intuitive clarity.
