Svantek SV 90/103 Omnidirectional Sound Source Kit
Använd vår chatt för personlig support. Eller kontakta oss via +46 73-202 00 59 eller sales@GOmeasure.se
Omnidirectional Sound Source Kit dedicated to building acoustics and room acoustics measurements
Upptäck möjligheterna
Mer information
Beskrivning

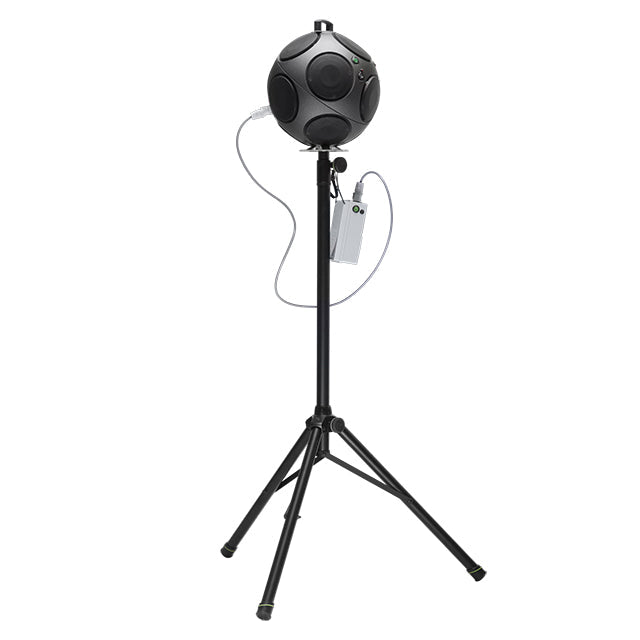

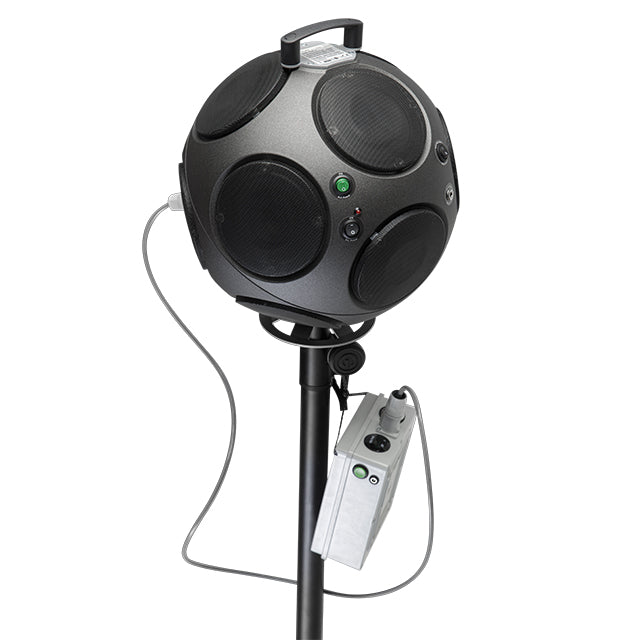

SV 90/103 is an omnidirectional sound source dedicated to building acoustics and room acoustics measurements.
Compliant with international standards, the sound source offers unique features such as an integrated power amplifier and a built-in equalizer inside an ultra-lightweight speaker.
The kit includes a 250mm diameter speaker with 150W RMS power, a dedicated remote controller for the amplifier and generator, a power cable, and a durable transport case.
An additional advantage of the kit is a portable battery, allowing for hundreds of measurements without needing to recharge the battery.
Product Specifications
| Standards | ISO 140, ISO 354, ISO 10140, ISO 3382, ISO 52210 |
|---|---|
| Amplifier Power | 150 W RMS |
| Acoustic Power | 119 dB (LW max) |
| Frequency Range | 60 Hz - 16.000 Hz |
| Speaker Diameter | 250 mm |
| Weight | 5 kg |
| Power Supply | AC/DC |
Kit Composition
- 250 mm Omnidirectional sound source

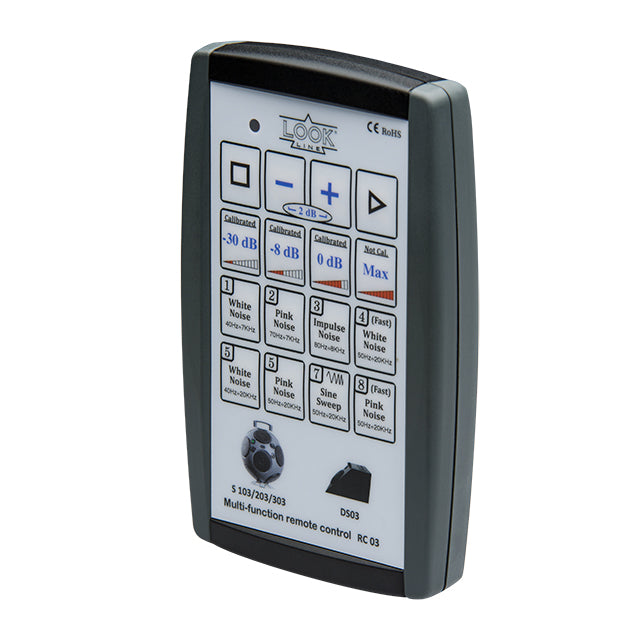

- Remote control
- Portable rechargeable battery
- Power cable

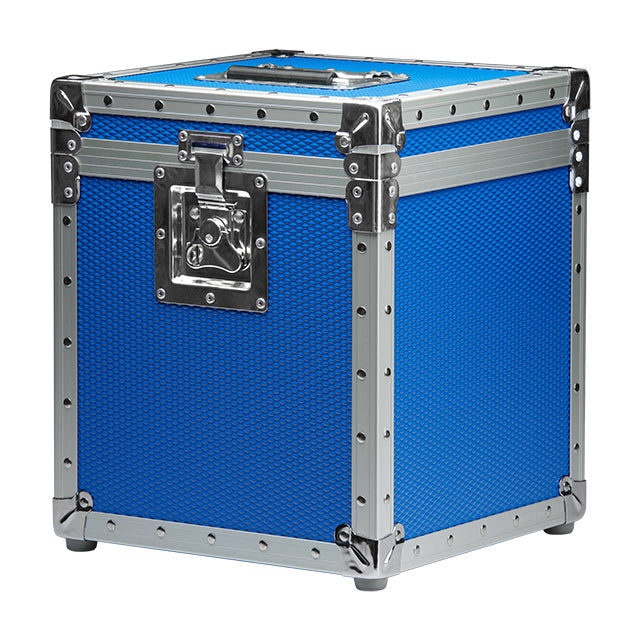

- Dedicated carrying case
Please note! Tripod is not included and must be ordered separately.
