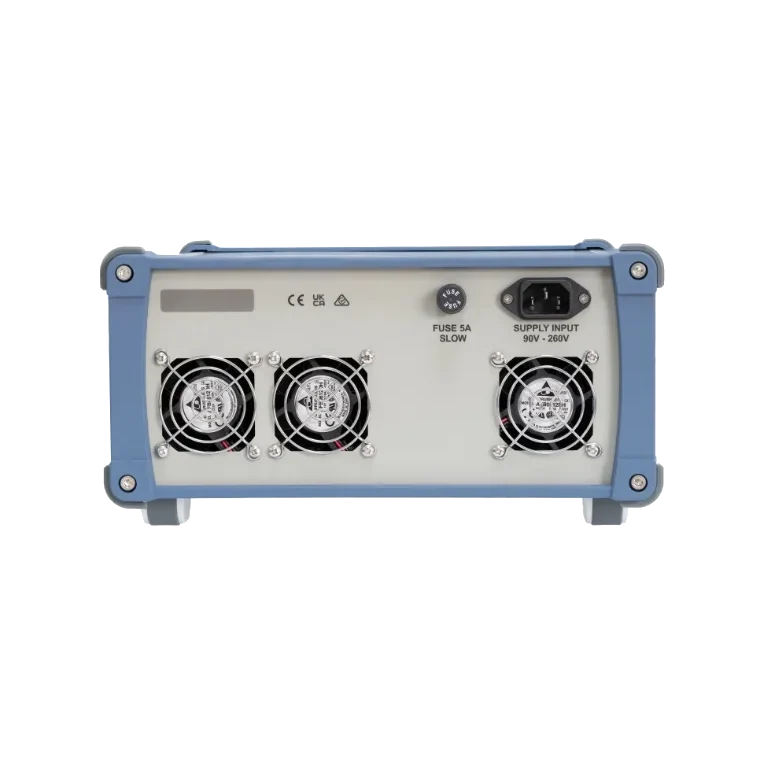

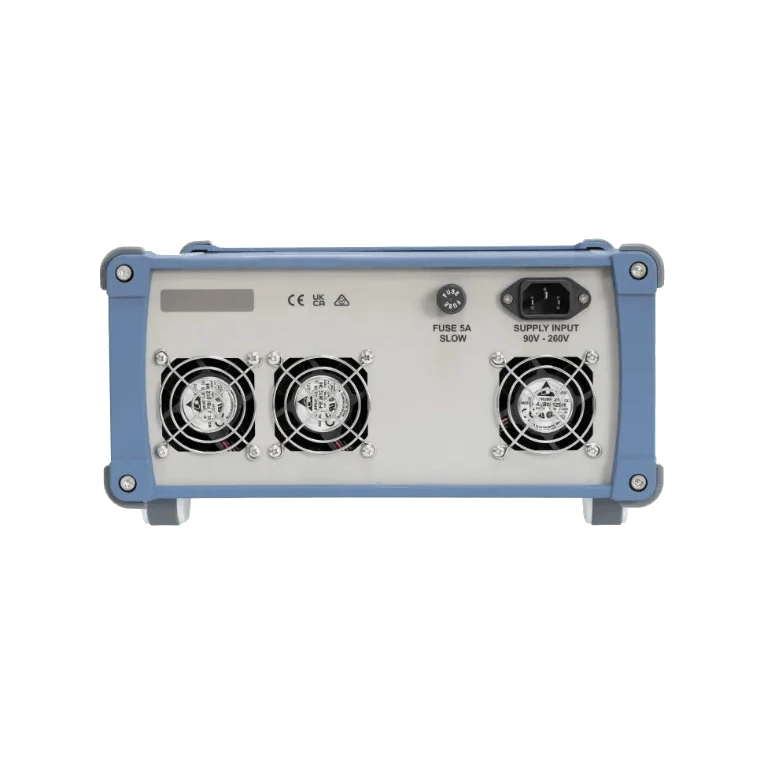

Tekbox TBDCA1 DC Coupled Power Amplifier
Använd vår chatt för personlig support. Eller kontakta oss via +46 73-202 00 59 eller sales@GOmeasure.se
- 3 dB bandwidth: DC – 3 MHz, useable up to 10 MHz
- Output power: 150 W, depending on load impedance
- Voltage gain: switchable; 0 dB, 10 dB, 20 dB, 30 dB, 40 dB
- Operating temperature range: -20°C to +40°C
- Dimensions: W 300 mm x H 150 mm x L 420 mm
- Weight: 10 kg
Upptäck möjligheterna
Mer information
Beskrivning
The TBDCA1 is a DC-coupled power amplifier with low output impedance. It delivers up to 150WRMS , has a 3dB bandwidth from DC to 3 MHz, an output voltage range of up to 55 Vpp , a maximum continuous output current of 10 A RMS and a usable frequency range from DC to 10 MHz.
Applications
- General purpose output amplifier for arbitrary waveform generators
- Stress testing according to ISO 16750-2 and ISO 7637-2
- Power supply input impedance measurement
- Structure current injection for MIL-STD-461H, CS109
- Voltage ripple injection for MIL-STD-461H, CS101 or RTCA/DO-160 Section 18
- Immunity testing according to ISO 11452-10, SAE J1113-2 and various automotive manufacturer specific standards
- RF power amplifier to drive Helmholtz coils or loop antennas
