Tekbox TBEMCL1-CAL EM-Clamp Calibration Fixture
Använd vår chatt för personlig support. Eller kontakta oss via +46 73-202 00 59 eller sales@GOmeasure.se
- Compliance: IEC/EN 61000-4-6, Annex A
- Nominal frequency range: 150 kHz – 80 MHz
- Usable frequency range: 10 kHz – 1 GHz
- Nominal impedance: 248 Ω
- Impedance range: ~ 230Ω – 260 Ω
- RF connectors: N-Female
- Center conductor height: adjustable, ~ 47 mm – 75 mm
- Center conductor material: ⌀ 4 mm, brass, nickel gold plated
- Spacing between brackets: 652 mm
- Ground plane dimensions: 1066 x 500 mm
- Panel material: Aluminium 6061
- Weight: 6.5 kg
Upptäck möjligheterna
Mer information
Beskrivning

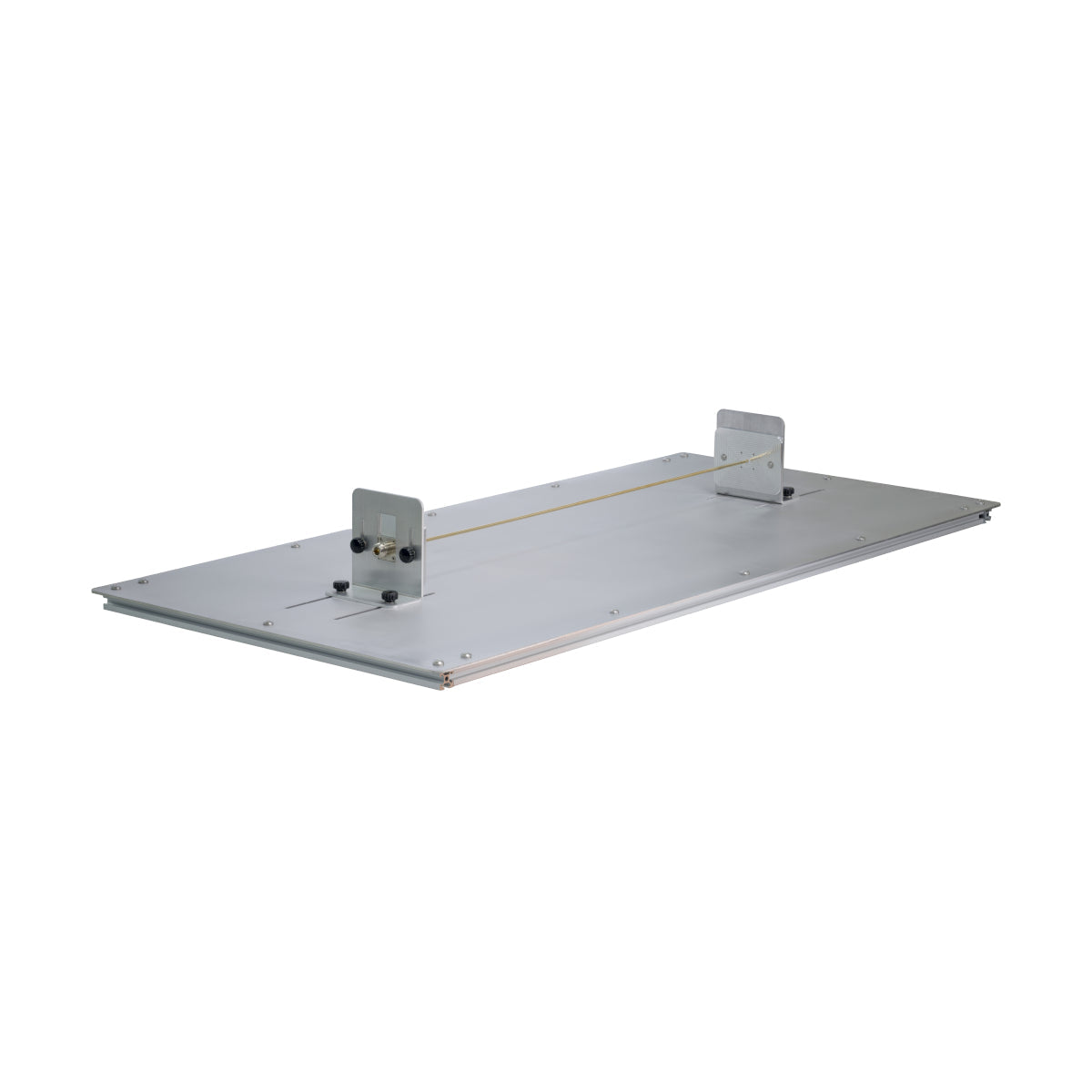

The TBEMCL1-CAL is an EM-clamp calibration fixture built in accordance with the corresponding specification in the standard IEC/EN 6100 0-4-6, Annex A. It is used to calibrate the coupling and decoupling factors and the input impedance of EM-clamps. Furthermore, it is used to set immunity test levels according to IEC/EN 61000-4-6.
