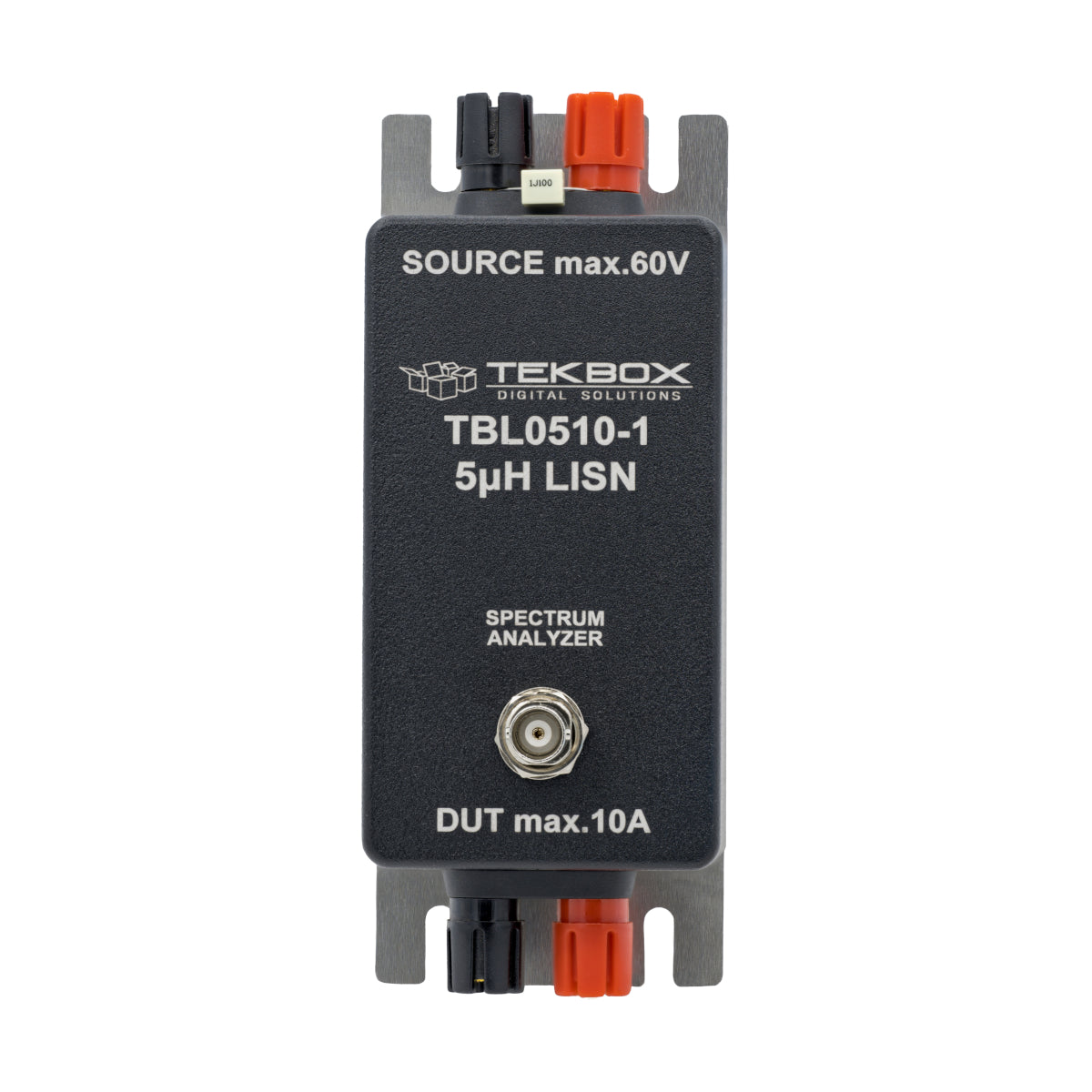

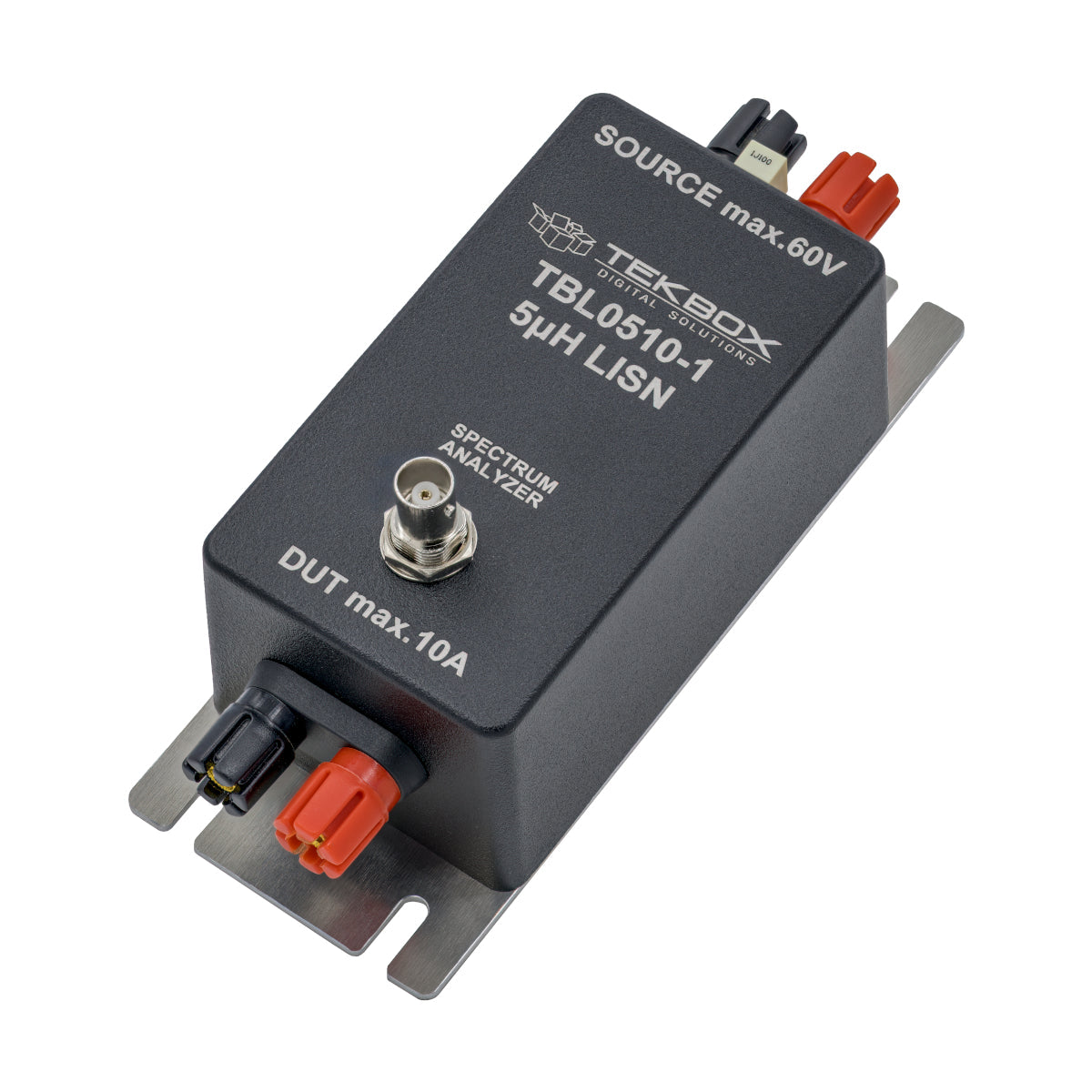

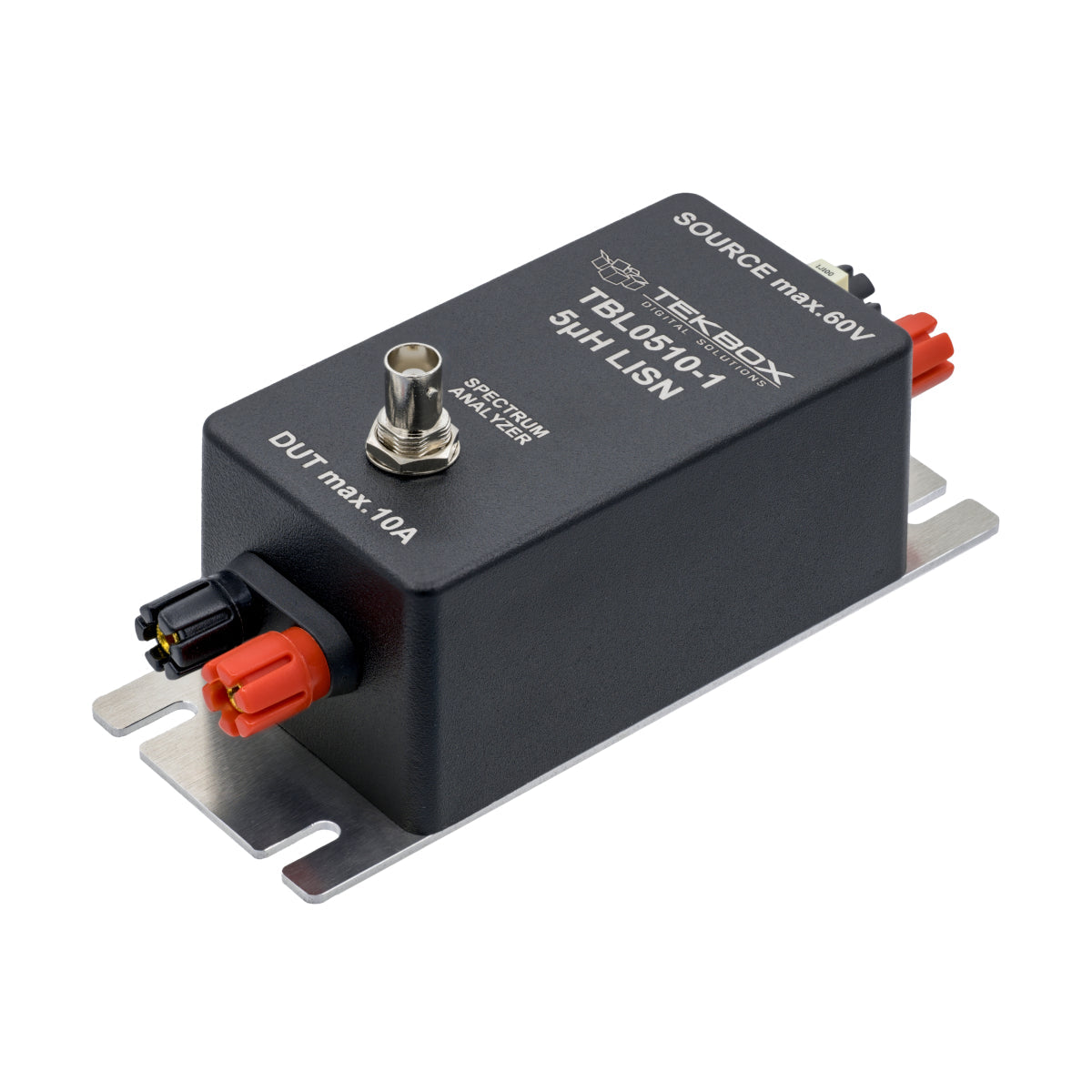

Tekbox TBL0510-1 5UH Line Impedance Stabilisation Network LISN
Använd vår chatt för personlig support. Eller kontakta oss via +46 73-202 00 59 eller sales@GOmeasure.se
- Frequency range: 10 kHz – 400 MHz; depending on standard and external capacitor
- DC Resistance: 40 mΩ
- Continuous current: 10A
- Nominal operating voltage range: 0 – 60V DC
- Absolute maximum rating of internal components: 200V DC; external 1µF capacitor: 100V
- Built in surge protection
- External 1µF source capacitor, for easy removal when using the LISN for 7637-2 tests
Upptäck möjligheterna
Mer information
Beskrivning
The TBL0510-1 is an affordable 5µH LISN designed for conducted emission measurements in the frequency range of 100 kHz to 400 MHz. It complies with CISPR-25 (EN 55025), numerous automotive manufacturer standards, MIL-STD-461F, DO-160, AECTP-500 and ISO 7637-2.
LISNs are inserted into the supply lines of the EUT (Equipment Under Test). Conducted noise which is present at the supply terminals of the DUT can be measured at the BNC connector s using a spectrum analyzer or a measurement receiver. The source (supply) terminal and the DUT terminal are decoupled by a 5µH inductor. Two TBL0510-1 in combination with the Tekbox LISN Mate enable separate measurement of common mode and differential mode noise.
Specifications:
- Frequency range: 10 kHz – 400 MHz; depending on standard and external capacitor
- DC Resistance: 40 mΩ
- Continuous current: 10A
- Nominal operating voltage range: 0 – 60V DC
- Absolute maximum rating of internal components: 200V DC; external 1µF capacitor: 100V
- Built in surge protection
- External 1µF source capacitor, for easy removal when using the LISN for 7637-2 tests
