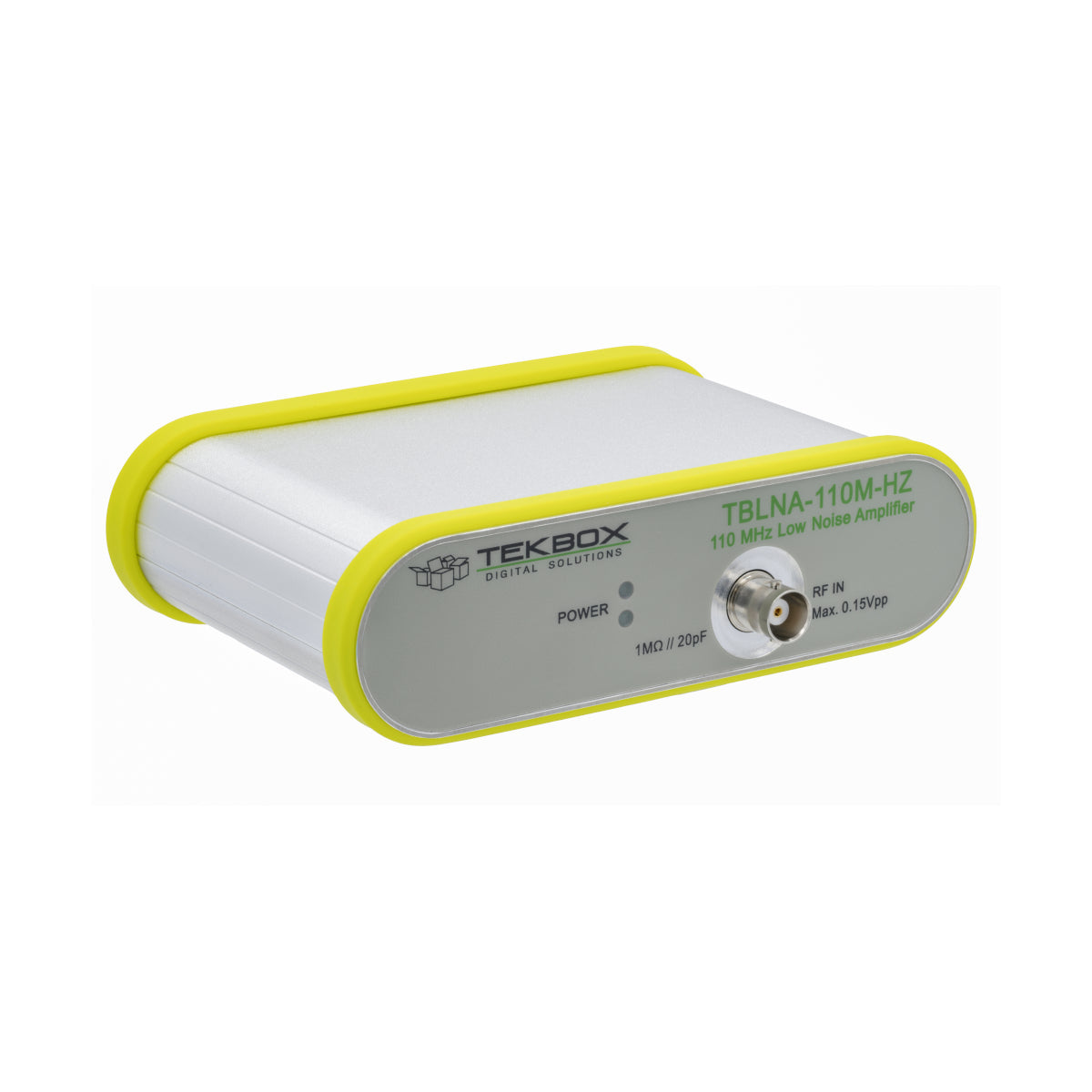

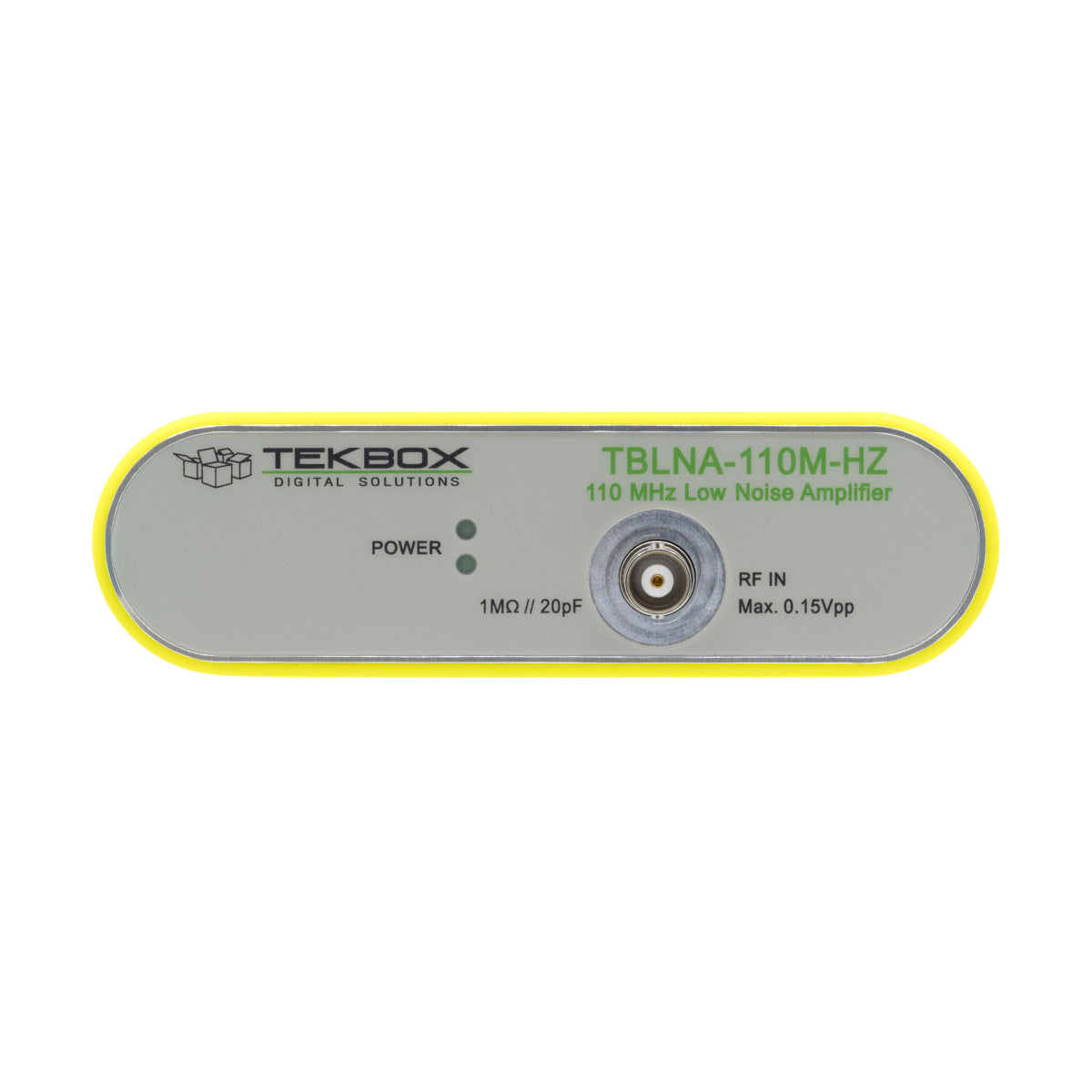

Tekbox TBLNA-110M-HZ DC-Coupled Impedance Converter
Använd vår chatt för personlig support. Eller kontakta oss via +46 73-202 00 59 eller sales@GOmeasure.se
- Flat frequency range: DC – 110 MHz, typ.
- 3 dB frequency range: DC – 500 MHz, typ.
- Usable frequency range: DC – 1 GHz
- Gain: 0 dB, 20 dB
- RF-connectors: BNC-female
Upptäck möjligheterna
Mer information
Beskrivning

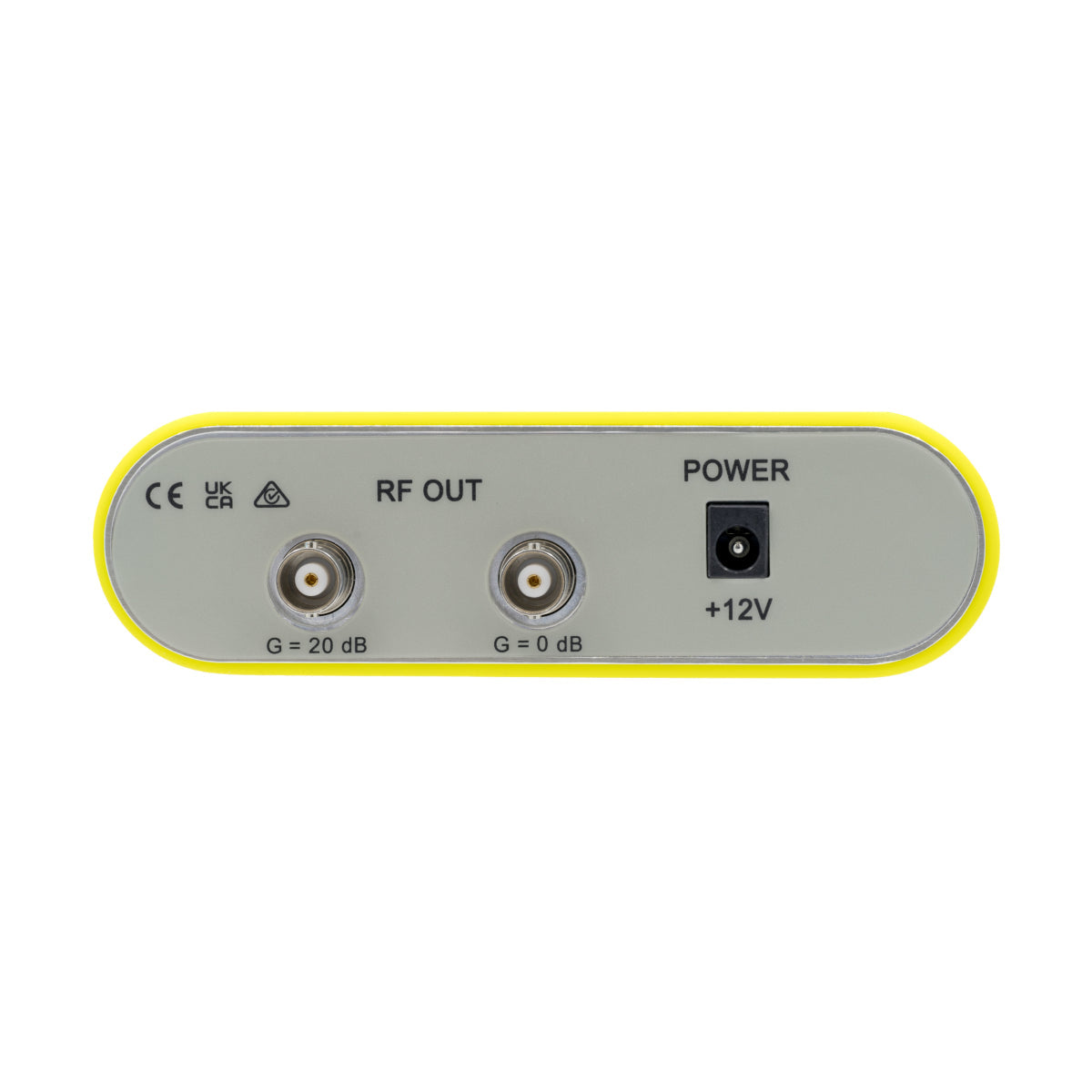

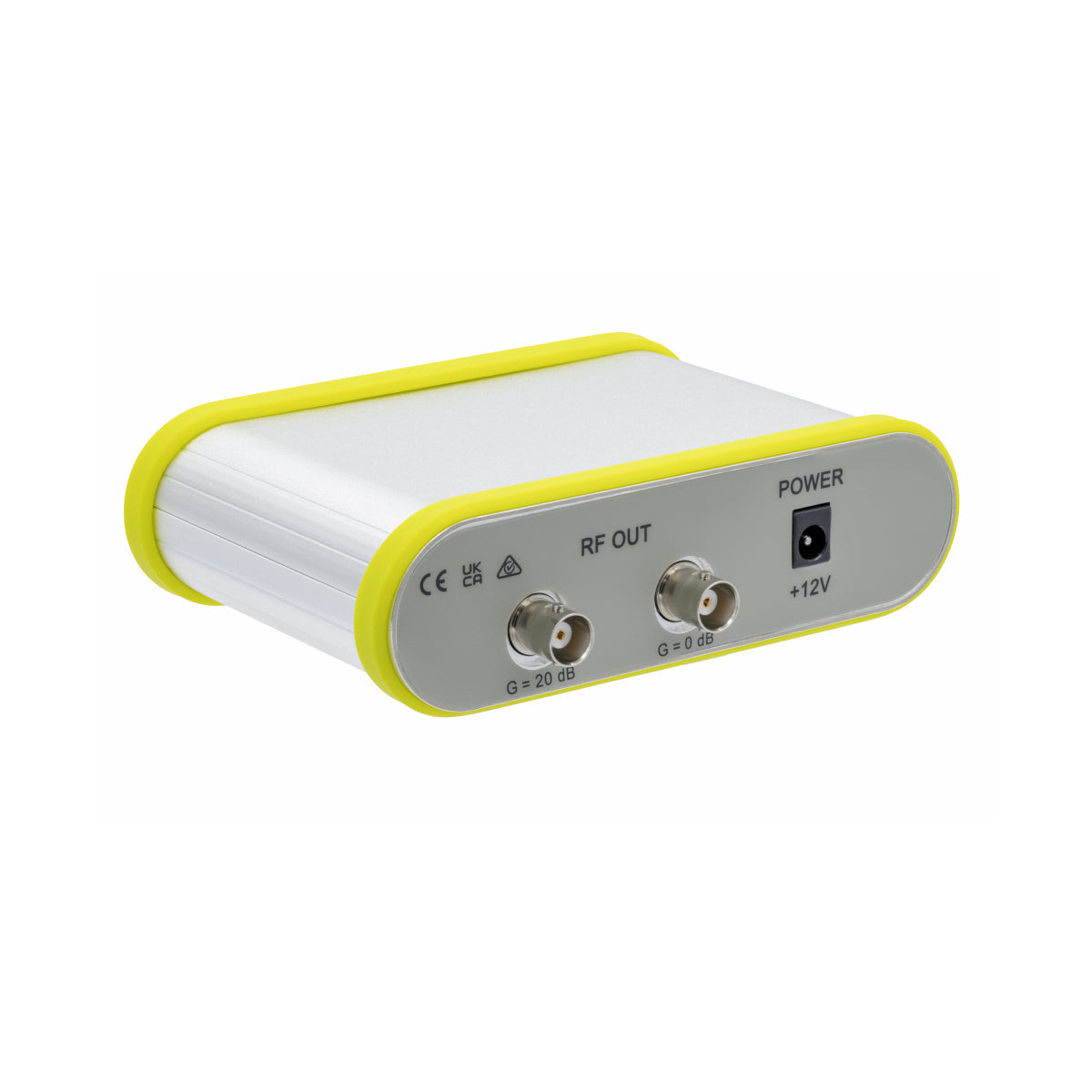

The TBLNA-110M-HZ is a DC-coupled Impedance Converter from 1 MΩ to 50 Ohm with a flat response in the frequency range from DC to 110MHz and a 3 dB bandwidth from DC to 500 MHz. One of the impedance converter’s two separate outputs has a gain of 0 dB, while the other has a gain of 20 dB. When the TBLNA110M-HZ is used with a 1:10 oscilloscope probe, this corresponds to a gain of -20 dB or 0 dB.
Applications
- In-circuit measurements in 50 Ohm systems, using standard oscilloscope probes.
- High impedance frontend for spectrum analyzers and other RF-equipment with 50 Ohm inputs.
Specifications
- Rise time: adjustable; typ. 100 µs – 10 ms
- Fall time: adjustable; typ. 700 ms – 1s
- Pulse: single pulse or five pulses at 10-second intervals
- Ri: 2 Ohm
- EUT current: 3 A max. in a 12 V system; 1.5 A max. in a 24 V system
- EUT voltage: external power supply required; +14 V or +28 V
- Transient supply: external power supply required; +230 V max.
- TBLDS1 supply: internal galvanically isolated supply, powered via USB-C port note: USB-C supply not included
- Dimensions: L x W x H 19 cm x 22 cm x 8 cm
- Weight: 900 g
