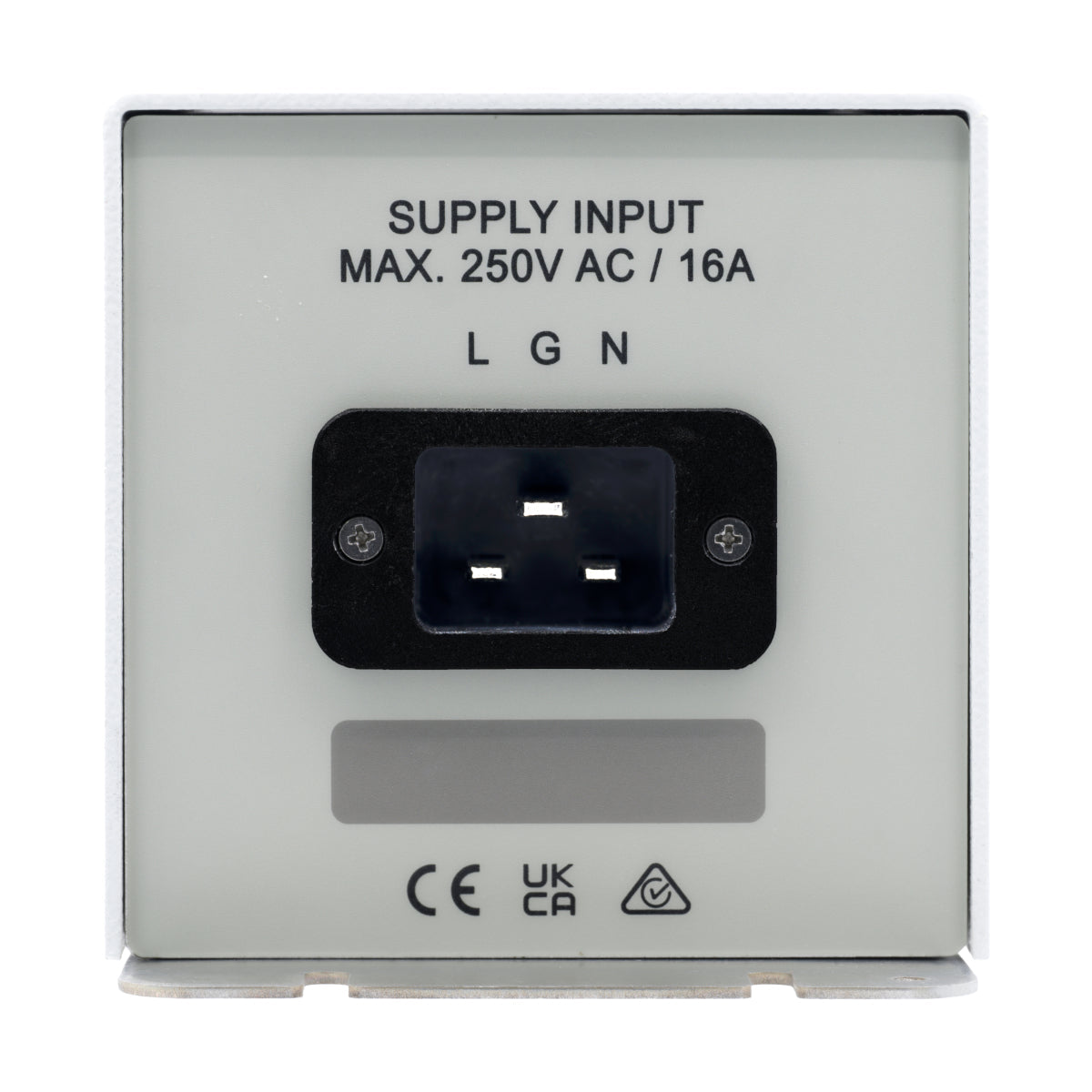

Tekbox TBLVHF-B Balanced VHF Line Impedance Stabilization Network
Använd vår chatt för personlig support. Eller kontakta oss via +46 73-202 00 59 eller sales@GOmeasure.se
- Designed for mains supplied EUTs with or without protective Earth
- Frequency range: 30-300 MHz
- Maximum supply voltage: 250V AC
- Maximum supply current: 16 A rms
- Defined termination impedance
- > 40 dB isolation
- Country specific mains sockets
- Compact design
- CISPR 16-1-4 conformant
Upptäck möjligheterna
Mer information
Beskrivning
The model TBLVHF-B, Balanced Very High Frequency Impedance Stabilization Network (Balanced VHF LISN) is an artificial mains network providing a defined RF termination impedance for AC mains cables supplying EUTs in radiated emission test setups. The LISN is suitable for EUTs with or without protective earth and provides defined, symmetrical line impedances, resulting in a balanced load.
Specifications
- Designed for mains supplied EUTs with or without protective Earth
- Frequency range: 30-300 MHz
- Maximum supply voltage: 250V AC
- Maximum supply current: 16 A rms
- Defined termination impedance
- > 40 dB isolation
- Country specific mains sockets
- Compact design
- CISPR 16-1-4 conformant
