RIGOL M302 Data Acquisition
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Number of Slots: 5
- Module Type: 8
- Built-in Multimeter: 6½ digits
- Maximum Scan Speed: 60 Ch/s
- Maximum Channels per Unit: 320
Discover the possibilities
More information
Description

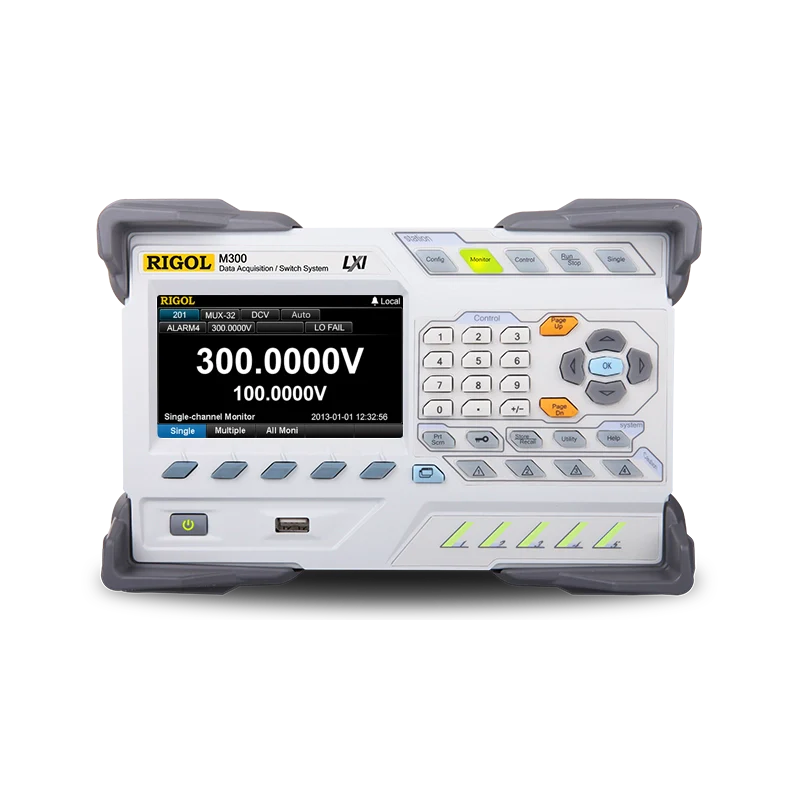

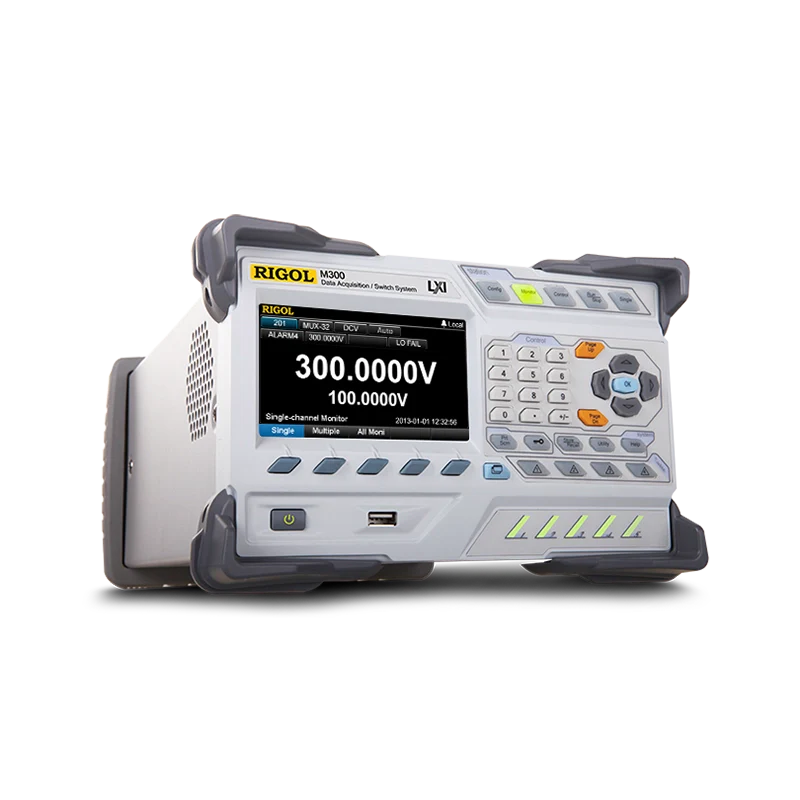

Large screen display & Easy to operate
4.3-inch color LCD screen. The function settings are simple and convenient. No PC is required, and the host can independently perform the collection function.
6.5-digit measurement accuracy
The measurement function of the data acquisition system is completed by the 6.5-bit multimeter module, which supports the measurement functions of DCV, DCI, ACV, ACI, 2wr, 4wr, cycle, frequency, temperature (thermocouple, thermistor and RTD) and any sensor
Up to 256 test channels
The M300 host has 5 module slots. One of the slots is generally used for the DMM measurement card, and the other 4 are used for measurement channels. Depending on the selected module, the slots can have up to 64 measurement channels, and each host can handle 256 measurement channels.
8 types of module cards are available
Supports up to 8 types of module cards, including various multiplexers, actuators, switch matrices, and hybrid test modules

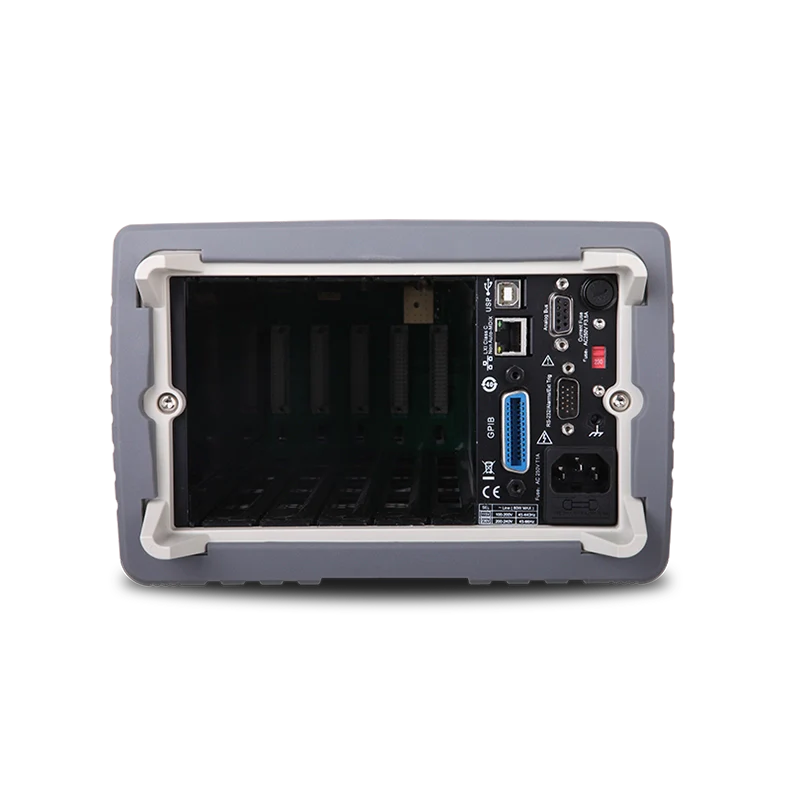

Provide multiple communication interfaces
The standard configuration provides multiple communication interfaces such as USB Host/Device, GPIB, LAN (LXI-C), and RS232.
Supporting control analysis software
UltraAcquire can control up to 5 hosts to complete the configuration of complex systems. Record and plot data after each scan of a PC via Ethernet or USB. Users can also set limits, alarms, and triggers for advanced system monitoring. The software offers a variety of data display methods, one-click report generation, and data export functions.
