Sealevel 7802ec Low Profile PCI Express 8-Port RS-422, RS-485 Serial Interface
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Each port individually configurable for RS-422 or RS-485
- Ultra high-speed UART with 256-byte Tx and Rx FIFOs
- Each port supports asynchronous data rates exceeding 1 Mbps
- Bus-derived 125 MHz BRG and clock prescalar support wide range of baud rates
- RS-485 line termination, pull-up and pull-down resistors for each port are selectable via dipswitches
Discover the possibilities
More information
Description

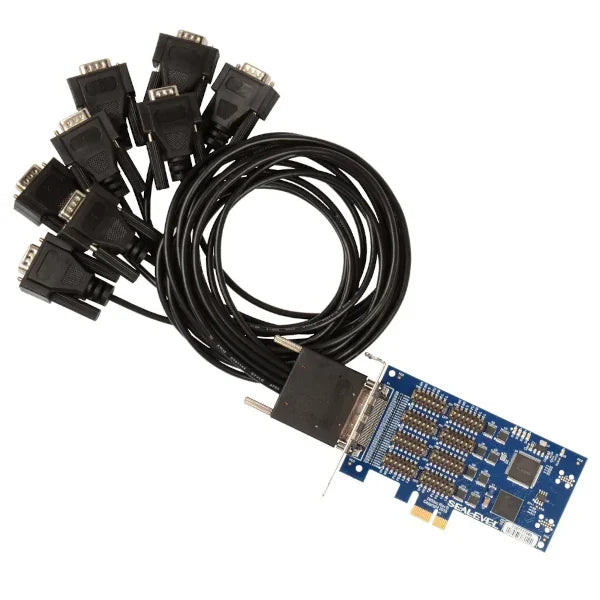

The Sealevel 7802ec low profile PCI Express serial interface provides eight serial ports, each individually field-configurable for RS-422 or RS-485 communications. Each serial port features an ultra high-speed UART, flexible clock prescalar, and large 256-byte Tx/Rx FIFOs allowing the adapter to support the widest range of standard and non-standard baud rates exceeding 1 Mbps. These features make the 7802ec ideal for data-intensive applications that require reliable, ultra-fast throughput rates.
In RS-485 mode, the board provides automatic control of the RS-485 driver in hardware, eliminating the need for application software control. This allows the 7802ec to be used with standard serial communications applications and removes the risk of bus contention and data corruption. Additionally, RS-485 network termination, critical to robust multi-drop communication, can be selectively added to the circuit via DIP-switches.
The Sealevel SeaCOM software driver and utilities make installation and operation easy using Microsoft Windows operating systems.
The 7802ec is a PCI Express X1 board compatible with any PCI Express slot. If you have a standard size PCI Express slot, be sure to select the standard profile bracket. The board ships with a 36-inch spider-cable that terminates to eight DB9M (CA231) connectors.
Features
- Each port individually configurable for RS-422 or RS-485
- Ultra high-speed UART with 256-byte Tx and Rx FIFOs
- Each port supports asynchronous data rates exceeding 1 Mbps
- Bus-derived 125 MHz BRG and clock prescalar support wide range of baud rates
- RS-485 line termination, pull-up and pull-down resistors for each port are selectable via dipswitches
- RS-485 ECHO can be enabled/disabled via dipswitches
- Automatic RS-485 enable/disable in hardware
- PCI Express X1 compliant
- Compatible with low profile PCI Express slots (standard profile slots with optional bracket)
- Included 36″ cable terminates to eight DB9M connectors (Item# CA231)
Specifications
| Host Interface(s) | PCI Express |
|---|---|
| Communications Chip | Ultra high-speed UART |
| Electrical Interface | RS-422, RS-485 |
| # of Ports | 8 |
| Board Connector | MDB68F |
| Cable Connector(s) | DB9M (8) |
| Serial Connector(s) | DB9M |
| Oscillator | 125 MHz BRG |
| RoHS Compliant | Yes |
| PC Bracket | Low Profile, Standard Height |
| Max Data Distance | 4000 feet |
| Max Data Rate | Exceeds 1 Mbps |
| Dimensions | 4.74" (L) x 2.71" (H) w/ Gold Fingers |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -50°C to 105°C (-58°F to 221°F) |
| Humidity Range | 10 – 90% Relative Humidity, Non-Condensing |
For more information: Sealevel
Documents
Datasheet:
Sealevel 7802ec DatasheetOptions
Video
The Sealevel 7802ec low profile PCI Express serial interface provides eight serial ports, each individually field-configurable for RS-422 or RS-485 communications. Each serial port features an ultra high-speed UART, flexible clock prescalar, and large 256-byte Tx/Rx FIFOs allowing the adapter to support the widest range of standard and non-standard baud rates exceeding 1 Mbps. These features make the 7802ec ideal for data-intensive applications that require reliable, ultra-fast throughput rates.
In RS-485 mode, the board provides automatic control of the RS-485 driver in hardware, eliminating the need for application software control. This allows the 7802ec to be used with standard serial communications applications and removes the risk of bus contention and data corruption. Additionally, RS-485 network termination, critical to robust multi-drop communication, can be selectively added to the circuit via DIP-switches.
The Sealevel SeaCOM software driver and utilities make installation and operation easy using Microsoft Windows operating systems.
The 7802ec is a PCI Express X1 board compatible with any PCI Express slot. If you have a standard size PCI Express slot, be sure to select the standard profile bracket. The board ships with a 36-inch spider-cable that terminates to eight DB9M (CA231) connectors.
Features
- Each port individually configurable for RS-422 or RS-485
- Ultra high-speed UART with 256-byte Tx and Rx FIFOs
- Each port supports asynchronous data rates exceeding 1 Mbps
- Bus-derived 125 MHz BRG and clock prescalar support wide range of baud rates
- RS-485 line termination, pull-up and pull-down resistors for each port are selectable via dipswitches
- RS-485 ECHO can be enabled/disabled via dipswitches
- Automatic RS-485 enable/disable in hardware
- PCI Express X1 compliant
- Compatible with low profile PCI Express slots (standard profile slots with optional bracket)
- Included 36″ cable terminates to eight DB9M connectors (Item# CA231)
Specifications
| Host Interface(s) | PCI Express |
|---|---|
| Communications Chip | Ultra high-speed UART |
| Electrical Interface | RS-422, RS-485 |
| # of Ports | 8 |
| Board Connector | MDB68F |
| Cable Connector(s) | DB9M (8) |
| Serial Connector(s) | DB9M |
| Oscillator | 125 MHz BRG |
| RoHS Compliant | Yes |
| PC Bracket | Low Profile, Standard Height |
| Max Data Distance | 4000 feet |
| Max Data Rate | Exceeds 1 Mbps |
| Dimensions | 4.74" (L) x 2.71" (H) w/ Gold Fingers |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -50°C to 105°C (-58°F to 221°F) |
| Humidity Range | 10 – 90% Relative Humidity, Non-Condensing |
For more information: Sealevel
