Tekbox EMCview PC Software for EMC Pre-compliance Testing
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Numerous pre-configured project files for all relevant EMC standards
- Graph supports two complete measurement runs, same as in test house; simultaneous measurement with two detectors available for a few analyzers
- Fast Quasi-Peak scan of critical peaks, immune to frequency drift of the selected peaks
- Fast pre-scan
- Configurable limit lines and segment files
- Configurable correction files for cables, LISN, amplifiers, antennas, current probes, etc.
- Configurable margins for the identification and selection of critical peaks
- Supports import and overlaying of reference measurements for comparison purpose
- Linear or logarithmic frequency axis
- Harmonic markers
- Automatic creation of test reports
- Many import/export-functions
- Graphs can be saved as charts containing meta-data, graphs can be loaded together with the corresponding measurement configuration
- RF coverage measurements
- Tracking generator control for immunity testing using TEM cells
- Many post-processing features
- Useful calculators
Discover the possibilities
More information
Description

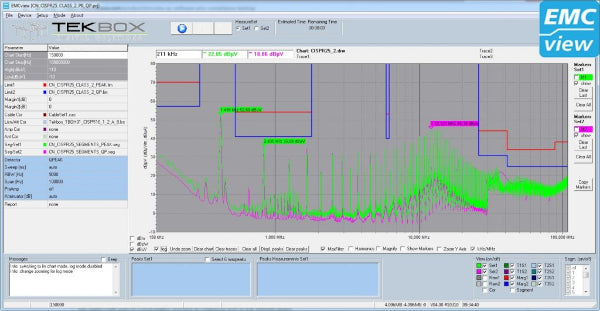

The Tekbox EMC compliance software EMCview for PCs is a user-friendly EMC pre-compliance testing of radiated and conducted emissions. It is a perfect complement for automated testing using our LISNs, RF current probes, measurement antennas and TEM Cells.
A built-in amplitude correction enables correction and conversion coefficients for cables, amplifiers, attenuators, LISNs, TEM cells, antennas, RF current probes, filters and any other component in the signal chain.
There is no need for a time-consuming setup. The SW is ready for measurements straight after installation. All emission related standards and a few automotive manufacturer standards are pre-configured in corresponding project files. The project files take care of all necessary settings to conduct standard compliant measurements. Besides using pre-configured projects, the user can easily create his own projects using a built in editor or any simple text editor.
The graph supports two complete measurement runs such as for example Average / Quasi-Peak or Peak / Quasi Peak and in addition a fast Quasi-Peak scan of critical peaks. Graphs can be saved and overlayed with newer measurements to track and document design modifications.
Furthermore, EMCview together with our GPS receiver can be used to carry out RF-coverage measurements. An export feature creates KML files which links the result to google maps.
Immunity testing is supported with dedicated menus, controlling the tracking generator of the spectrum analyzer.
EMCview currently supports the following spectrum analyzers
- Rigol (DSA and RSA)
- Siglent (SSA/SSA plus/SSA -R and SVA) Siglent EU, Siglent USA
- R&S (FPC and FPH)
- Teledyne Test Tools T3SA series
- BK Precision 2683 series
- ComPower SPA-900TG series
- Multicomp MP700xyz series
- TheEMCShop ESA and RESA series
- UNI-T UTS series
- Keysight models N9321C, N9322C
- ScientiFic SMS1000, SMS3000 analyzer series
The spectrum analyzer should be equipped with the EMI option.
Tekbox offers two license options:
- Analyzer-coupled – the license is coupled to the serial number of the spectrum analyzer. It can be installed on any number of PCs, but it can only control one dedicated spectrum analyzer
- PC-coupled: the license is coupled to the Host ID of the PC. It can control any of the supported spectrum analyzer models, but it can only be installed on one dedicated PC.
NOTE: Software limitation without a license: the measurement is limited to the frequency range below 10MHz
Features
EMCview Standard Features
- numerous pre-configured project files for all relevant EMC standards
- Graph supports two complete measurement runs, same as in test house; simultaneous measurement with two detectors available for a few analyzers
- fast Quasi-Peak scan of critical peaks, immune to frequency drift of the selected peaks
- Fast pre-scan
- configurable limit lines and segment files
- configurable correction files for cables, LISN, amplifiers, antennas, current probes, etc.
- configurable margins for the identification and selection of critical peaks
- supports import and overlaying of reference measurements for comparison purpose
- linear or logarithmic frequency axis
- Harmonic markers
- automatic creation of test reports
- many import/export-functions
- graphs can be saved as charts containing meta-data, graphs can be loaded together with the corresponding measurement configuration
- RF coverage measurements
- tracking generator control for immunity testing using TEM cells
- many post-processing features
- useful calculators
Implemented Standards
- CISPR 16 / EN 55016: Base standard used by EMCview for control and settings of the spectrum analyzers during measurement
- CISPR 11 / EN 55011: Industrial, scientific and medical equipment – Radio-frequency disturbance characteristics – Limits and methods of measurement
- CISPR 12 / EN 55012: Vehicles, boats and internal combustion engines – Radio disturbance characteristics – Limits and methods of measurement for the protection of off-board receivers
- CISPR 13 / EN 55013: Sound and television broadcast receivers and associated equipment -Radio disturbance characteristics – Limits and methods of measurement; replaced by CISPR 32
- CISPR 14 / EN 55014: Electromagnetic compatibility – Requirements for household appliances, electric tools and similar apparatus
- CISPR 15 / EN 55015: Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
- CISPR 22 / EN 55022: Information technology equipment – Radio disturbance characteristics – Limits and methods of measurement; replaced by CISPR 32
- CISPR 25 / EN 55025: Vehicles, boats and internal combustion engines – Radio disturbance characteristics – Limits and methods of measurement for the protection of on-board receivers
- CISPR 32 / EN 55032: Electromagnetic compatibility of multimedia equipment – Emission requirements
- CISPR 36 / EN 55036: Electric and hybrid electric road vehicles – Radio disturbance characteristics – Limits and methods of measurement for the protection of off-board receivers below 30 MHz
- EN 50121-2: Emission of the whole railway system to the outside world
- EN 50121-3-1: Emission and immunity requirements for all types of rolling stock
- EN 50121-3-2: EMC for electrical and electronic apparatus intended for use on railway
- IEC / EN 61000-6-3: generic EMC emission standard applicable only if no relevant dedicated product EMC standard has been published; residential environments
- IEC / EN 61000-6-4: generic EMC emission standard applicable only if no relevant dedicated product EMC standard has been published; industrial environments
- IEC / EN 300330: Short Range Devices; Radio equipment in the frequency range 9 kHz – 25 MHz and inductive loop systems in the frequency range 9 kHz – 30 MHz
- IEC / EN 60945: Maritime navigation and radiocommunication equipment and systems
- EN 15194: Electrically power assisted cycles
- MIL-STD-461G: United States Military standard for electromagnetic compatibility
- DO-160: Avionics
- FCC15 Subpart B: FCC emission limits for two major classes of unintentional radiators
- IEC / EN 61000-4-6: Immunity to conducted disturbances, induced by radio-frequency fields; used for immunity feature in EMCview PRO
- ISO 11452-4: Road vehicles – Component test methods for electrical disturbances from narrowband radiated electromagnetic energy; used for immunity feature in EMCview PRO
- IEC / EN 61000-4-20: Emission and immunity testing in transverse electromagnetic (TEM) waveguides; used for Near-field to far-field correlation feature in EMCview
Various car manufacturer specific standards have been partially implemented. These standards will be updated and additional manufacturer standards will be introduced in future releases of EMCview
Application
- In house measurement of EMC behavior during product design phase
- EMC training in lab, school and university
- Pre-compliance test of products before submitting it to the test house
- Test-cost reduction
- Reduced time to market
Conducted emission testing using LISN
Conducted emission testing using a RF current monitoring Probe
Radiated emission testing using a measurement antenna
Radiated emission testing using a TEM-cell
Immunity testing using a TEM-cell
Immunity testing using near field probes
EN 61000-4-6 calibration set up using EMCview PRO
EN 61000-4-6 immunity test set up using EMCview PRO
EN 61000-4-6 300 Ohm loop BCI calibration set up using EMCview PRO
EN 61000-4-6 immunity test set up using a BCI probe using EMCview PRO
ISO 11452-4 Conducted immunity measurement using EMCview PRO
ISO 11452-4 Conducted immunity test using EMCview PRO Open Loop Method
Documents
Options
Video
EMCView Tutorial
In this video, a step by step guidance to use Tekbox EMCView software is provided to measure conducted emission using a LISN. Without segment scanning, measurement results are sometimes inaccurate, the reason for this phenomenon is well explained. Having a software that automatically does the segment 'stitching' is a very efficient way of doing pre-compliance EMC test.
EMCView -More Advanced Features (Simultaneous Scan, QP with drift)
In this video, we explored two more advanced features of EMCView. Simultaneous scanning is the new feature of the newly released version while QP scan with drift is useful for emission spectrums that could change with temperature/operation modes.
Predicting Far-field Radiation - A TEM cell approach
In this video, we demonstrated a method of predicting far field radiation by testing a DUT in a TEM cell. Results are obtained and compared with the test lab results. Using a TEM Cell to predict radiated emission of a DUT is a good approach in the early stage of the R&D development.
Bench-top Conducted Emission Pre-compliance Test using EMCView - A Full Length Tutorial
In the past few years, the EMC view software has been upgraded with many useful functions, which is great for serious EMC pre-compliance work. This tutorial demonstrates using the software effectively to perform pre-compliance EMC tests. This session focuses on the conducted emission test.
