DEMO - Svantek SV 977D Class 1 Sound & Vibration Level Meter
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se

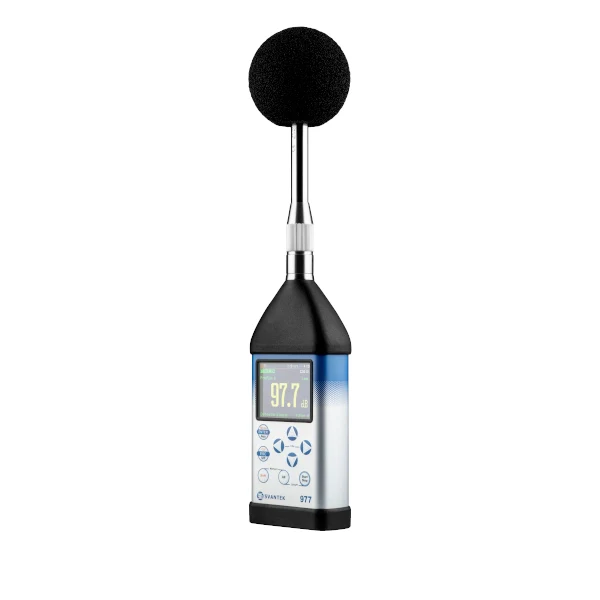

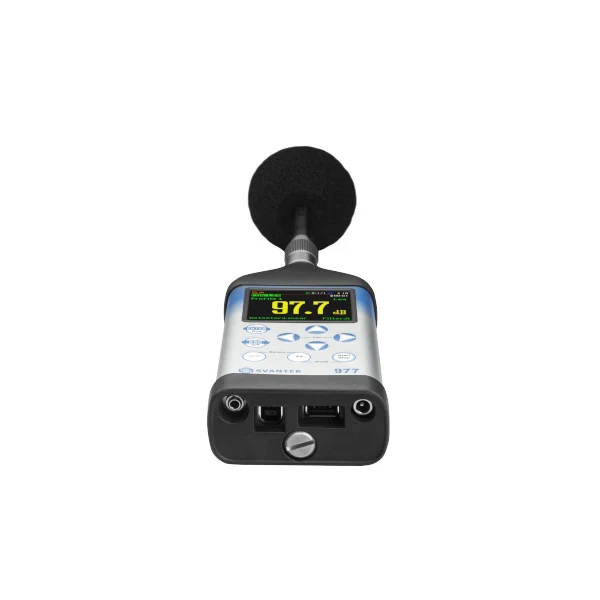

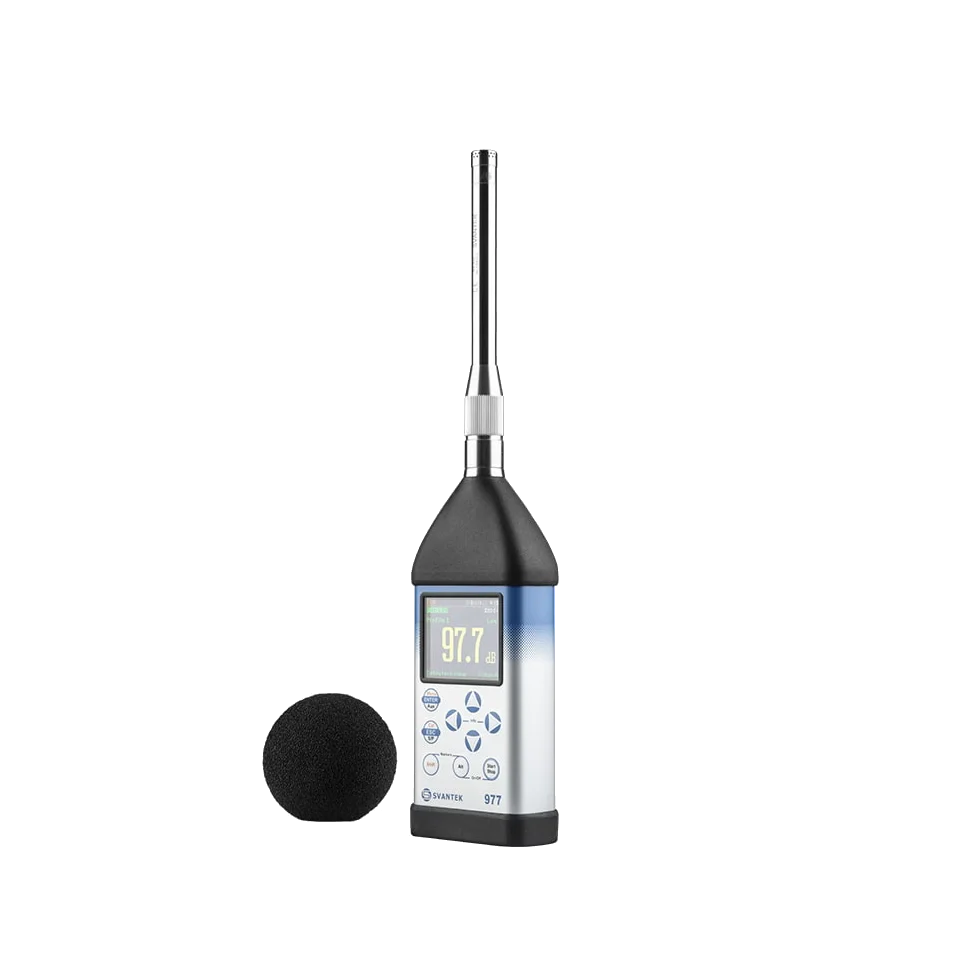

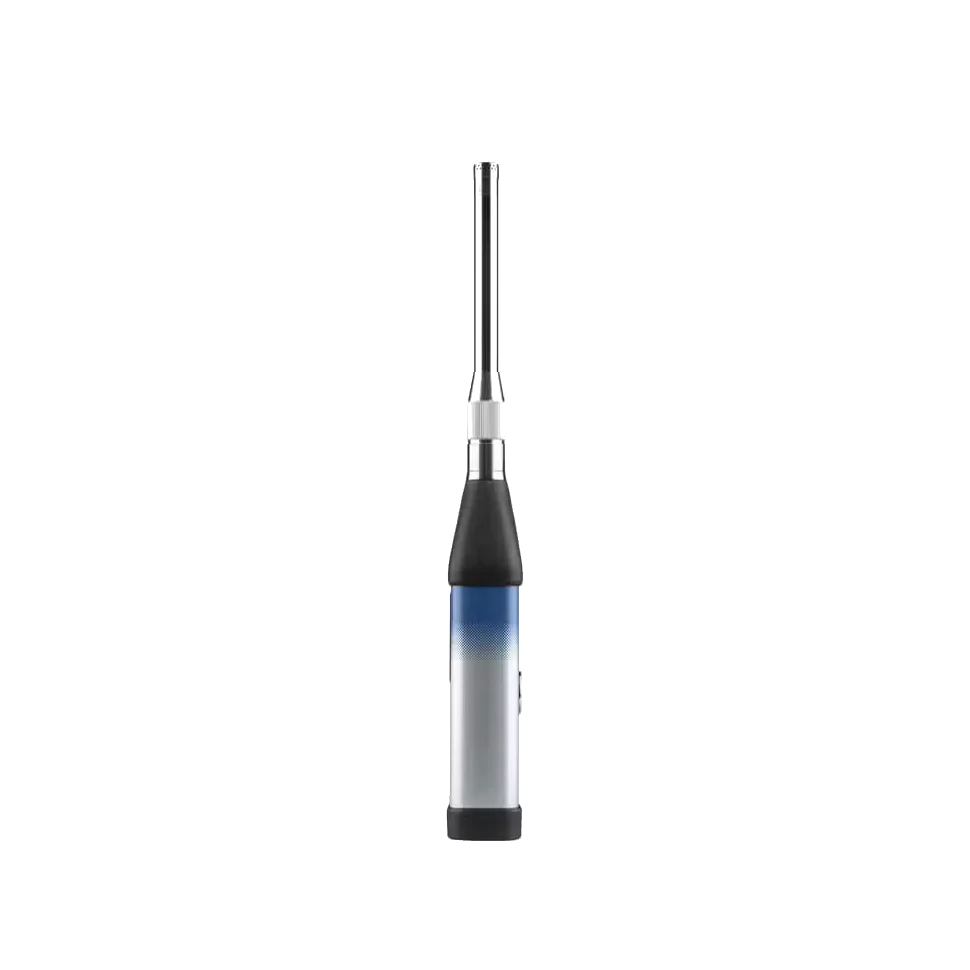

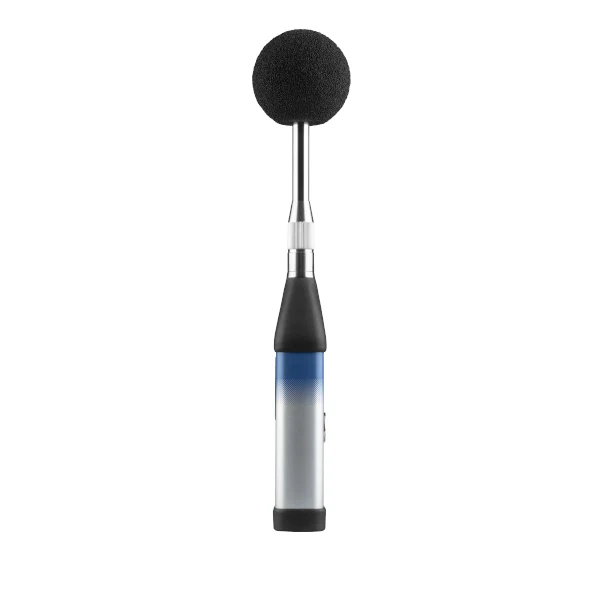

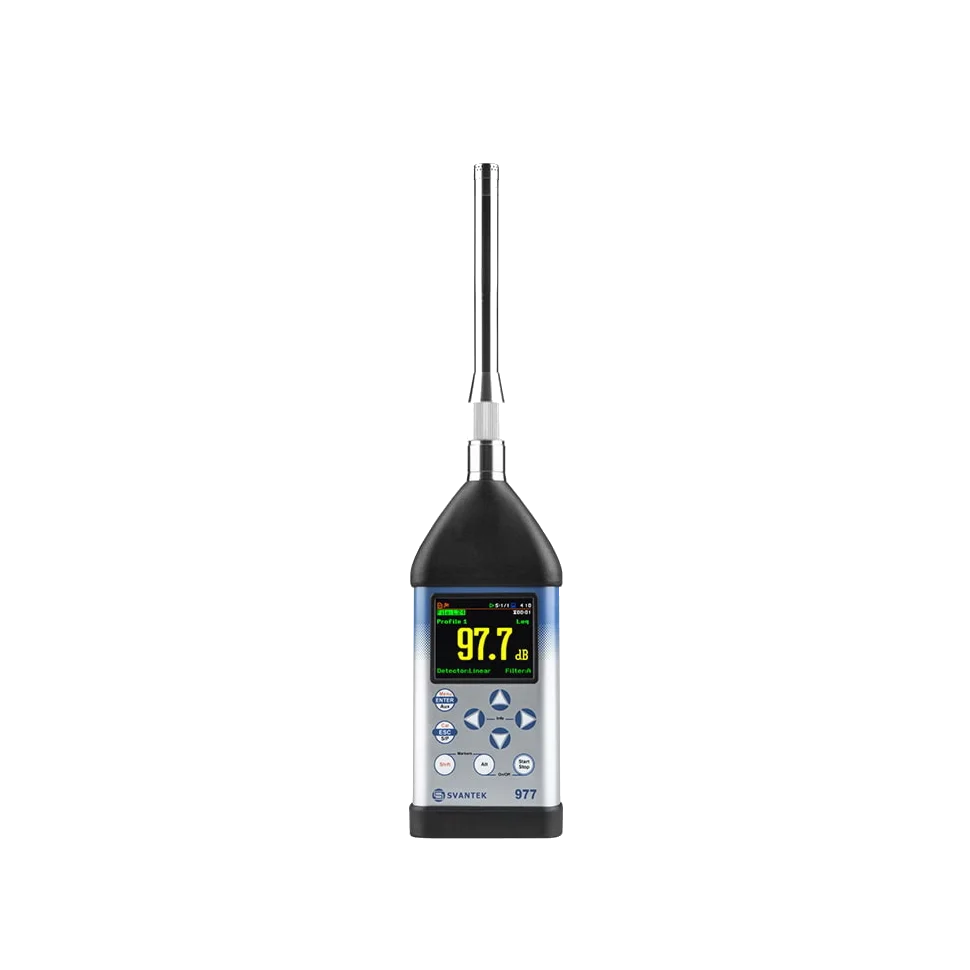

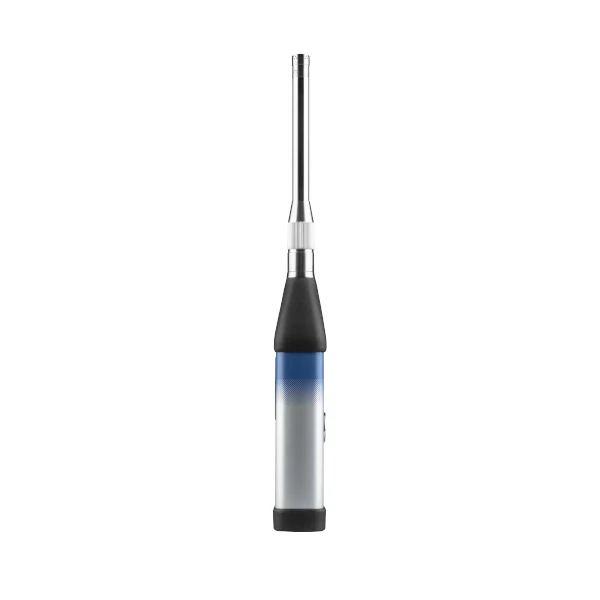

Svantek SV 977D Class 1 Sound & Vibration Level Meter is designed for advanced acoustic and vibration measurements in building acoustics, occupational noise, and environmental monitoring.
The kit includes
- SV 977D Class 1 Sound & Vibration Level Meter
- SV 12L detachable preamplifier
- MK 255 high quality microphone
- SA 143 carrying case
- SA 22 windscreen
- 32 GB microSD card
- four AA batteries
- USB cable
- USB-disc with user manual.
Each SV 977D has its factory calibration certificate and 36 months warranty card upon product registration.
Discover the possibilities
More information
Description
The SV 977D is a Class 1 Sound and Vibration Level Meter designed for advanced acoustic and vibration measurements in building acoustics, occupational noise, and environmental monitoring. It is equipped with a ½” MK 255 microphone, delivering a wide frequency range from 3 Hz up to 20 kHz, and offers excellent long-term sensitivity stability. The meter provides an extended measurement range up to 40 kHz for ultrasound analysis, making it suitable for industrial and medical applications. The SV 977D offers a total dynamic range from 16 dBA RMS to 140 dBA Peak (from the instrument’s noise floor to the maximum measurable level), while the IEC 61672-1 linearity range—measured with a margin above the noise floor—spans from 23 dBA RMS to 140 dBA Peak. This ensures both wide measurement capability and full compliance with the standard.
The meter is fully type approved to IEC 61672-1 Class 1. A wide range of accessories and a typical price of €4,000–€6,000 make the SV 977D a comprehensive and versatile solution for sound and vibration consultants.
Highlights
- All-in-one acoustic and vibration measurement: Combines wide-range sound, ultrasound, and vibration monitoring in a single Class 1 instrument.
- Advanced acoustic analysis: Supports A, B, C, Z, LF, U, and AU frequency weightings, Fast/Slow/Impulse time constants, and 1/1- and 1/3-octave filters (IEC 61260-1 compliant).
- Dual-function sound and vibration meter: Operates as a Class 1 vibration meter when connected to a sensor, compliant with ISO 20816-1.
- Wireless control and mobile app support: Equipped with Bluetooth® 5.2 for remote control and data access via apps, including Building Acoustics PRO (supports ISO 16283, RT60, and STIPA workflows).
- High-capacity data storage: Includes a 32 GB MicroSD card for storing time history data, WAV audio recordings, and project files for in-depth post-analysis.
- Rugged and field-ready design: Operates reliably in temperatures from –10 °C to +50 °C and up to 95% relative humidity, with over 16 hours of battery life using standard rechargeable AA batteries.
Key Features
Advanced Frequency Analysis
Unlock advanced analysis in every measurement.
The SV 977D provides real-time 1/1 and 1/3 octave frequency analysis, supporting both sound and ultrasound measurements up to 40 kHz. Time-domain recording to WAV format enables precise post-processing and advanced acoustic diagnostics in SvanPC++ software.
Class 1 Compliance
Certified accuracy for every environment.
The SV 977D meets IEC 61672-1:2013 Class 1 standards, delivering precise sound measurements with a high-quality, omni-directional microphone and detachable preamplifier. The instrument operates reliably from 23 dBA across a wide temperature range, ensuring full compliance and stability in demanding conditions.
Remote Communication
Wireless control for smart measurements.
The SV 977D features built-in Bluetooth® for seamless integration with mobile applications, allowing users to preview results, display spectrum analysis, and generate ISO-compliant reports directly on their smartphones. This wireless connectivity streamlines fieldwork and enhances measurement flexibility for building acoustics and environmental projects.
Applications
Building Acoustics
Efficient measurement of acoustic insulation.
The SV 977D captures precise time history spectra for RT60 and sound insulation calculations, supporting accurate acoustic analysis in accordance with ISO 16283. The Bluetooth®-enabled mobile application streamlines project creation and documentation, ensuring all measurement data and results are saved directly in the instrument’s memory.
Occupational Noise
Comprehensive workplace noise assessment.
The SV 977D enables precise measurement of workers’ noise exposure in compliance with ISO and OSHA standards, offering A- and C-weighted levels, audio recording, and 1/1 octave analysis for effective hearing protection selection. Advanced ultrasound capability supports monitoring in industrial and medical environments, while Supervisor software streamlines result evaluation and reporting.
Environmental noise
Outdoor monitoring with remote access.
The SV 977D transforms into a robust monitoring station for outdoor noise measurements, using an IP65-rated case and lightweight microphone protection. Integrated 4G connectivity and SvanNET service provide secure remote access and real-time status checks from any device, with optional meteorological data for comprehensive environmental assessment.
Options
Video
Discover SV 977D in action.
Watch an overview of the SV 977D’s main hardware features and see how it supports advanced measurement tasks.
Vibration Level Meter
See how quickly the SV 977D adapts for vibration analysis with simple sensor connection and intuitive operation.
Building Acoustics Meter
Discover the mobile application for building acoustics measurements with SV 977
