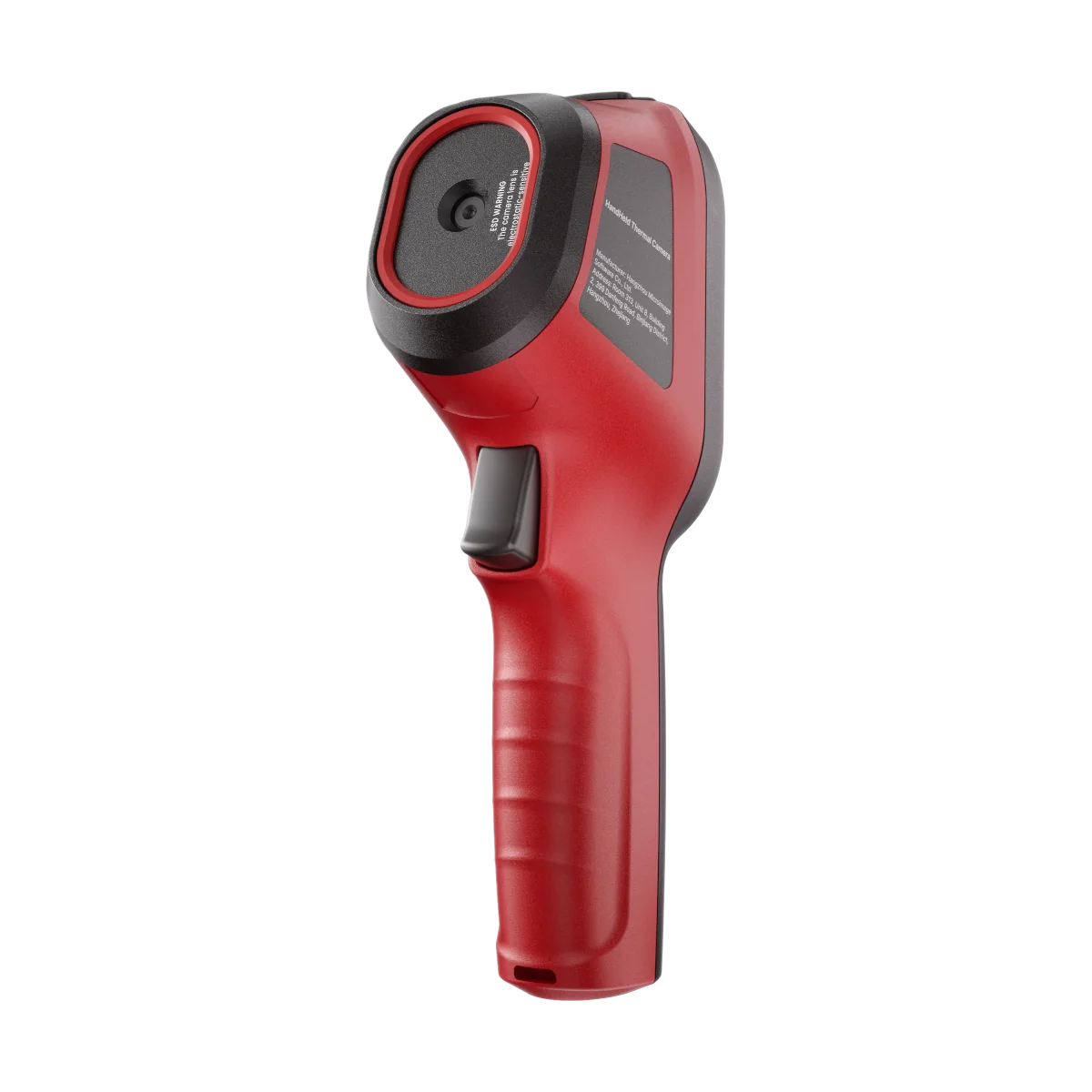

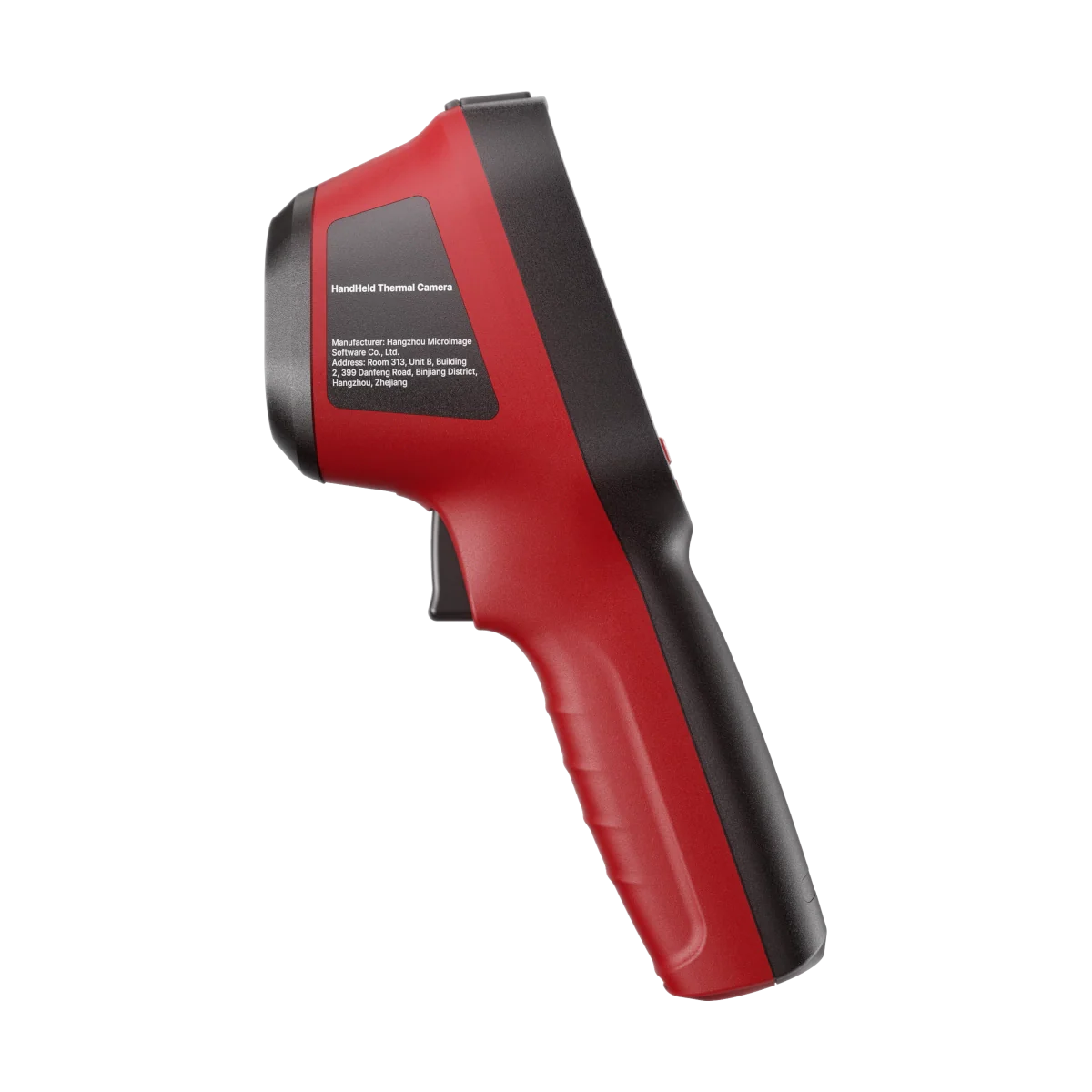

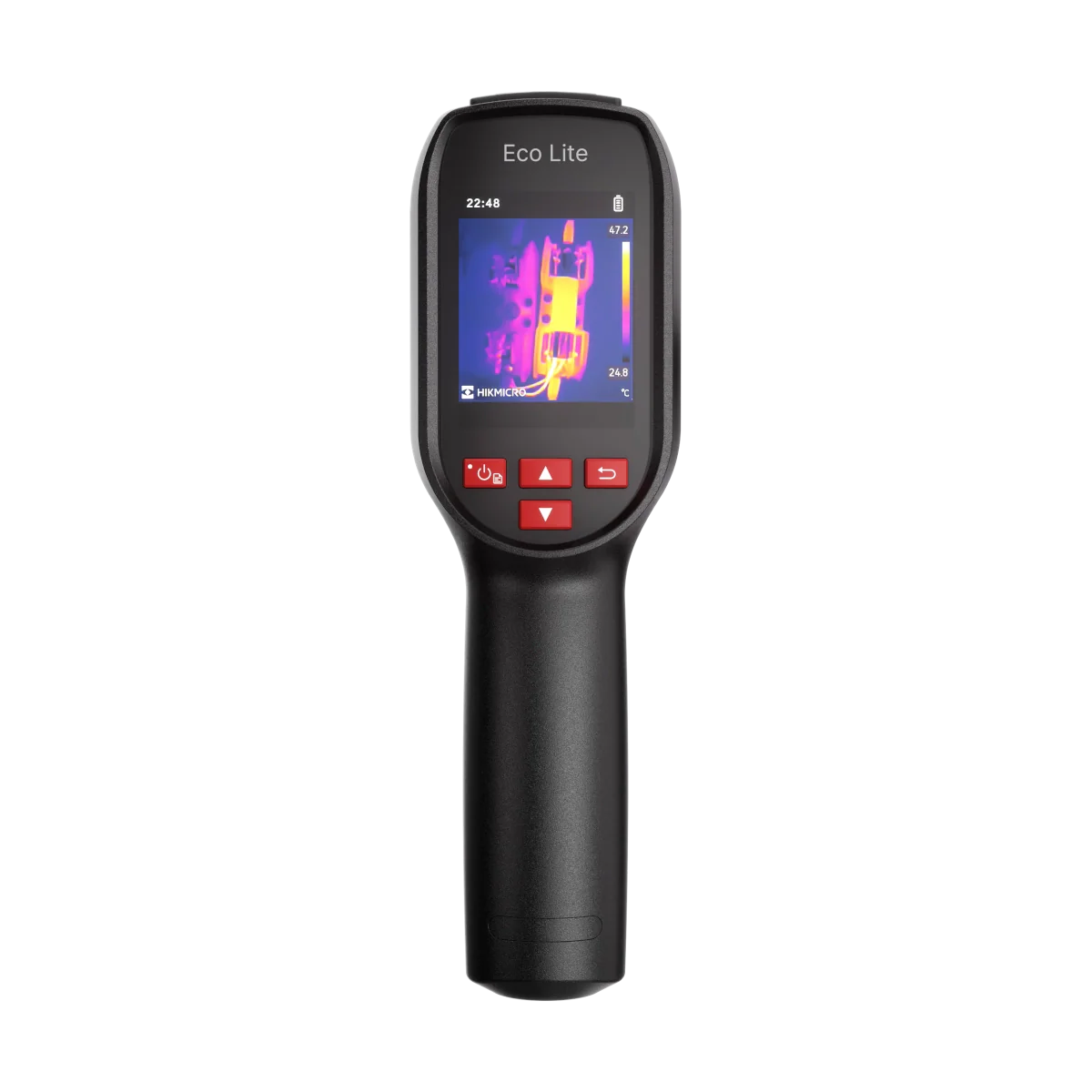

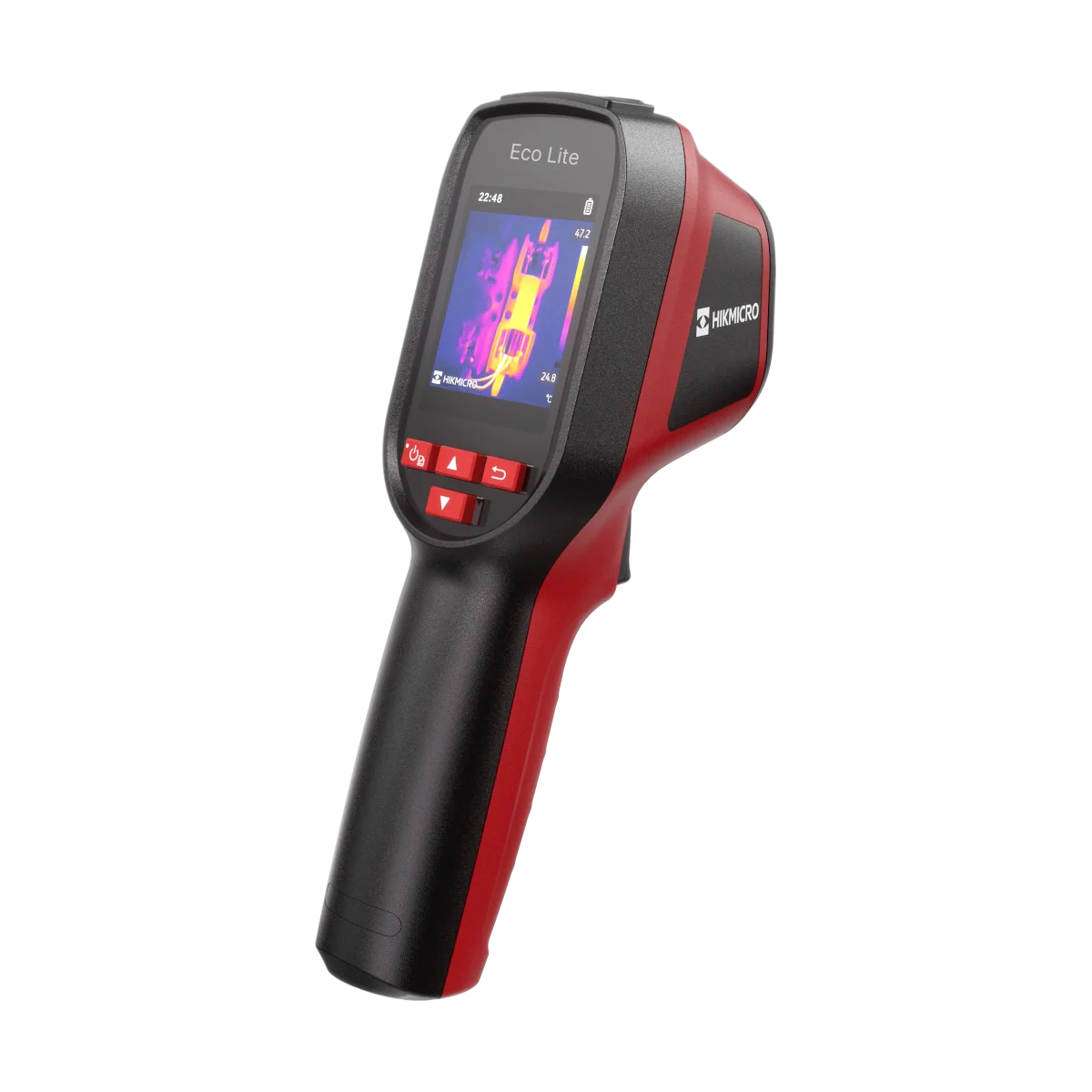

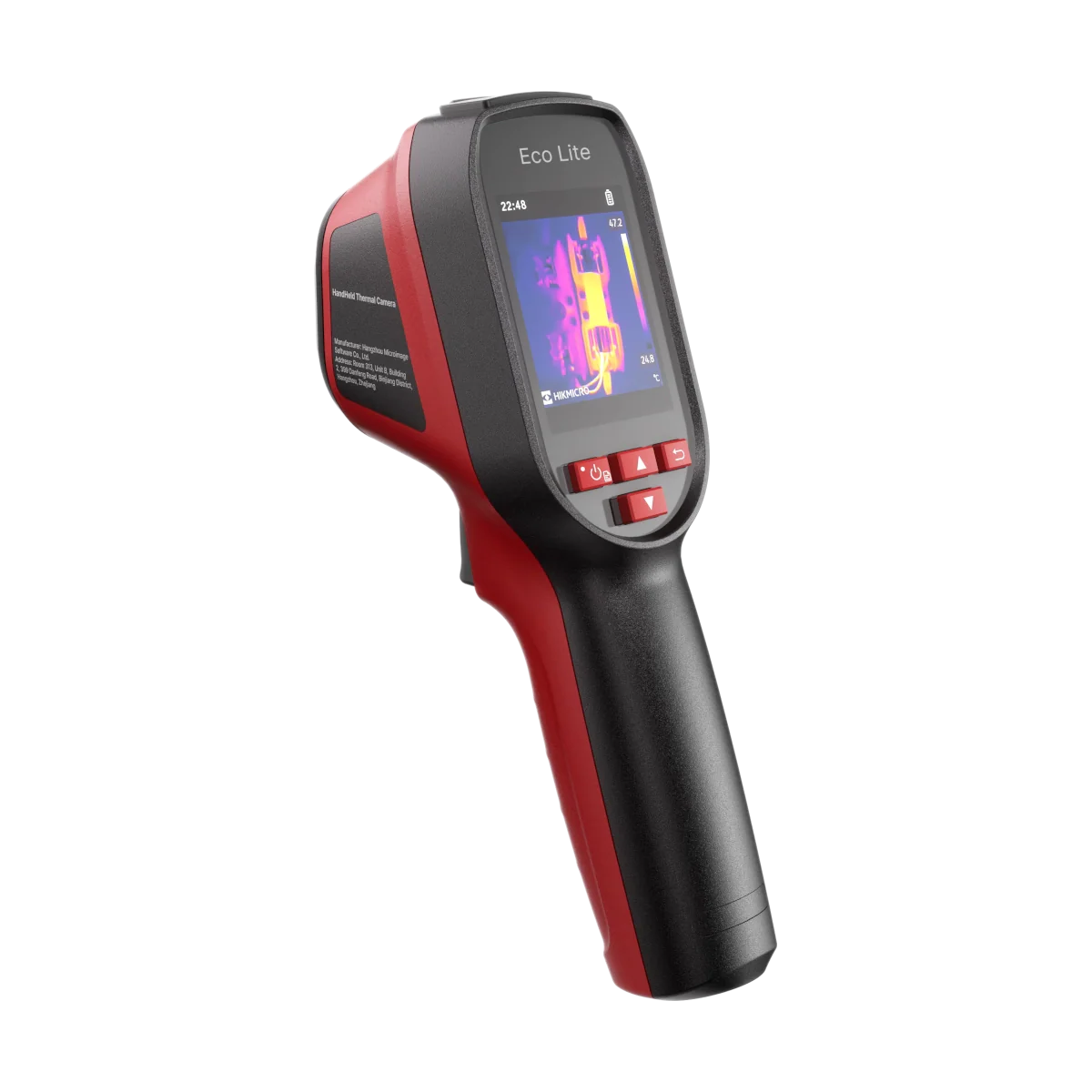

HIKMICRO Eco-Lite Handheld Thermography Camera
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Thermal resolution: 96 x 96 (9,216 pixels)
- Two temperature measurement methods: Thermometer Mode and Multiple Measurement Tools (Center Spot, Max Spot, Min Spot)
- Built-in 80M (user available storage space is less than the nominal capacity)
- Up to 14 hours continuous running
- NETD : ＜ 50mK (@ 25 °C,F#=1.0)
- 25 Hz image frequency
- Field of View (FOV): 50° × 50°
- Protection Level: IP54
%0ATwo%20temperature%20measurement%20methods:%20Thermometer%20Mode%20and%20Multiple%20Measurement%20Tools%20(Center%20Spot,%20Max%20Spot,%20Min%20Spot)%0ABuilt-in%2080M%20(user%20available%20stora...
){kind=link}
Discover the possibilities
More information
Description
This handheld thermal imager utilizes thermal imaging technology and is specifically designed for home temperature measurement applications. It offers comprehensive functionality while remaining extremely user-friendly, featuring a spot-temperature measurement mode, making it an excellent choice for those new to thermal imaging.
Features
- Thermal resolution: 96 x 96 (9,216 pixels)
- Two temperature measurement methods: Thermometer Mode and Multiple Measurement Tools (Center Spot, Max Spot, Min Spot)
- Built-in 80M (user available storage space is less than the nominal capacity)
- Up to 14 hours continuous running
- NETD : ＜ 50mK (@ 25 °C,F#=1.0)
- 25 Hz image frequency
- Field of View (FOV): 50° × 50°
- Protection Level: IP54
Visual Thermometer Display
Forget single-point checks. Replace boring numbers with visuals, revealing every insulation flaw in real-time on the full screen.
Dual-Mode Live Tracking
Prefer using a thermometer? No problem. Both modes support continuous real-time tracking of temperature fluctuations.
Multi-Scenario Versatility
One tool, multiple uses: From home kitchens and HAVC repairs to car maintenance, it effortlessly handles all your everyday inspection tasks.
Broad Temperature Coverage
Covering a vast range from -20°C to 550°C, no daily temperature anomaly is beyond your sight.
*-20°C to 550°C Temperature Range
High/Low Temperature Alarm
Add an alarm function your thermometer never had - know instantly when oven temperatures get too high.
High Precision Measurement
The exceptional thermal imaging sensor captures the slightest temperature changes as small as 0.05°C.
Enhanced IR Resolution
The 96×96 IR resolution displays temperatures for 9,216 pixels at once, paired with detail enhancement algorithms to improve image detail.
50°×50° Wide FOV
The 50°×50° wide-angle view allows you to quickly scan the entire floor, detecting underfloor heating with unparalleled efficiency.
25 Hz Smooth Imaging
With 25Hz smooth imaging technology, moving objects can be accurately captured, bidding farewell to the era of detecting one point every few seconds.
Flexible Color Options
5 distinct color palettes are at your fingertips. Highlight critical temperature differences stand out in any condition.
Customizable Measurements
Customize the emissivity, distance, and temperature measurement range for any object. Ensure every reading accurately reflects reality.
Long-Lasting Battery
2500 mAh built-in battery, 14-hour rechargeable battery life powers through long inspections, from all-day home checks to extended repair jobs on-site.
Rugged and Reliable
Built to withstand tough conditions, whether on a rainy yard or in a dusty workshop.
Lightweight and Portable
Ultra-lightweight and compact, it goes wherever you do. The anti-slip handle and secure wrist strap keep it safe and ready in hand, anywhere.
Documents
Options
Video
HIKMICRO Eco-Lite Video
Unboxing Video
How To
This handheld thermal imager utilizes thermal imaging technology and is specifically designed for home temperature measurement applications. It offers comprehensive functionality while remaining extremely user-friendly, featuring a spot-temperature measurement mode, making it an excellent choice for those new to thermal imaging.
Features
- Thermal resolution: 96 x 96 (9,216 pixels)
- Two temperature measurement methods: Thermometer Mode and Multiple Measurement Tools (Center Spot, Max Spot, Min Spot)
- Built-in 80M (user available storage space is less than the nominal capacity)
- Up to 14 hours continuous running
- NETD : ＜ 50mK (@ 25 °C,F#=1.0)
- 25 Hz image frequency
- Field of View (FOV): 50° × 50°
- Protection Level: IP54
Visual Thermometer Display
Forget single-point checks. Replace boring numbers with visuals, revealing every insulation flaw in real-time on the full screen.
Dual-Mode Live Tracking
Prefer using a thermometer? No problem. Both modes support continuous real-time tracking of temperature fluctuations.
Multi-Scenario Versatility
One tool, multiple uses: From home kitchens and HAVC repairs to car maintenance, it effortlessly handles all your everyday inspection tasks.
Broad Temperature Coverage
Covering a vast range from -20°C to 550°C, no daily temperature anomaly is beyond your sight.
*-20°C to 550°C Temperature Range
High/Low Temperature Alarm
Add an alarm function your thermometer never had - know instantly when oven temperatures get too high.
High Precision Measurement
The exceptional thermal imaging sensor captures the slightest temperature changes as small as 0.05°C.
Enhanced IR Resolution
The 96×96 IR resolution displays temperatures for 9,216 pixels at once, paired with detail enhancement algorithms to improve image detail.
50°×50° Wide FOV
The 50°×50° wide-angle view allows you to quickly scan the entire floor, detecting underfloor heating with unparalleled efficiency.
25 Hz Smooth Imaging
With 25Hz smooth imaging technology, moving objects can be accurately captured, bidding farewell to the era of detecting one point every few seconds.
Flexible Color Options
5 distinct color palettes are at your fingertips. Highlight critical temperature differences stand out in any condition.
Customizable Measurements
Customize the emissivity, distance, and temperature measurement range for any object. Ensure every reading accurately reflects reality.
Long-Lasting Battery
2500 mAh built-in battery, 14-hour rechargeable battery life powers through long inspections, from all-day home checks to extended repair jobs on-site.
Rugged and Reliable
Built to withstand tough conditions, whether on a rainy yard or in a dusty workshop.
Lightweight and Portable
Ultra-lightweight and compact, it goes wherever you do. The anti-slip handle and secure wrist strap keep it safe and ready in hand, anywhere.
