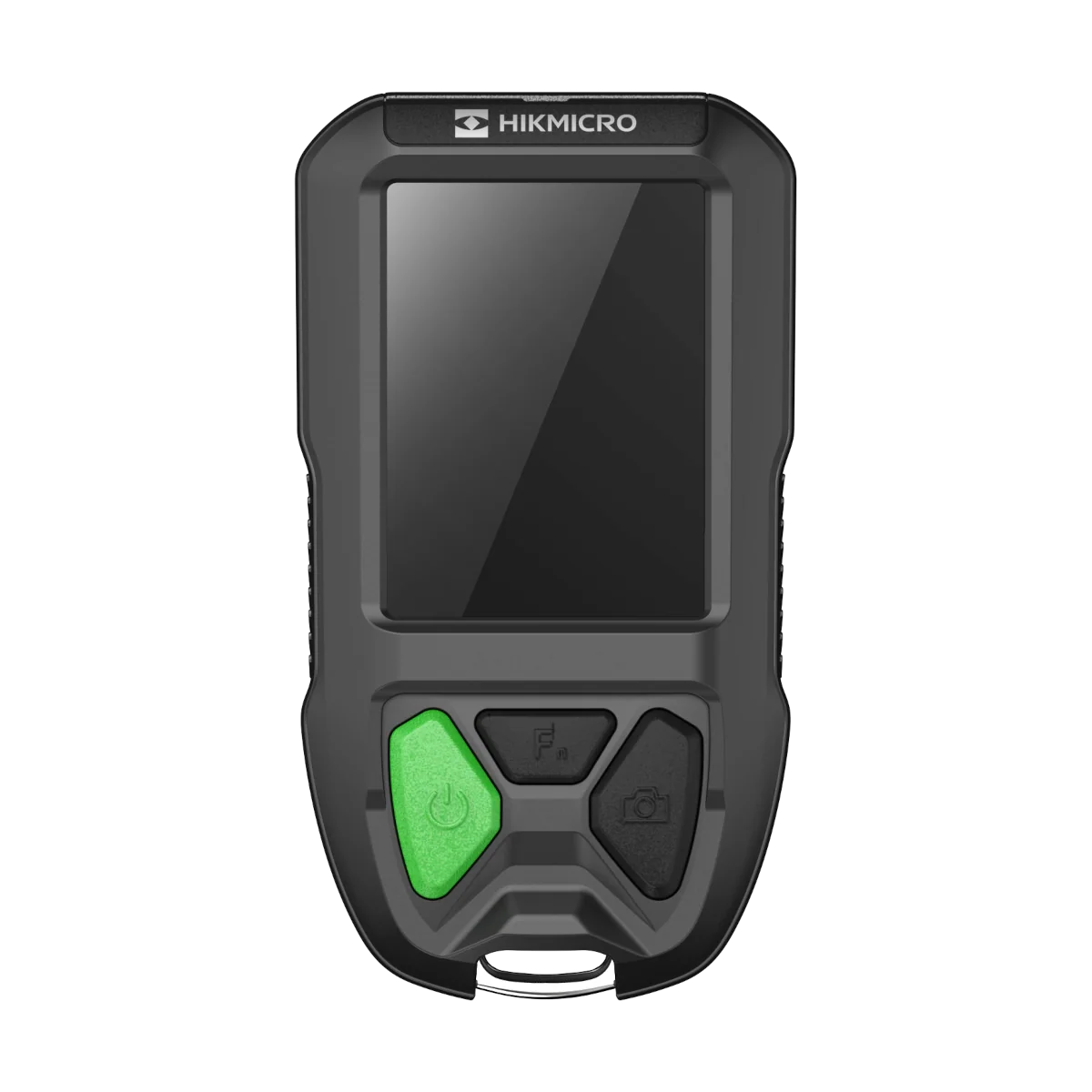

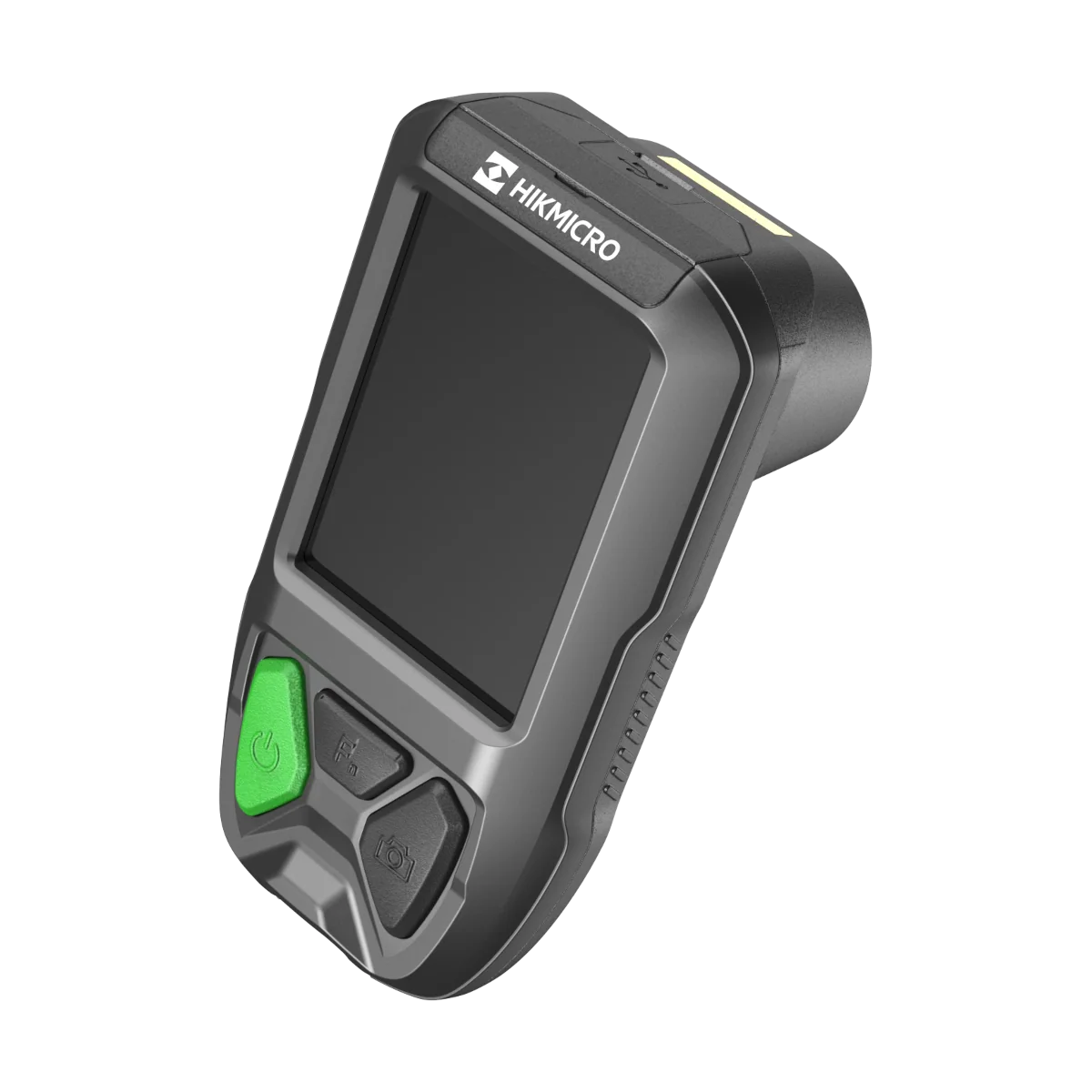

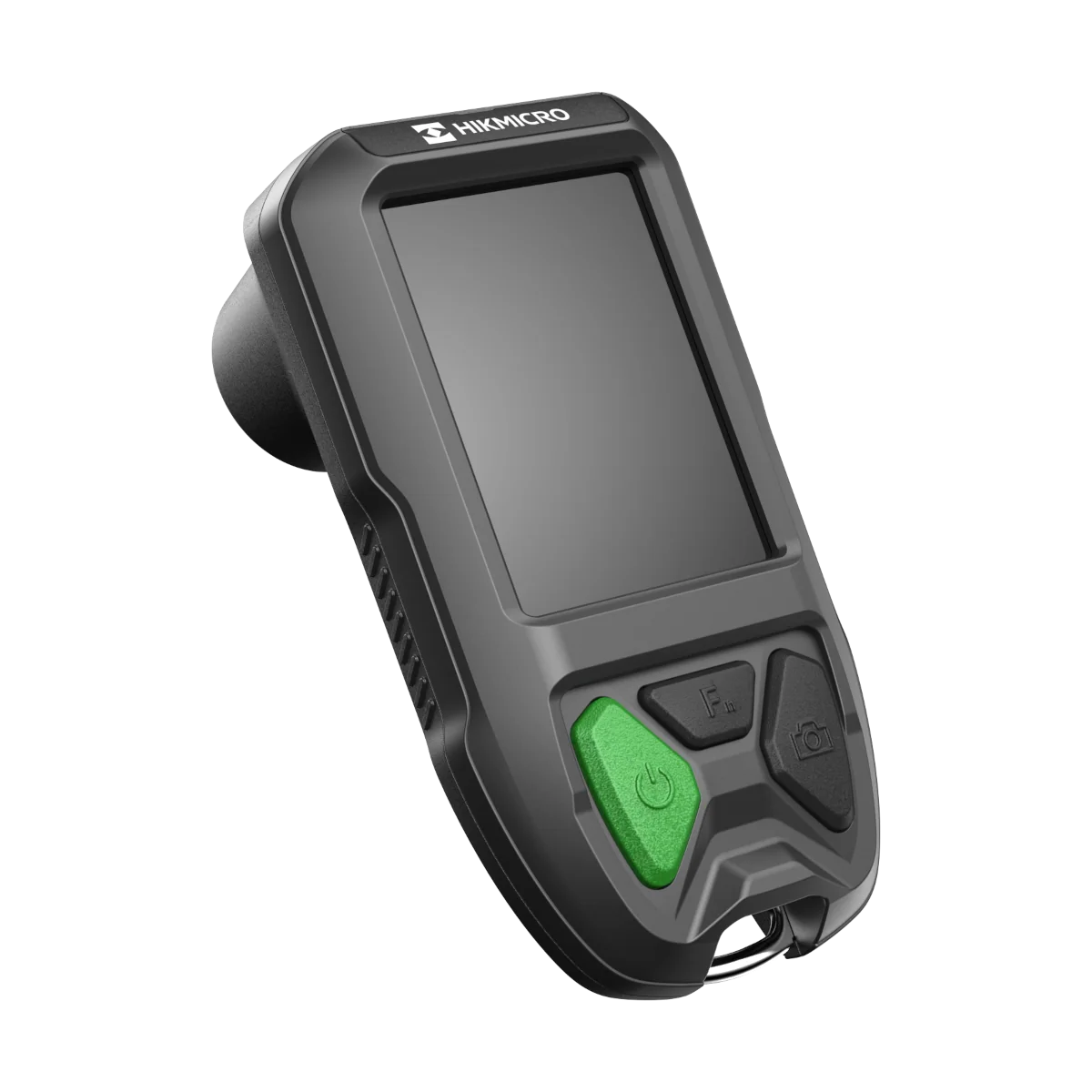

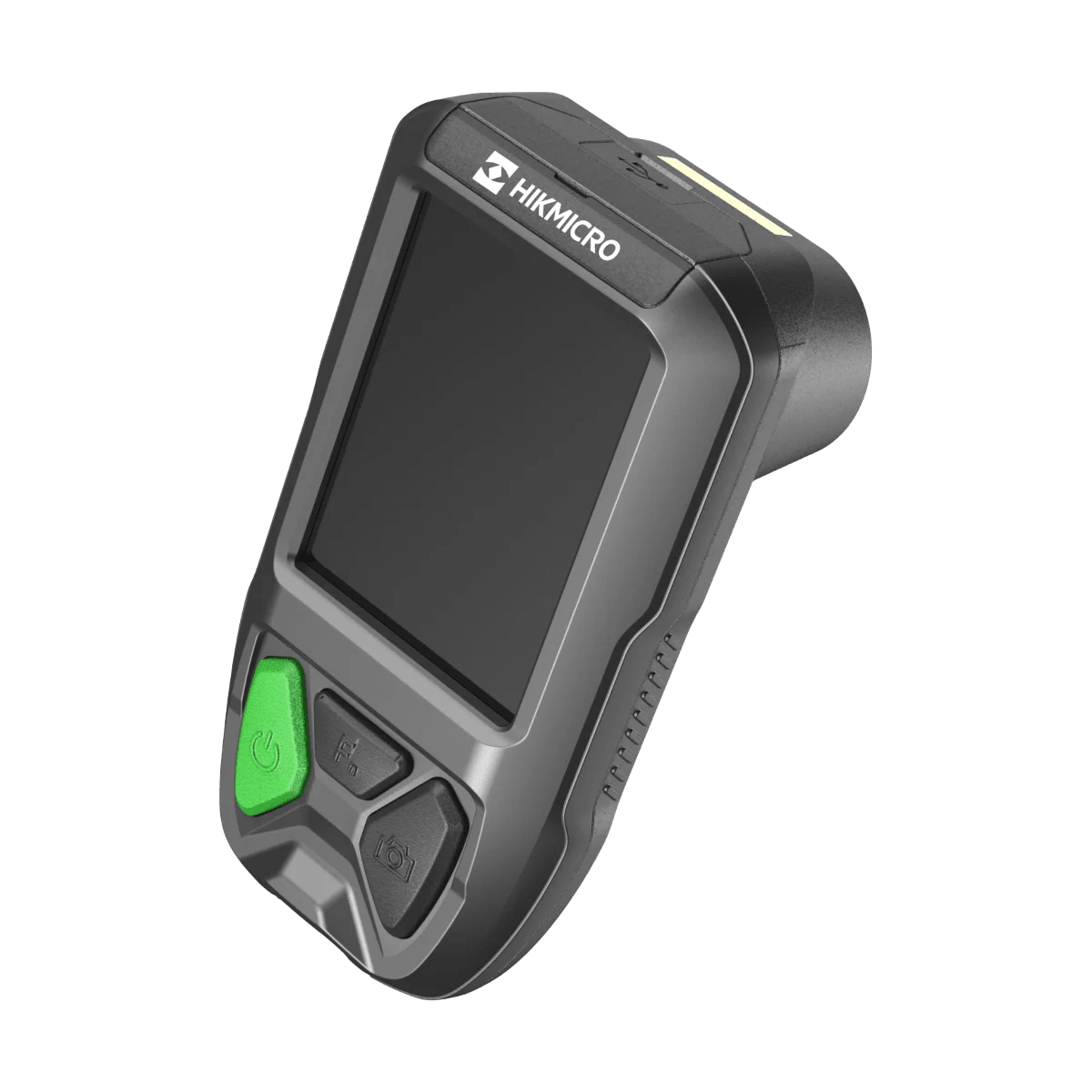

HIKMICRO FP31 Handheld Firefighting Thermography Camera

The HIKMICRO FP31 is a handheld temperature measurement product suitable for multiple scenarios. Equipped with a high-resolution detector, it delivers clear imaging and high thermal sensitivity, enabling effective detection of temperature variations and precise temperature measurement of targets. The handheld thermal imager supports multiple palettes, making it suitable for various on-site environments including fire detection, rescue, and buildings, etc.

Features

• Thermal resolution: 384 x 288 (110,592 pixels)
• NETD : ＜ 30 mK (@ 25°C, F#=1.0)
• Temperature measurement range : -20°C to 650°C
• Start up time: 6 second (with IR image), 8 second (with OSD)
• 25 Hz image frequency
• 3.2" LCD screen display
• Image enhancement technology on live view and captured images

SuperIR – Clearer Thermal Details

HIKMICRO’s SuperIR technology uses a neural network trained on a large thermal image dataset to enhance image clarity in real time. It improves detail recognition in complex fire scenes while maintaining smooth performance, helping users identify critical targets more reliably.

3.2” LCD Display in a Pocket-Sized Design – Large View, Fast Deployment

FP Series combines a 3.2-inch LCD with a truly pocket-sized form factor.

This allows clear on-screen viewing without sacrificing portability, enabling fast deployment and easy operation in demanding field environments.

Automatic Gain Control (AGC) – Improved Contrast in Low-Difference Scenes

Automatic AGC dynamically adjusts image contrast based on the scene’s temperature distribution. By expanding contrast in areas with subtle temperature differences, it makes hidden structures and thermal details easier to distinguish.

Outline Detail Enhancement (ODE) – Clearer Target Definition

ODE enhances target outlines without altering the underlying thermal data.
This improves object recognition in high-temperature areas, allowing experienced users to prioritize critical details when visual boundaries matter.

Laser Pointer & Distance Meter – Precise Target Marking and Measurement *FP31 Exclusive

FP31 integrates a visible laser pointer for intuitive target marking and a laser distance meter for on-screen distance measurement.
These tools support clearer communication and coordination during rescue, inspection, and command operations.

8 Color Palettes – Flexible Thermal Visualization

FP Series offers eight color palettes to adapt thermal visualization to different scenarios and user preferences.
This flexibility supports clearer interpretation and reduces visual fatigue during extended use.

Effortless Connection With HIKIMICRO Viewer

FP Series can be connected to the HIKMICRO Viewer app, enabling real-time image sharing and communication between firefighters on site and team members outside the scene.
By viewing thermal images remotely and exchanging information instantly, teams can improve coordination, support faster decision-making, and maintain better situational awareness during operations.

From Fires to More – Built for Multiple Critical Scenarios

FP Series is designed not only for firefighting, but also for industrial inspection, pipeline leak detection, forest fire prevention, and night search and rescue.
With reliable thermal performance across diverse environments, it supports users in identifying heat sources, anomalies, and hidden risks wherever visibility is limited.

Professional Accessories for Safer and More Efficient Operation

FP Series supports a range of professional accessories designed for real-world operations, including vehicle charging , straps, and retractable lanyards.
These accessories help improve operational efficiency, keep the device secure during movement, and reduce distractions—allowing users to stay focused on the task and their safety.

HIKMICRO FP31 Datasheet

HIKMICRO FP SERIES

From Fires to More - Always Reliable
