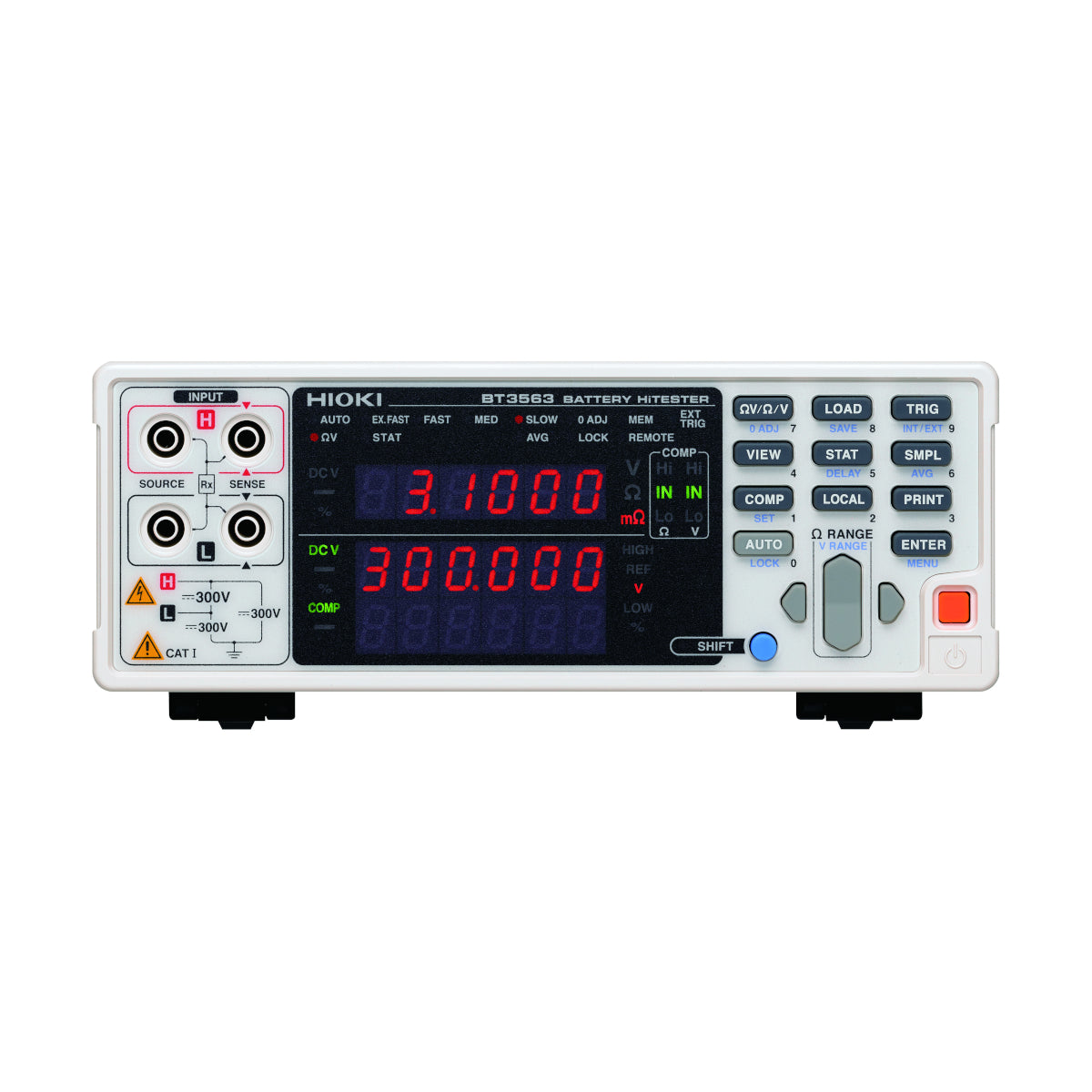

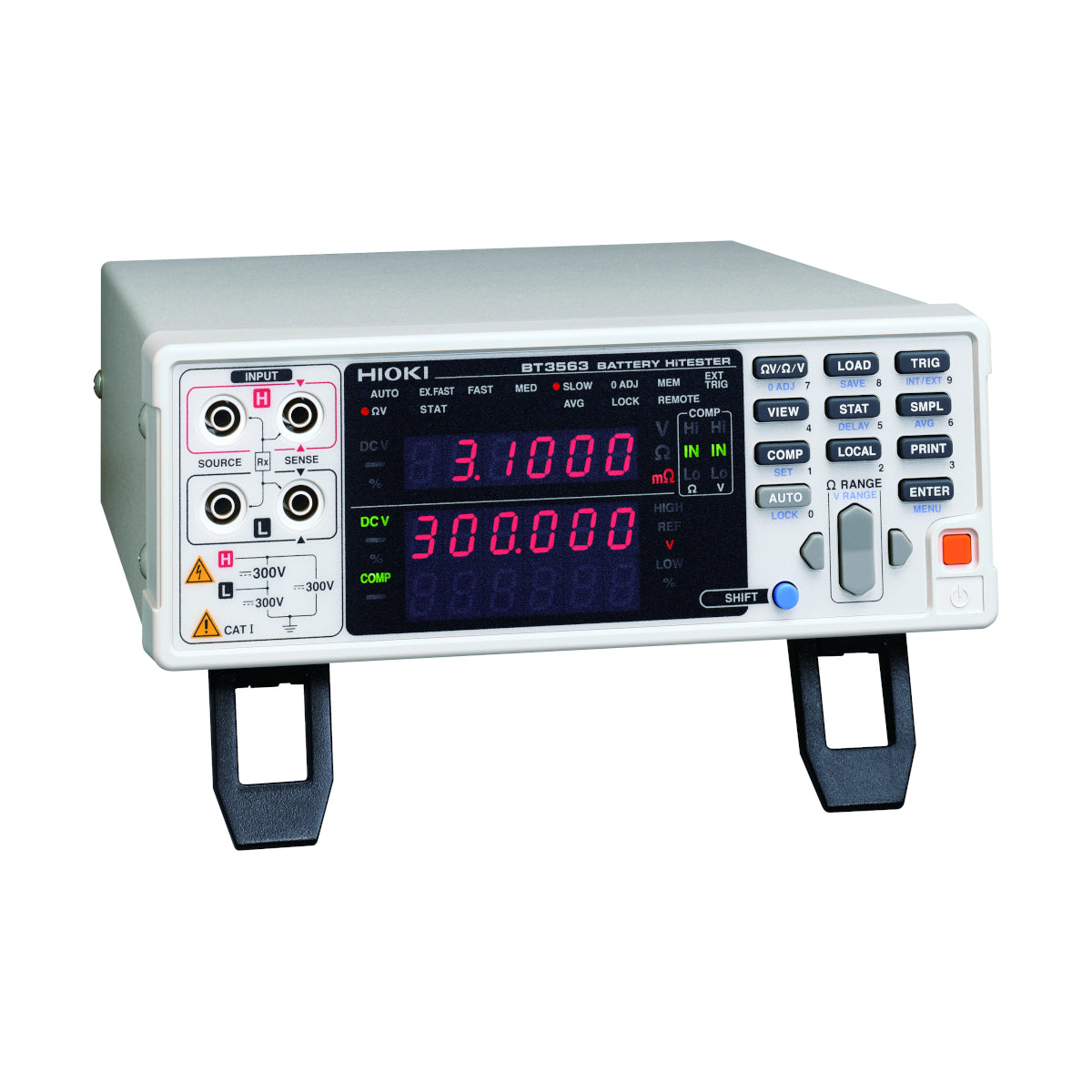

Hioki BT3563-01 Battery HiTester
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- 3 mΩ to 3000 Ω/300 V DC Battery Testers for Production Line Testing of High Voltage Battery Packs and Modules
- Built in GP-IB and analog output
Discover the possibilities
More information
Description
Hioki benchtop battery testers support simultaneous high-speed measurement of internal resistance and battery voltage for the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries, and other battery packs for high voltage applications. The BT3563 battery internal resistance tester can measure the voltage and resistance of battery modules, high voltage battery packs, fuel cell stacks and other large batteries up to 300 V.
Key Features
- Measure high-voltage battery packs up to 300V
- Measure from 0V DC to ±300 V DC (minimum resolution 10 μV)
- Measure from 0 Ω to 3.1 kΩ (minimum resolution 0.1 μΩ)
- Production line testing of high-voltage battery packs and battery modules
- Large (low-resistance) cell testing
- Choice of PC interfaces for full remote operation
Note: The comparison threshold values depend on the battery manufacturer, type, and capacity, and these must be established by the user.
