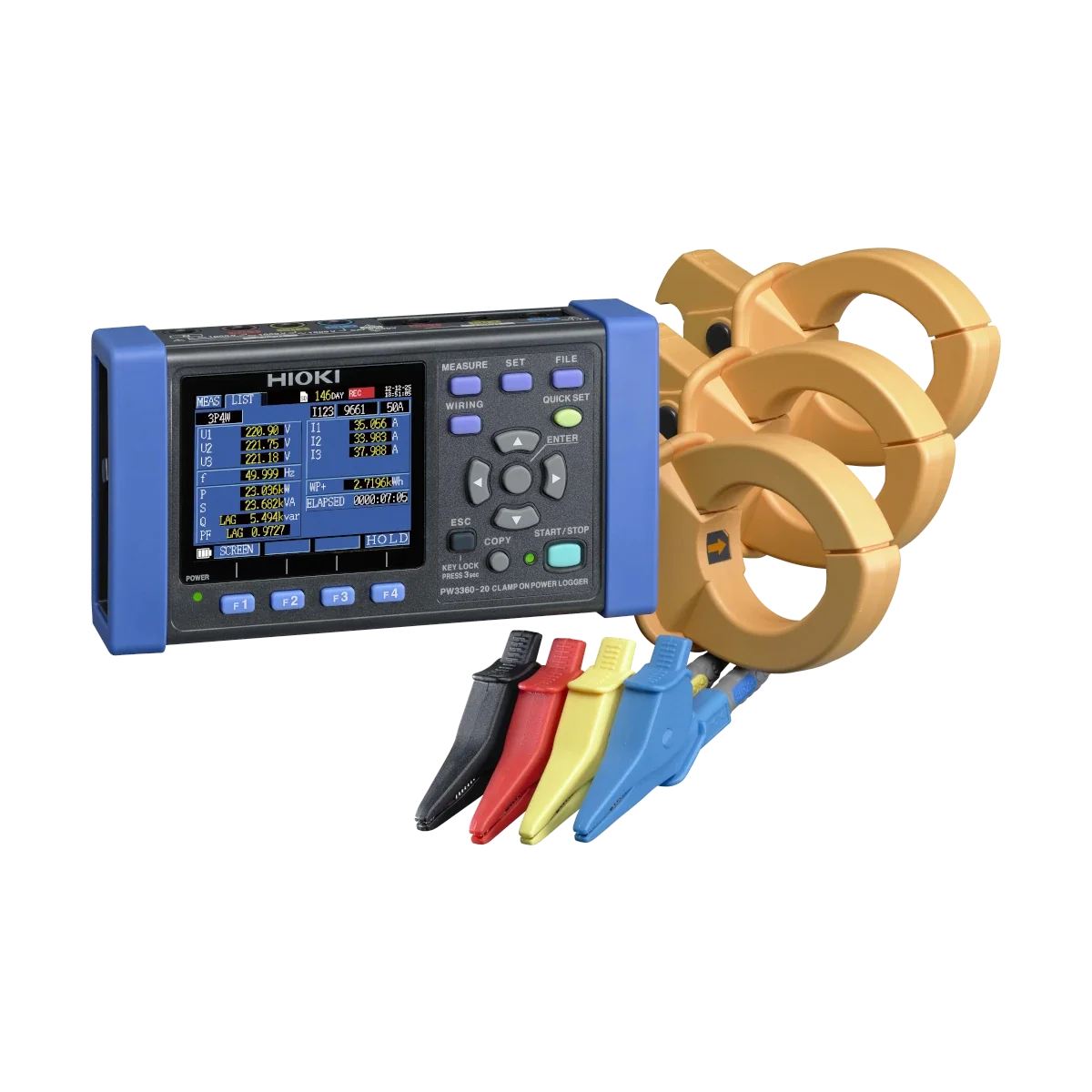

Hioki PW3360-20 Clamp On Power Logger
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- 0.4% active power accuracy (without current sensor)
- 90 V to 780 V AC effective voltage range
- 50 mA to 5 kA effective current measurement range
- Long-term stand-alone logging to SD card
- Battery or DC powered
%0A90%20V%20to%20780%20V%20AC%20effective%20voltage%20range%0A50%20mA%20to%205%20kA%20effective%20current%20measurement%20range%0ALong-term%20stand-alone%20logging%20to%20SD%20card%0ABattery%20or%20D...
){kind=link}
Discover the possibilities
More information
Description
Hioki Clamp On Power Meters are multi-channel power measuring devices utilizing clamp sensor input to accurately and safely measure power on single-phase to three-phase lines. The PW3360 compact 3-Phase 4-Wire energy loggers monitor power demand and other power parameters to aid in energy audits and validate energy saving measures.
Key Features
- Supports single to three-phase, 4-wire circuits
- Measure between 90 V to 780 V
- Simultaneously measure up to three single-phase, 2-wire circuits (in the same power system)
- Slim, compact design that can be placed anywhere
- Store months of data on SD cards
- The QUICK SET function guides you in making the right connections

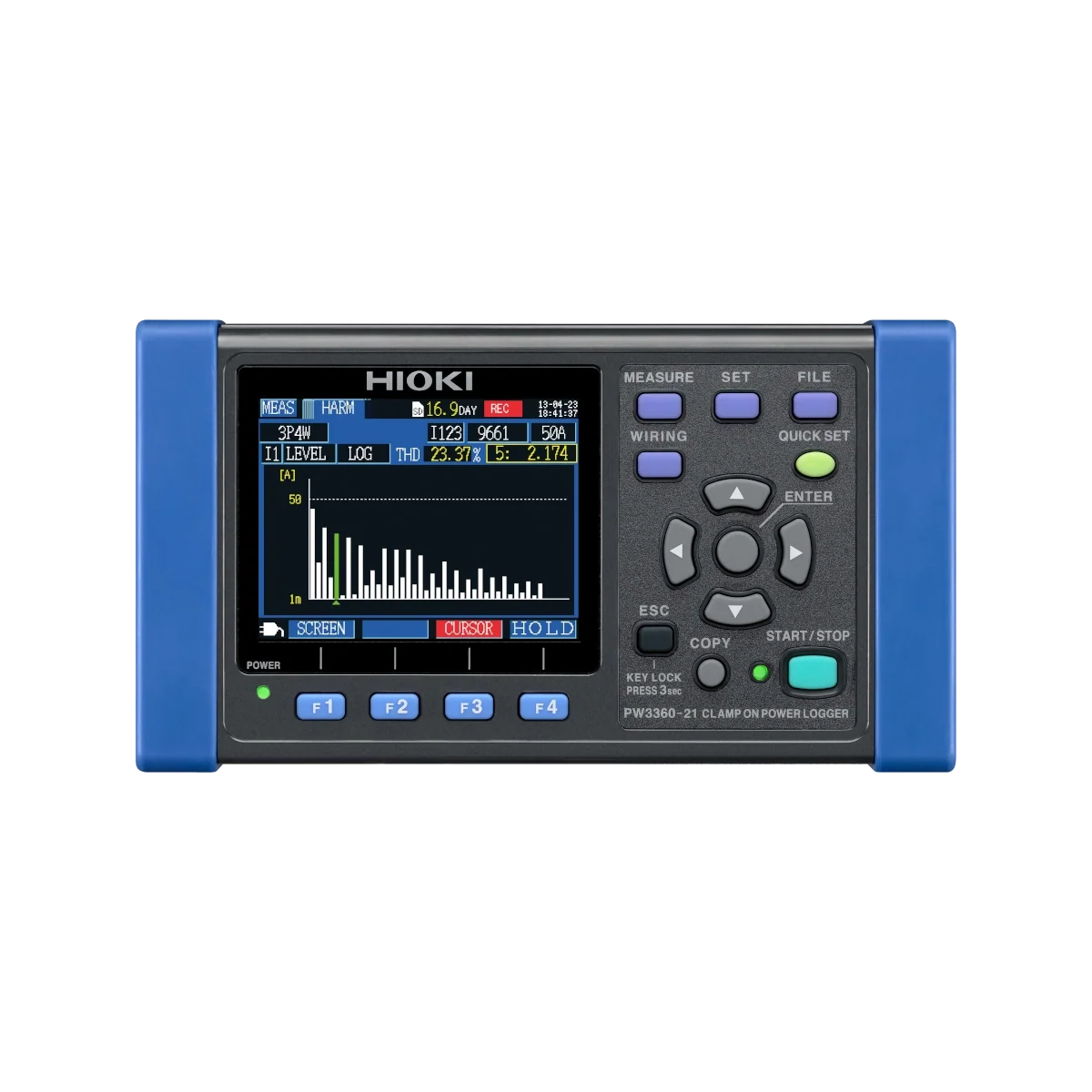

- Choose PW3360-21 for harmonic measurements up to the 40th order

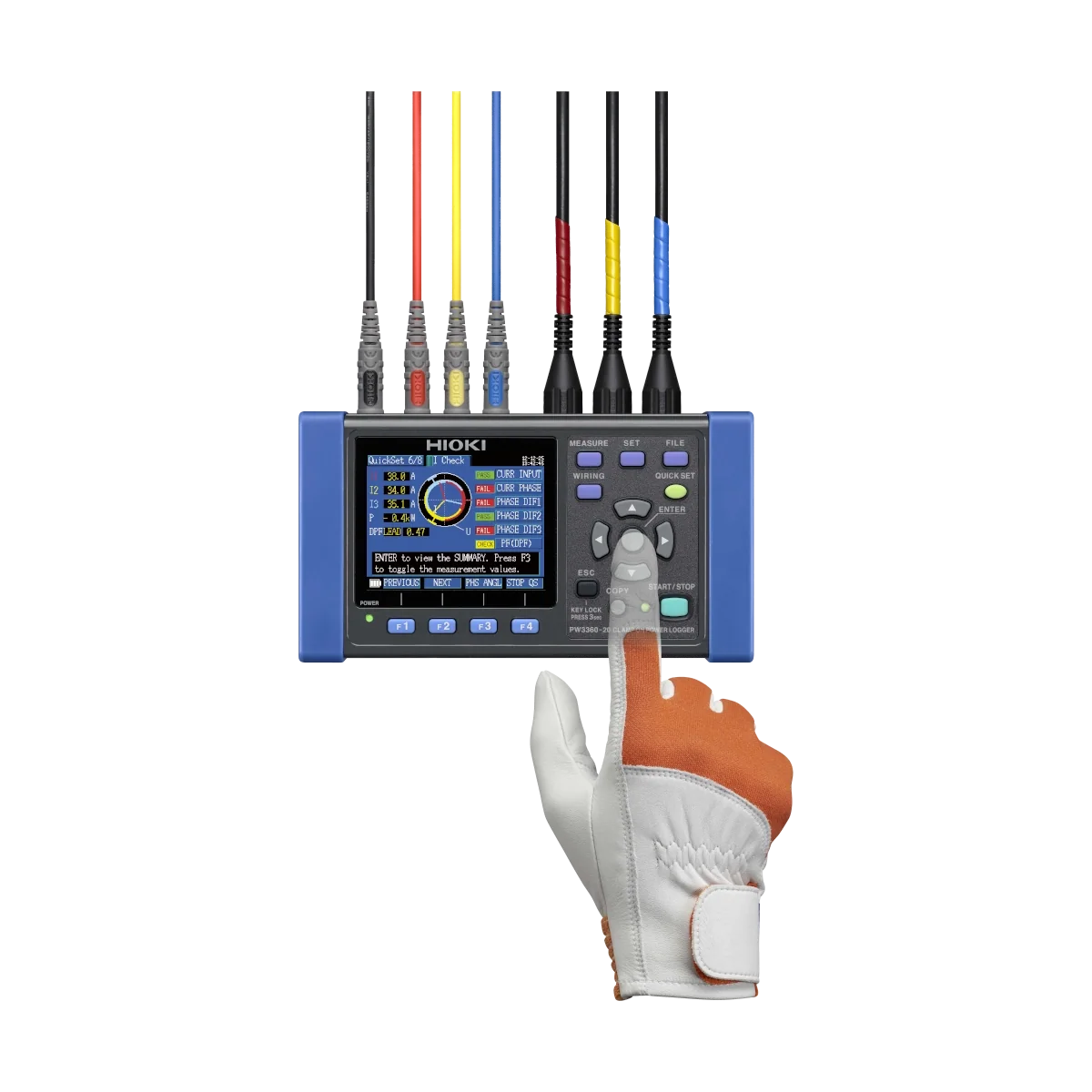

Navigate clamp-on power logger operation with graphical, easy-to-use displays of wiring procedures
The PW3360’s QUICK SET feature is an on-screen guide that walks you through the setup process, right up to starting measurement. Even if you’re unaccustomed to how clamp-on power loggers work, you’ll be able to easily configure and connect the instrument for 3-phase power measurement. In addition, by alerting you to any wiring mistakes, the device’s “wiring check” function serves to prevent measurement errors that are caused by undetected wiring mistakes.

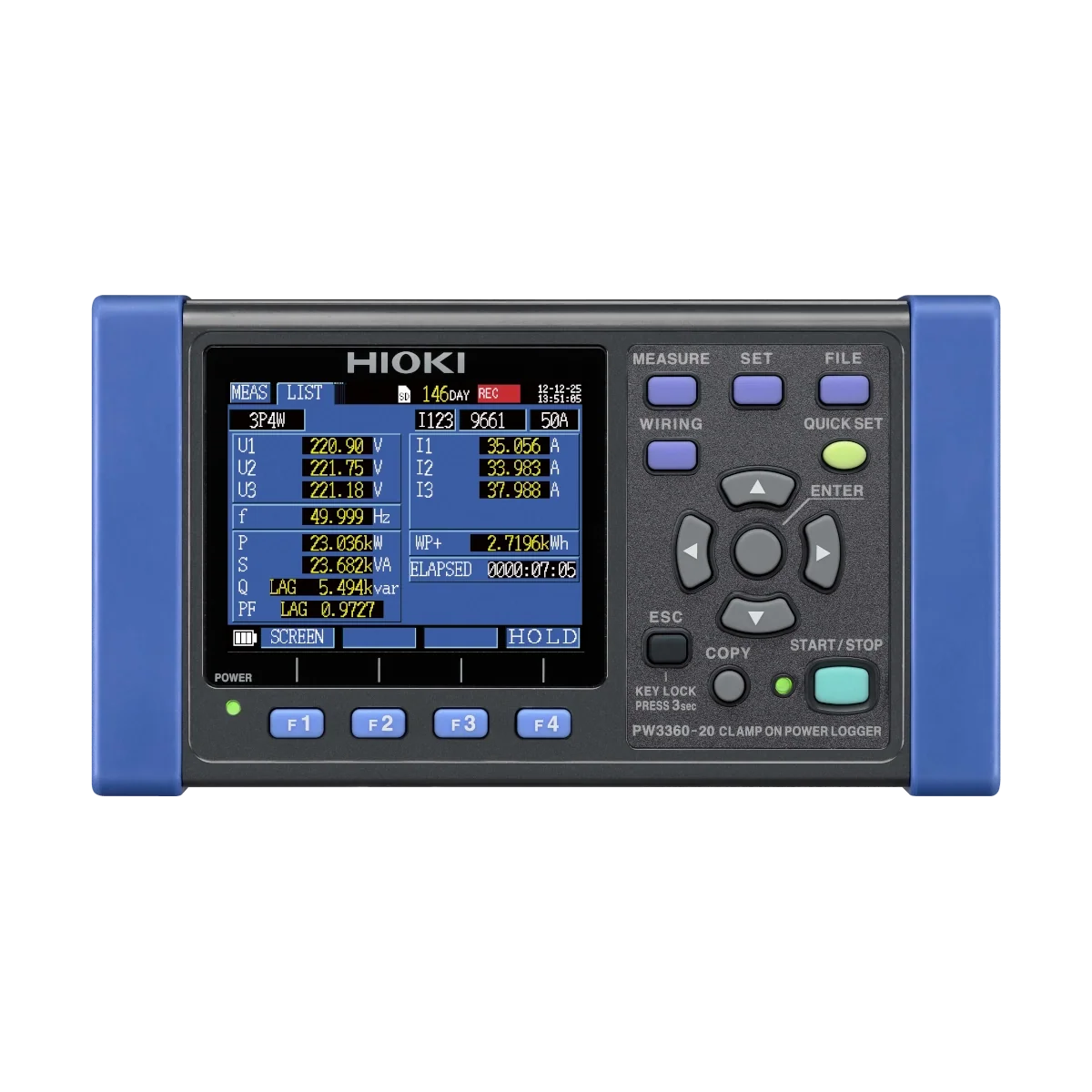

Power logger functionality for displaying measurement results as a graph so you can review them at a glance
The PW3360 displays recorded measured values as a graph for convenient use in power management. In addition to instantaneous measured values, you can review maximum, minimum, and average values by moving the cursor on the demand and trend graph displays.
A portable power logger that’s small enough to use in a confined cubicle
This power logger is an essential tool for power-saving activities. Thanks to a compact design that weighs just 550 g, it’s easy to take into the field and install in confined locations.
Get results from the job site in real-time, GENNECT One SF4000
Capture data on the PC while testing remotely
Documents
Options
Video
3P4W Power Logging | PW3360-20 Clamp On Power Logger
The Hioki PW3360-20 Clamp On Power Logger is a 1P2W to 3P4W power logger with 2GB SD card data storage for energy audits and monitoring energy usage. Measure up to 780V, 5000A or 9MW of power to verify the effectiveness of energy saving initiatives.
Hioki Clamp On Power Meters are multi-channel power measuring devices utilizing clamp sensor input to accurately and safely measure power on single-phase to three-phase lines. The PW3360 compact 3-Phase 4-Wire energy loggers monitor power demand and other power parameters to aid in energy audits and validate energy saving measures.
Key Features
- Supports single to three-phase, 4-wire circuits
- Measure between 90 V to 780 V
- Simultaneously measure up to three single-phase, 2-wire circuits (in the same power system)
- Slim, compact design that can be placed anywhere
- Store months of data on SD cards
- The QUICK SET function guides you in making the right connections
- Choose PW3360-21 for harmonic measurements up to the 40th order
Navigate clamp-on power logger operation with graphical, easy-to-use displays of wiring procedures
The PW3360’s QUICK SET feature is an on-screen guide that walks you through the setup process, right up to starting measurement. Even if you’re unaccustomed to how clamp-on power loggers work, you’ll be able to easily configure and connect the instrument for 3-phase power measurement. In addition, by alerting you to any wiring mistakes, the device’s “wiring check” function serves to prevent measurement errors that are caused by undetected wiring mistakes.
Power logger functionality for displaying measurement results as a graph so you can review them at a glance
The PW3360 displays recorded measured values as a graph for convenient use in power management. In addition to instantaneous measured values, you can review maximum, minimum, and average values by moving the cursor on the demand and trend graph displays.
A portable power logger that’s small enough to use in a confined cubicle
This power logger is an essential tool for power-saving activities. Thanks to a compact design that weighs just 550 g, it’s easy to take into the field and install in confined locations.
Get results from the job site in real-time, GENNECT One SF4000
Capture data on the PC while testing remotely
3P4W Power Logging | PW3360-20 Clamp On Power Logger
The Hioki PW3360-20 Clamp On Power Logger is a 1P2W to 3P4W power logger with 2GB SD card data storage for energy audits and monitoring energy usage. Measure up to 780V, 5000A or 9MW of power to verify the effectiveness of energy saving initiatives.
