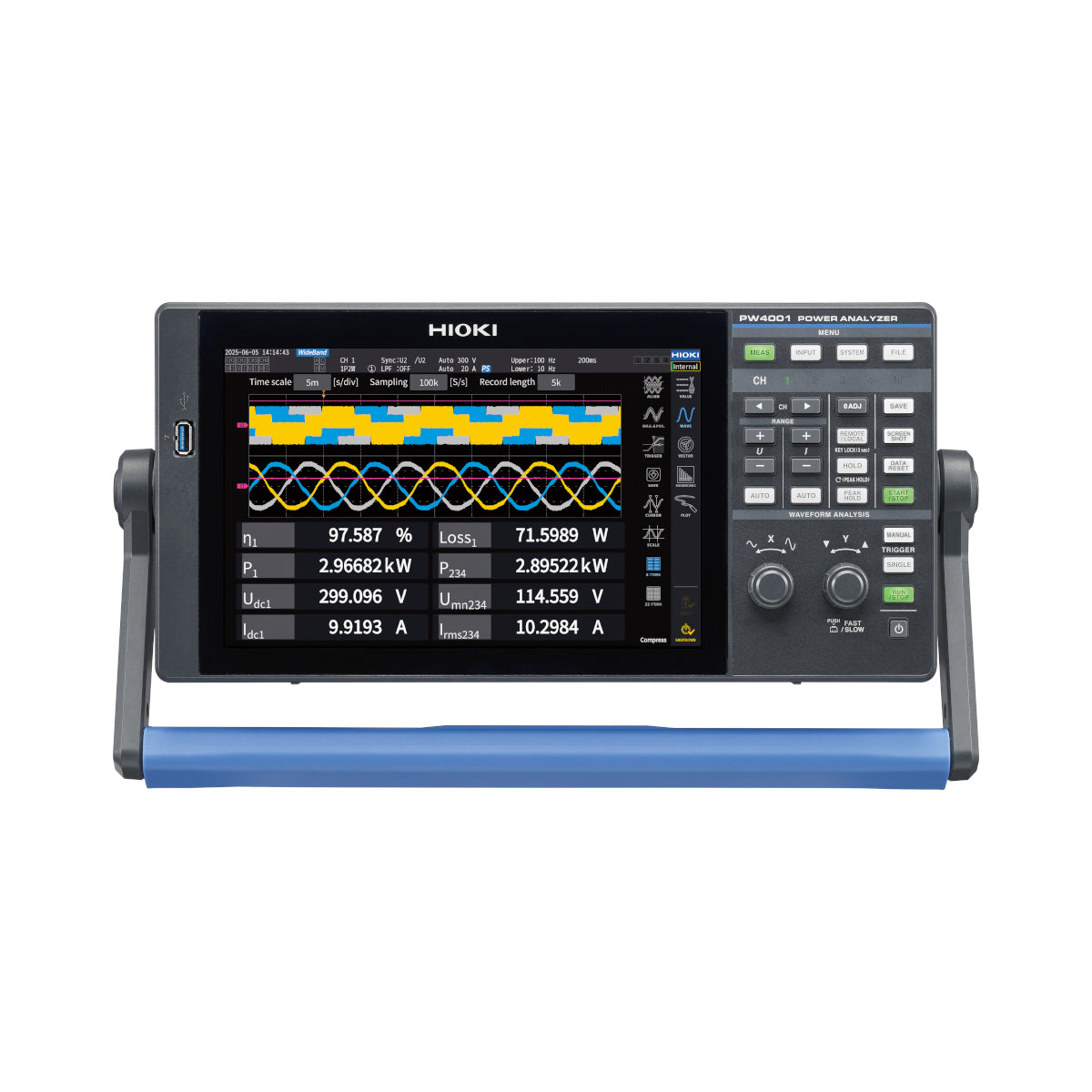

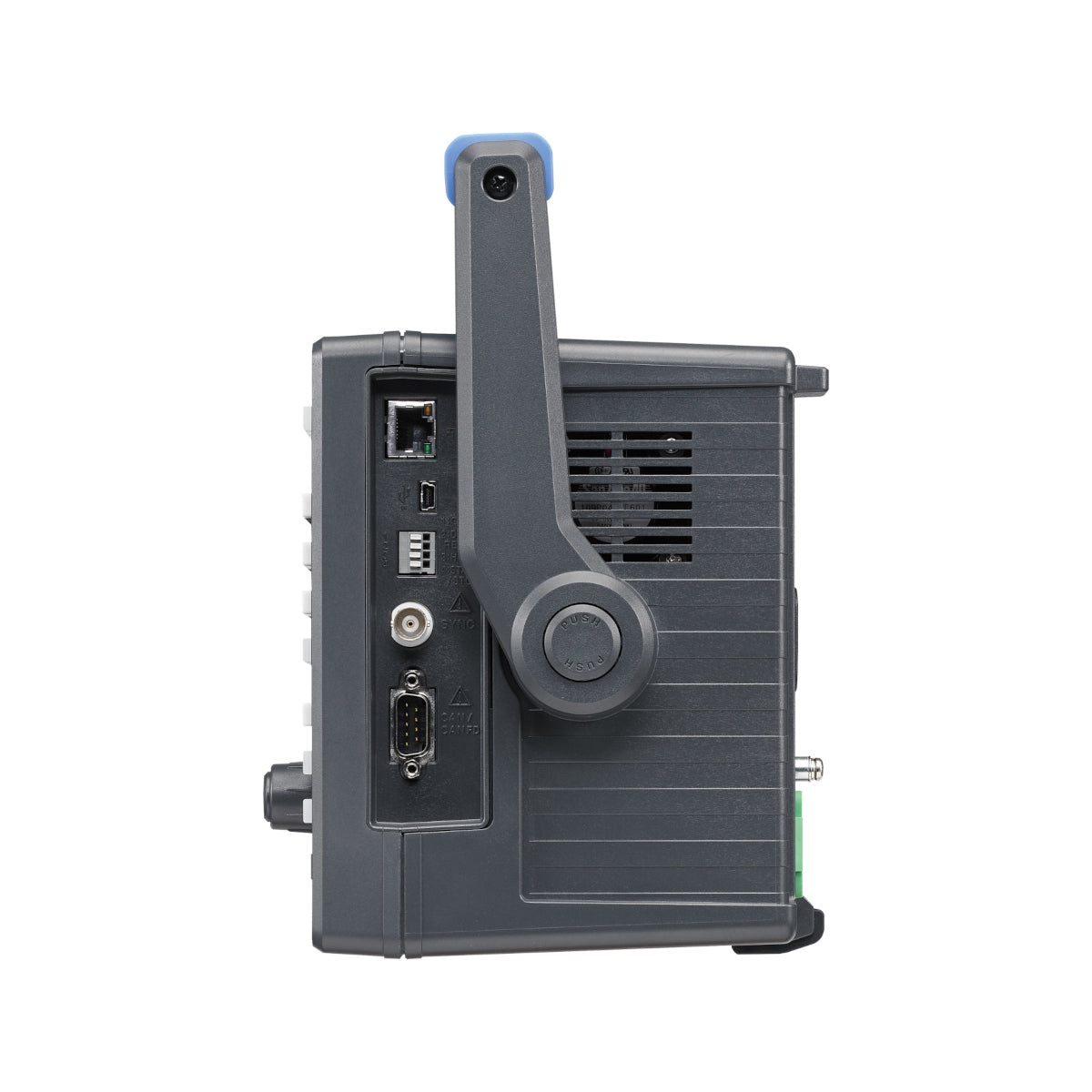

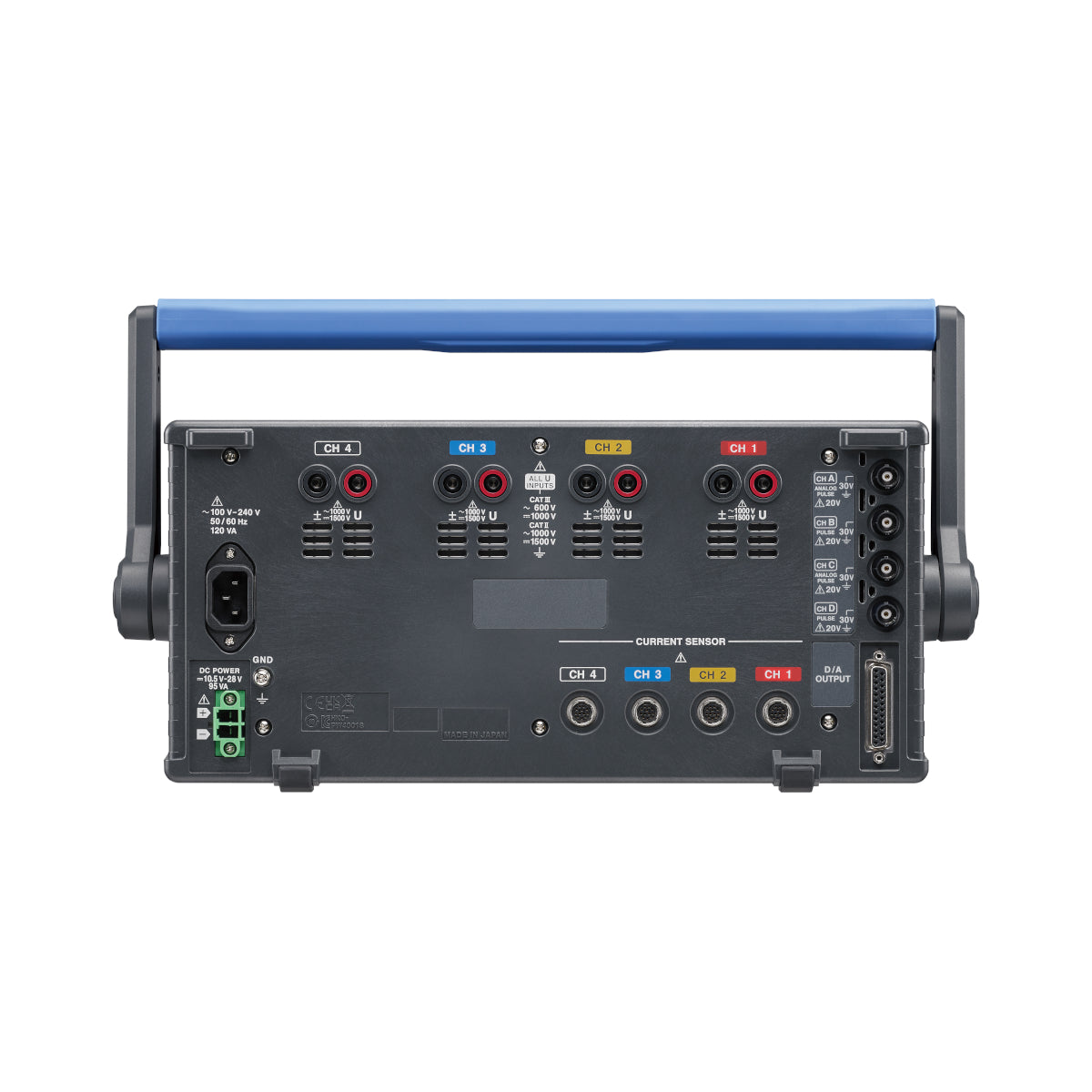

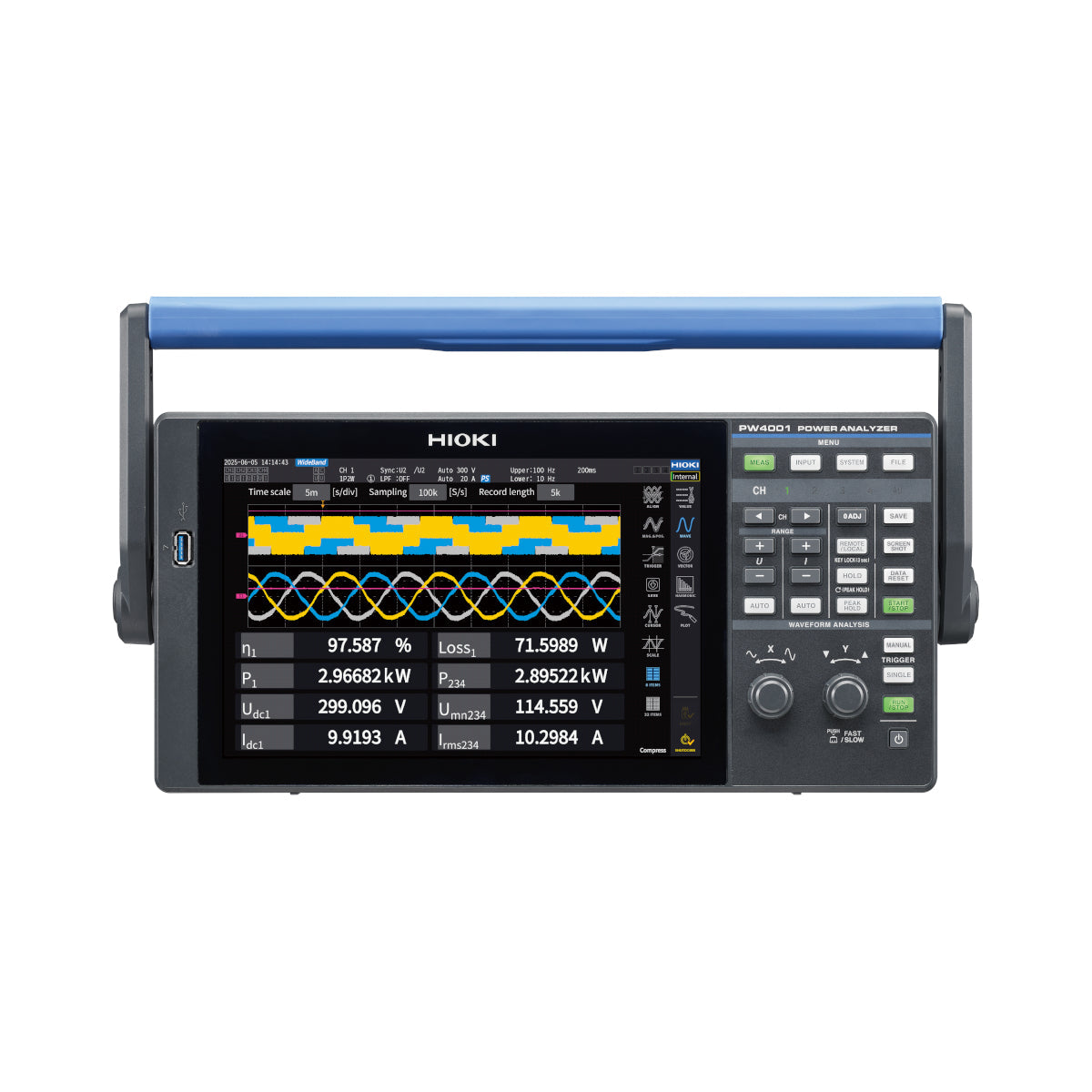

Hioki PW4001-04 Power Analyzer / External power source
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Portable 4-channel power analyzer with ±0.04% basic accuracy for vehicle power measurement
- External power source
Discover the possibilities
More information
Description
Precision and Portability Perfectly Combined
The PW4001 is a high-precision, portable 4-channel power analyzer that offers Hioki’s highest-ever DC accuracy of ±0.04%. Additionally, its measurement bandwidth extends up to 600 kHz, with accuracy specifications maintained across this entire frequency range, ensuring reliable performance from DC to high-frequency applications. Despite its portability, it delivers the measurement accuracy required in research and development as well as in production environments, making it equally suitable for field testing, laboratory evaluation, and production line inspection.
Key Features
- Basic accuracy: ±0.04%
- Operatable temperature range: -20°C to 50°C
- Frequency bandwidth: DC, 0.1 Hz to 600 kHz
- CAN / CAN FD output and input
- Auto phase shift correction for Hioki current sensors
Lab-grade precision, Field-ready
From xEV fuel and energy consumption testing to DC-DC converter and inverter efficiency evaluation, as well as motor efficiency analysis, the PW4001 provides exceptional reliability and versatility, making it a new-generation portable power analyzer designed for a wide range of measurement scenarios.
Engineered for the tasks you face, wherever you work
Capture transient power changes with high precision
Evaluate motor and inverter efficiency with 1 ms data updates and 600 kHz bandwidth. Even transient power losses are measured accurately.
- Capture motor power fluctuations with millisecond precision
- Evaluate efficiency for high-frequency inverters
- Automatically detect charge and regeneration to calculate efficiency
Reduce setup time in drive range testing
Ensure accurate measurements even at -7°C. With direct CAN voltage input and flexible, vehicle-side installation, test setup is faster and safer.
Accuracy maintained at -7°C. Install directly in cold chambers
Use a compact setup near the vehicle and expand channels with synced units
Acquire battery voltage via CAN, safe and simple
Use it on the road Designed for real-world driving tests
Measure power without vehicle modification. OBD-II input and 10.5 V to 28 V DC power supply make in-vehicle use easy.
Operates from −20°C to +50°C, ready for harsh environments
Run on DC power for easy in-vehicle installation
Use OBD-II CAN bus for safe, real-time vehicle data acquisition
Ensure production quality with waveforms and numbers
Combining waveforms and numerical values ensures reliable, quantifiable quality in mass production.
Verify efficiency with ±0.04% accuracy at DC and 50 Hz/60 Hz
Direct voltage input up to 1500 V DC
2.5 MHz sampling enables waveform evaluation of switching events
Half the Size, Maximum Precision
The slim design clamp current sensor ensures easy installation even in tight spaces.
Complex tasks in the engine room become simple and efficient, dramatically reducing preparation time for fuel efficiency and performance testing. Not only does it reduce setup time, but it also minimizes the risk of sensor damage from forced clamping between narrow spaces.
Fully compliant with the WLTP and SAE J1634 standards, it provides precise AC/DC current measurements up to 200 A with an impressive DC accuracy of 0.07%.
