Keithley 7700 20 channel multiplexer
Tektronix

Tektronix 7700 27xx Module

Sale price12 712 SEK
15,890 incl. VAT
Available

Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se

20 channels for generalpurpose measurements, plus two channels to measure currentOversize screw terminal connection blocks are standard for easier connections50MHz bandwidth300V, 1A capacity for voltage channels; 60W, 125VA3A capacity for current channelsLow insertion loss of up to 50MHzRelay closures stored in onboard memory

Discover the possibilities

More information

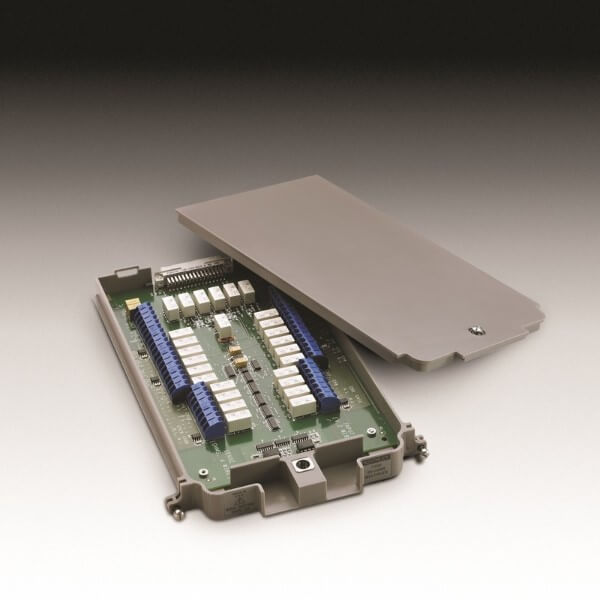

Keithley 7700 20 channel multiplexer

The Model 7700 plug-in module offers 20 channels of 2-pole or 10 channels of 4-pole multiplexer switching that can be configured as two independent banks of multiplexers. There are two additional protected channels for current measurements. Automatic CJC is provided so that no other accessories are required to make thermocouple temperature measurements. In addition, the Model 7700 contains latching electromechanical relays that enable signal bandwidths of up to 50MHz. The Model 7700 is ideal for RTD, thermistor, and thermocouple temperature applications.
