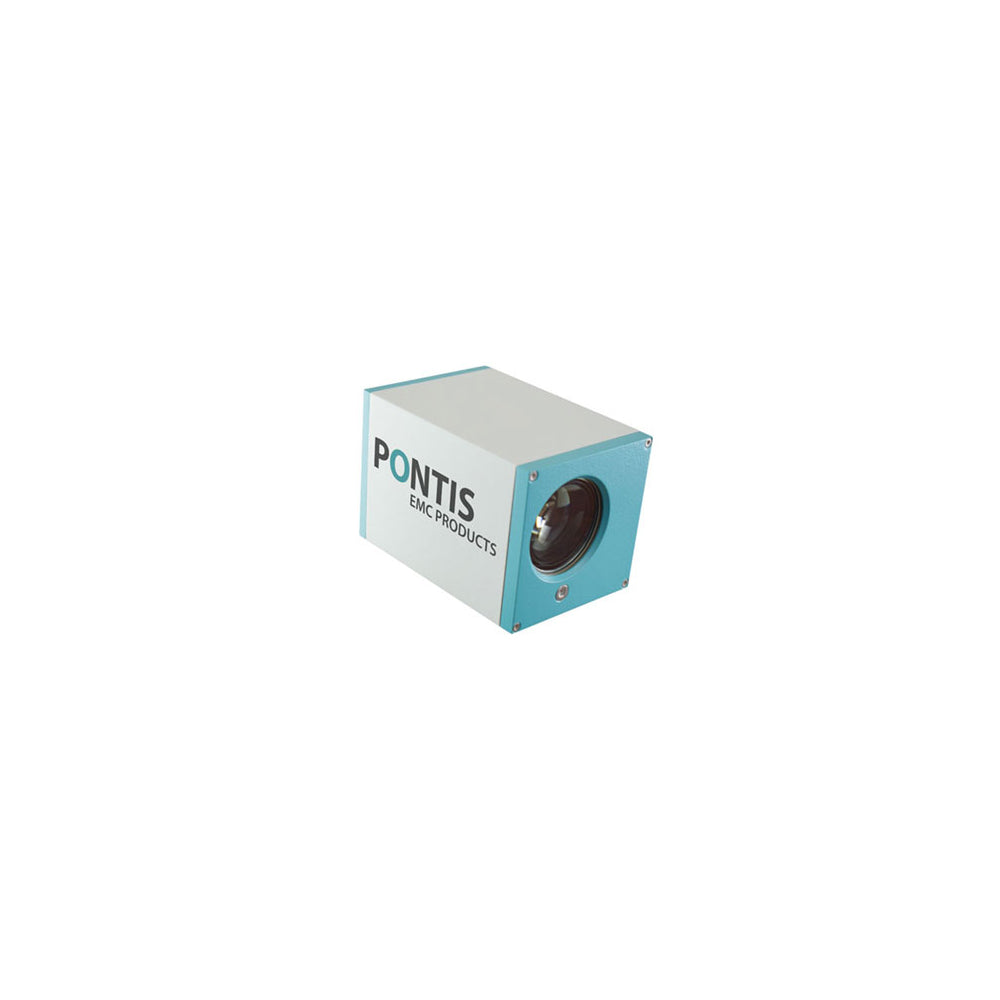

PONTIS HDCam5 High Resolution Compact EMC Hardened Camera
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Compact HD camera for regular applications
- Compact small size
- GTEM, precompliance
- In vehicle
- Stand alone economic solution
Discover the possibilities
More information
Description
The HDCam5 camera is shielded up to 200 V/m at a resolution of 2 Megapixel. It offers the best resolution available and is especially suited where the HD resolution (1080p) is needed (e.g. for monitoring HD displays) or an extreme zoom is needed (3 times optical zoom).
The wide viewing angle of 88° (horizontally) makes it suitable for viewing complete dashboards.
The video signal is transferred uncompressed in HD-SDI (HD-CCTV) format to the controller. Thus it is ideal for optical post processing e.g for automatic change or error detection during immunity testing. The camera can be operated remotely by the PONTIS EMC HD camera controllers.
A mini monitor and control pad can be connected to set up the camera locally without a controller.
Features:
- RF-immunity 200 V/m up to 18 GHz, 600 V/m stripline
- EMC compliant to CISPR 25 Class 5, -10 dB
- Automatic / manual focus
- Iris control (manually, for difficult light conditions)
- 3 times optical zoom
- Compact housing (60 x 60 x 90 mm)
- Full HD: 1080 p from sensor to display
- Wide viewing angle (88,4°)
- Image stabilizer / wide dynamic range
Documents
Options
Video
The HDCam5 camera is shielded up to 200 V/m at a resolution of 2 Megapixel. It offers the best resolution available and is especially suited where the HD resolution (1080p) is needed (e.g. for monitoring HD displays) or an extreme zoom is needed (3 times optical zoom).
The wide viewing angle of 88° (horizontally) makes it suitable for viewing complete dashboards.
The video signal is transferred uncompressed in HD-SDI (HD-CCTV) format to the controller. Thus it is ideal for optical post processing e.g for automatic change or error detection during immunity testing. The camera can be operated remotely by the PONTIS EMC HD camera controllers.
A mini monitor and control pad can be connected to set up the camera locally without a controller.
Features:
- RF-immunity 200 V/m up to 18 GHz, 600 V/m stripline
- EMC compliant to CISPR 25 Class 5, -10 dB
- Automatic / manual focus
- Iris control (manually, for difficult light conditions)
- 3 times optical zoom
- Compact housing (60 x 60 x 90 mm)
- Full HD: 1080 p from sensor to display
- Wide viewing angle (88,4°)
- Image stabilizer / wide dynamic range
