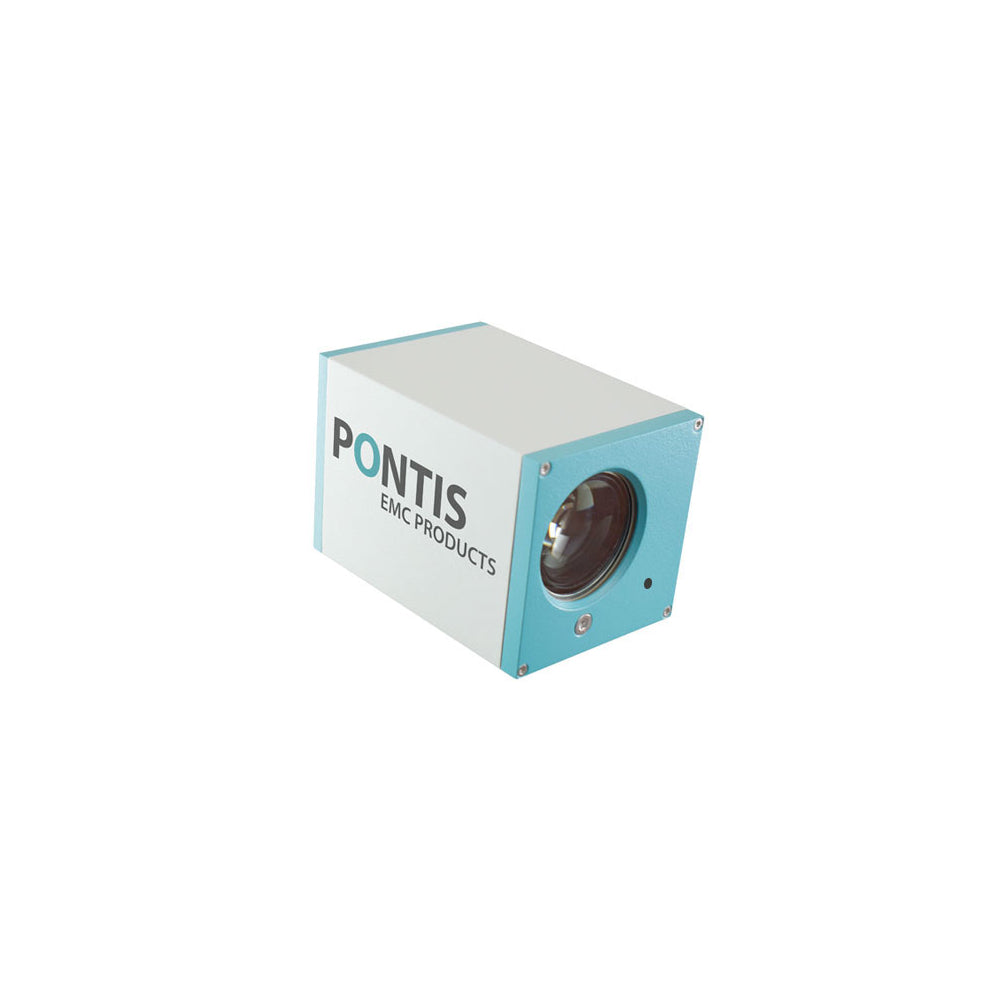

PONTIS HDCam75 HD Advanced Camera
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Very high susceptibility
- Very low emission
- Excellent picture
- High performance full HD camera
- 1080 p from sensor to display
- For difficult light conditions
- RF-immunity 200 V/m up to 40 GHz
- CISPR 25 Class 5, -20 dB up to 18 GHz
- Integrated microphone
Discover the possibilities
More information
Description
The HDCam75 camera is shielded up to 200 V/m at a resolution of 2 Megapixel. It offers the best resolution available and is especially suited where the HD resolution (1080p) is needed (e.g. for monitoring HD displays) or an extreme Zoom is needed. The combination of 40 times optical and 32 times digital zoom gives a zoom range of 360. The video signal is transferred uncompressed in HD-SDI (HD-CCTV) format to the controller. Features like e.g. manual iris control make it especially suitable for difficult light conditions like e.g. viewing displays.
The camera can be operated remotely by the PONTIS EMC HD camera controllers.
Features:
- RF-immunity 200 V/m up to 40 GHz
- EMC compliant to CISPR 25 Class 5, -20 dB
- Automatic / manual focus
- Compact housing (80 x 80 x 120 mm)
- Integrated microphone for audio surveillance and intercom
- 40 times zoom
- Iris control (manually, for difficult light conditions)
- Image stabilizer / wide dynamic range / long time exposure
- Full HD: 1080 p from sensor to display
Documents
Options
Video
The HDCam75 camera is shielded up to 200 V/m at a resolution of 2 Megapixel. It offers the best resolution available and is especially suited where the HD resolution (1080p) is needed (e.g. for monitoring HD displays) or an extreme Zoom is needed. The combination of 40 times optical and 32 times digital zoom gives a zoom range of 360. The video signal is transferred uncompressed in HD-SDI (HD-CCTV) format to the controller. Features like e.g. manual iris control make it especially suitable for difficult light conditions like e.g. viewing displays.
The camera can be operated remotely by the PONTIS EMC HD camera controllers.
Features:
- RF-immunity 200 V/m up to 40 GHz
- EMC compliant to CISPR 25 Class 5, -20 dB
- Automatic / manual focus
- Compact housing (80 x 80 x 120 mm)
- Integrated microphone for audio surveillance and intercom
- 40 times zoom
- Iris control (manually, for difficult light conditions)
- Image stabilizer / wide dynamic range / long time exposure
- Full HD: 1080 p from sensor to display
