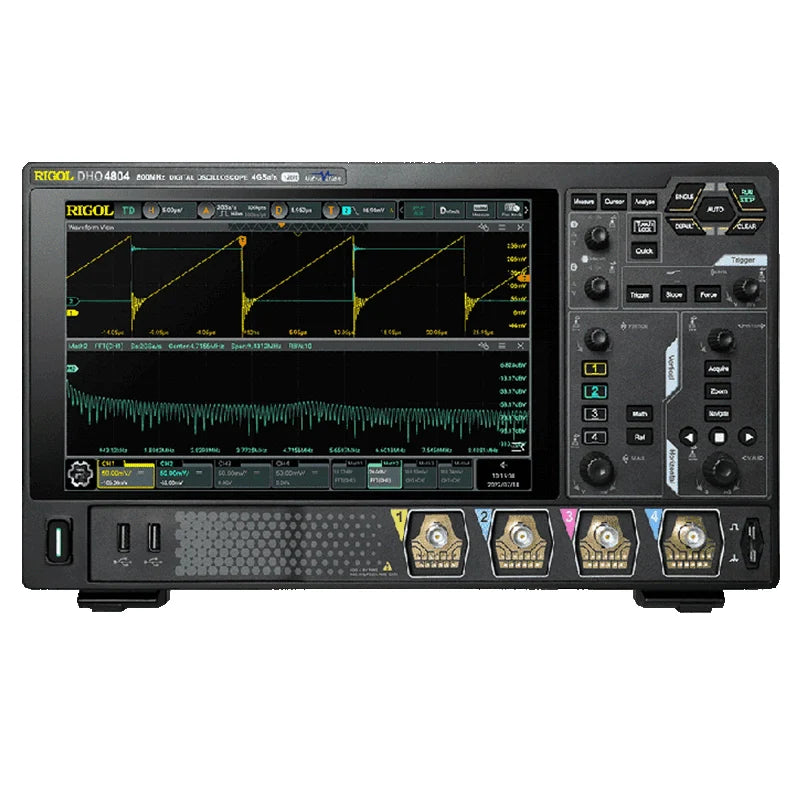

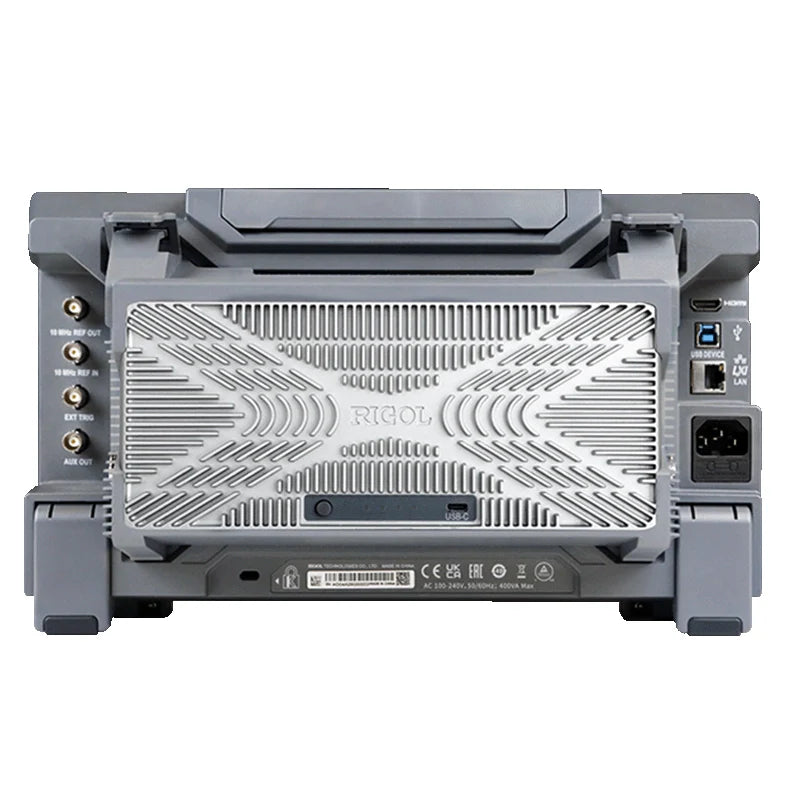

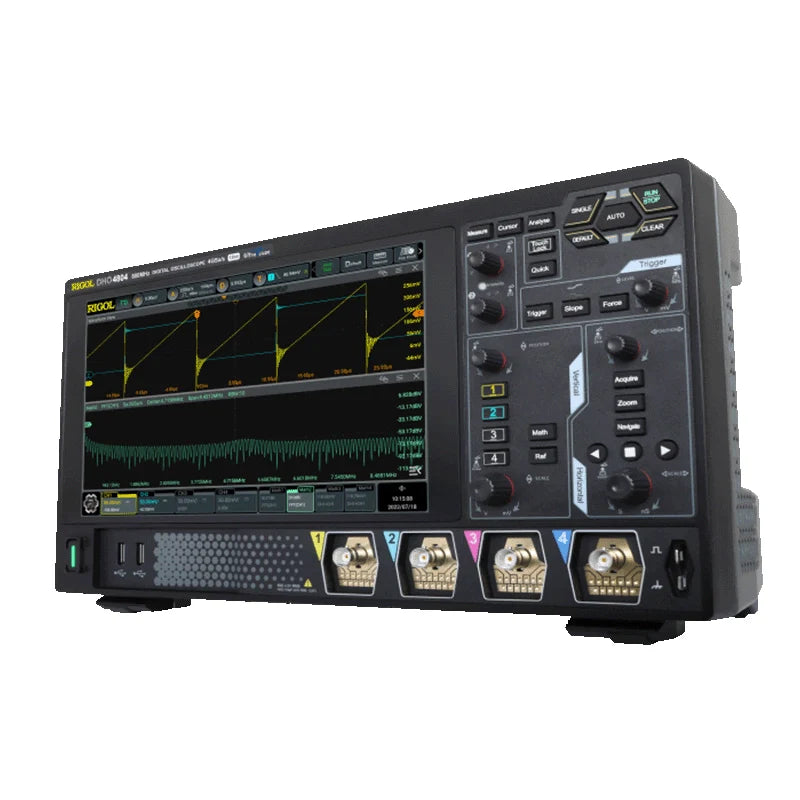

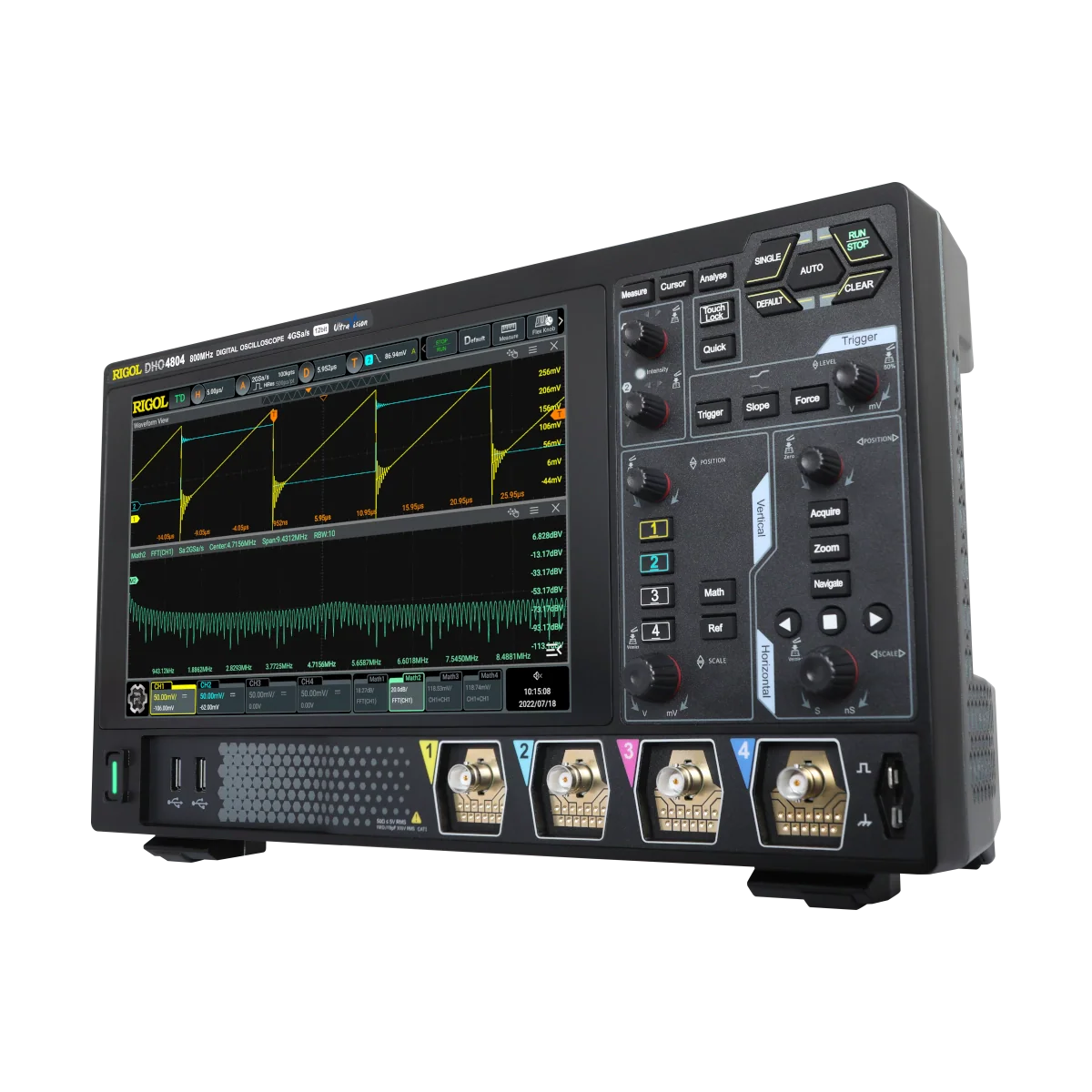

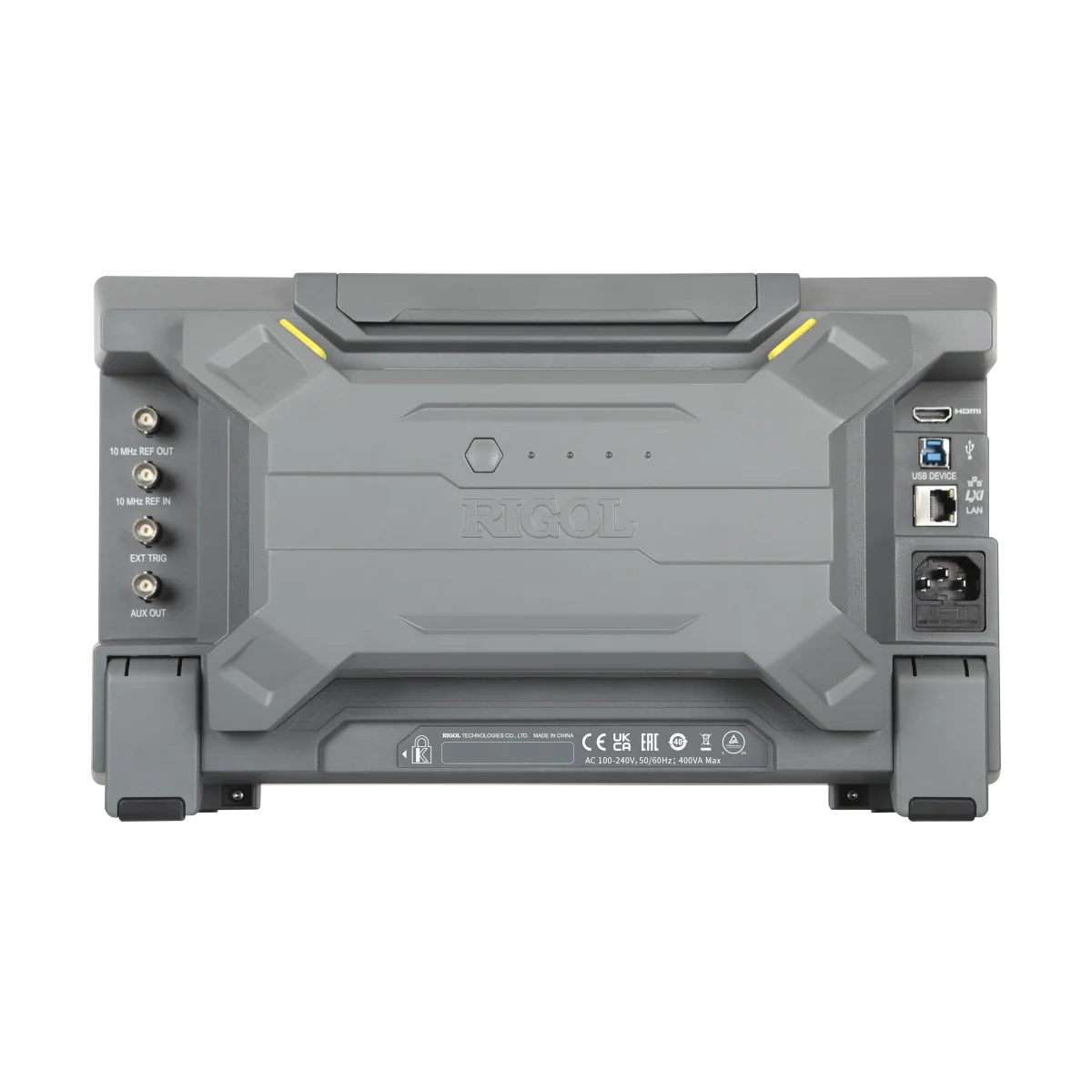

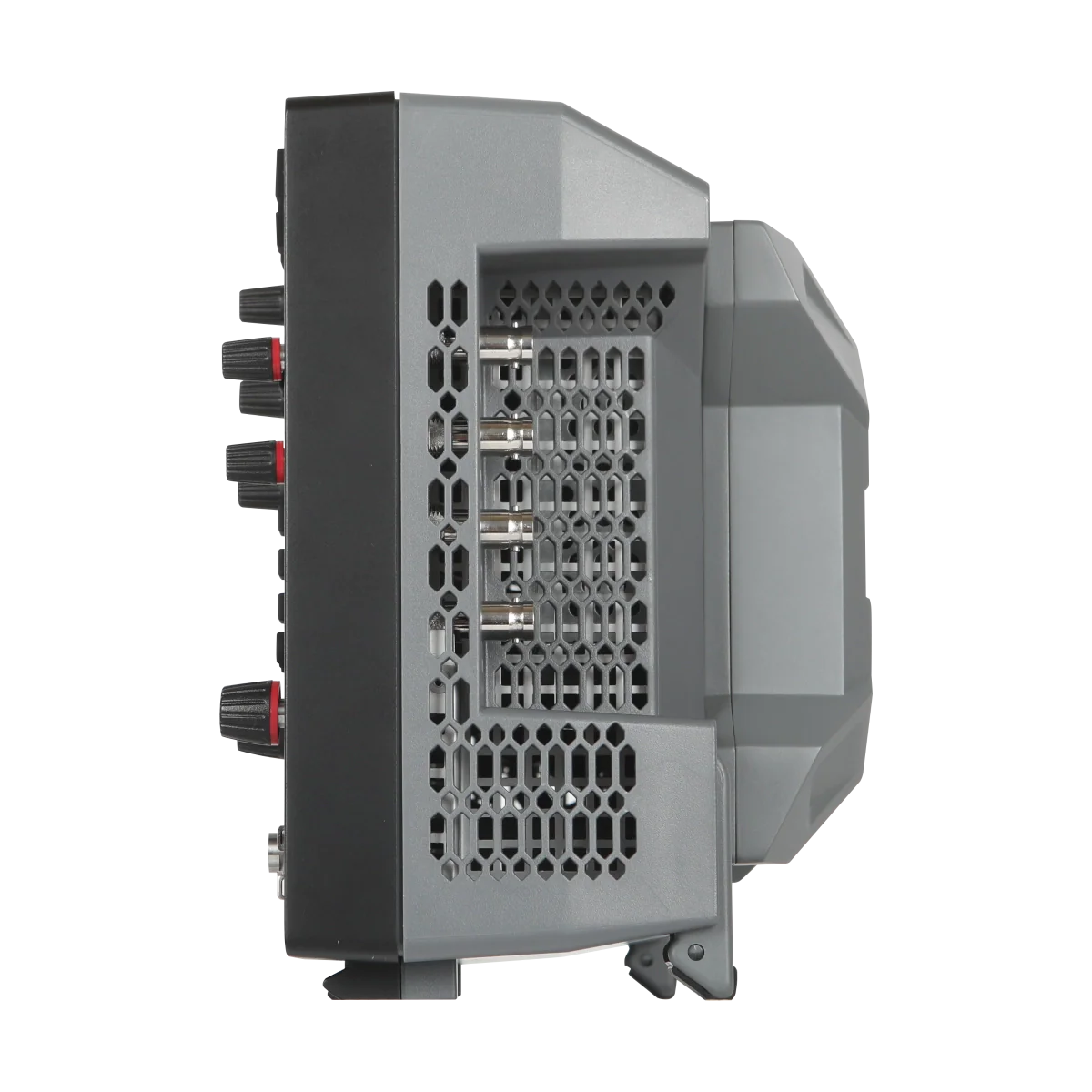

RIGOL DHO4804 800 MHz Oscilloscope
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Analog Bandwidth: 800 MHz
- Analog Channels: 4
- Maximum Real-time Sample Rate: 4 GSa/s
- Maximum Memory Depth: 500 Mpts (opt.)
- Maximum Waveform Capture Rate: 1,500,000 wfms/s
%0AMaximum%20Waveform%20Capture%20Rate:%201,500,000%20wfms/s%0A%0A
){kind=link}
Discover the possibilities
More information
Description
High-resolution 12-bit
All DHO4000 series oscilloscopes are equipped with Rigol's second generation "Centaurus" chipset, which provides 12-bit support.This allows the DHO4000 series oscilloscopes to capture waveforms 16 times more accurately and clearly than their predecessors' 8-bit counterparts.
Industry-leading, low noise floor
18uVrms ultra-low noise floor (typical), cleaner signal.
UltraAcquire mode
Supports UltraAcquire mode as standard, up to 1,500,000 wfms/s waveform acquisition rate. Not a single abnormal signal is missed.
Flex knob button
The dual multi-function knob eliminates the complex switching steps of a single knob, resulting in more efficient interaction.
Documents
Options
Video
High-resolution 12-bit
All DHO4000 series oscilloscopes are equipped with Rigol's second generation "Centaurus" chipset, which provides 12-bit support.This allows the DHO4000 series oscilloscopes to capture waveforms 16 times more accurately and clearly than their predecessors' 8-bit counterparts.
Industry-leading, low noise floor
18uVrms ultra-low noise floor (typical), cleaner signal.
UltraAcquire mode
Supports UltraAcquire mode as standard, up to 1,500,000 wfms/s waveform acquisition rate. Not a single abnormal signal is missed.
Flex knob button
The dual multi-function knob eliminates the complex switching steps of a single knob, resulting in more efficient interaction.
