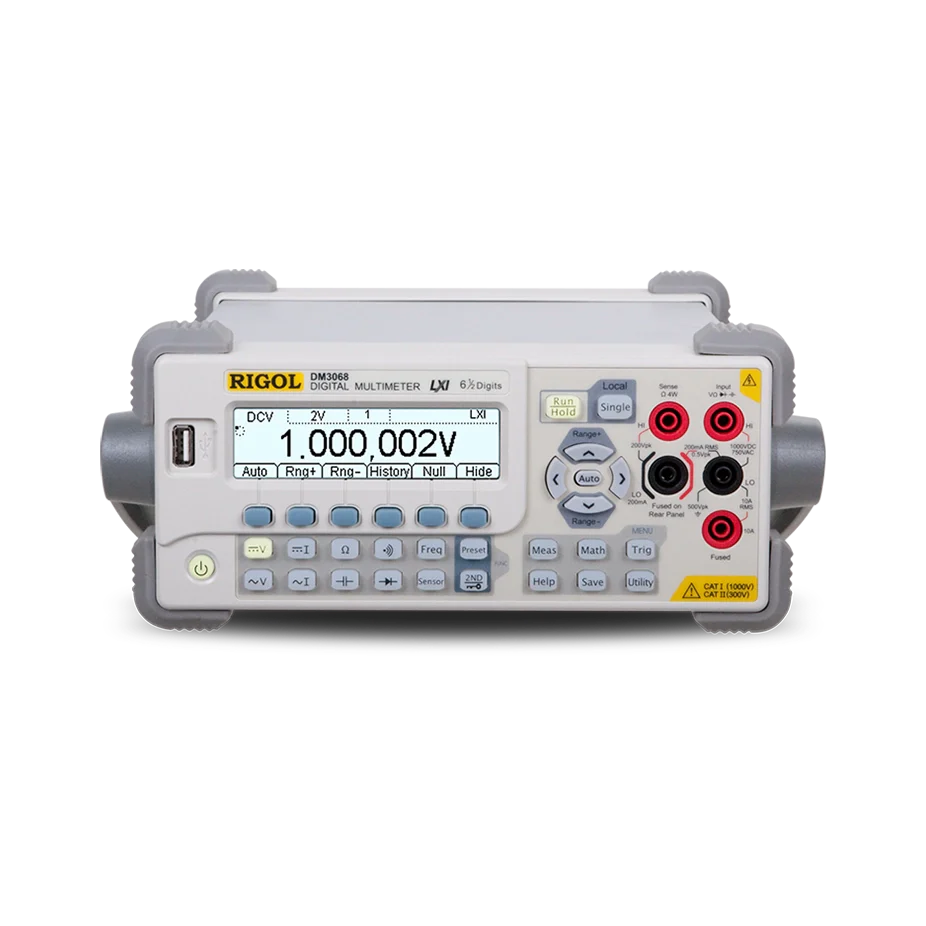

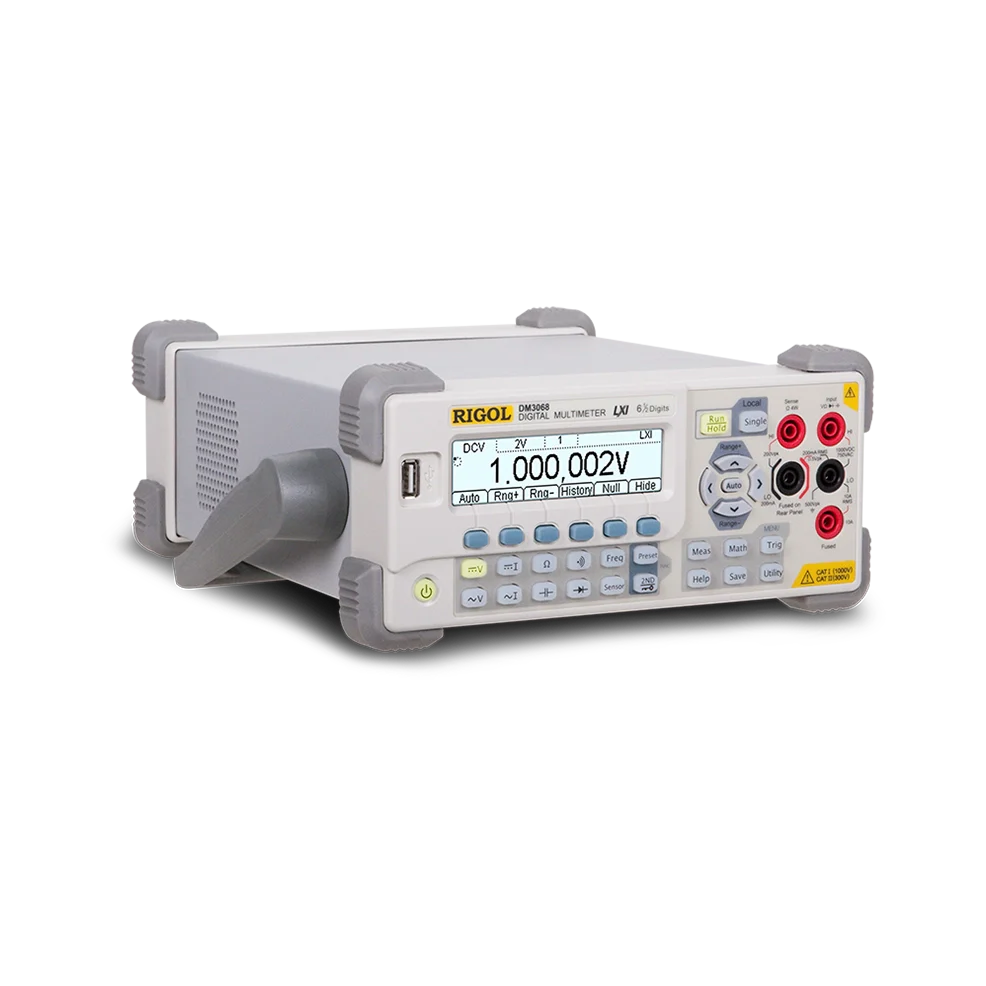

RIGOL DM3068 6.5 Digits Digital Multimeter
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Accuracy: 6.5 digits
- DCV Yearly Accuracy: 0.0035%
- Fastest Measurement Speed: 10K rdgs/s

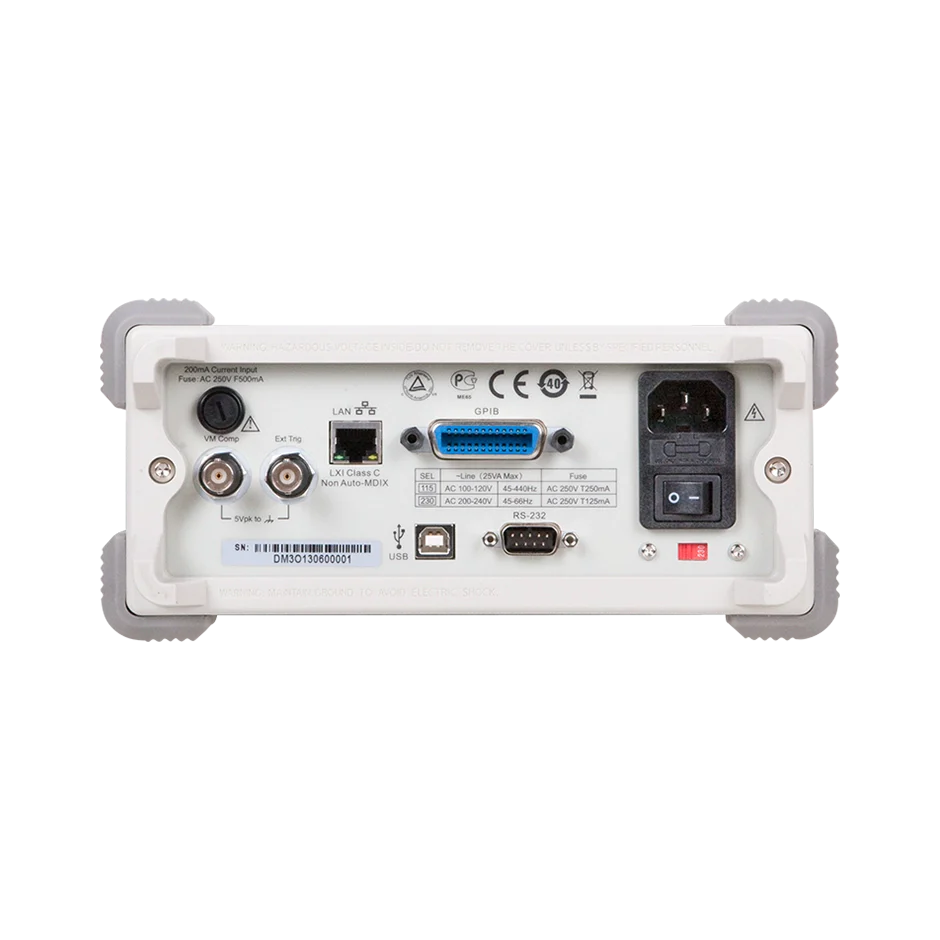

- Connectivity: USB, GPIB, LAN(LXI-C), RS232
,%20RS232%0A
){kind=link}
Discover the possibilities
More information
Description
True 6 ½-digit reading
It has ± 2,200,000 counts, which is much larger than the ± 1,200,000 of similar products. Under the same reading resolution, it has a larger measurement range than similar products.
Double Screen Display
When measuring the voltage or current of the AC signal, the frequency can also be measured. At this time, the voltage or current is displayed on the main display screen and the frequency is displayed on the secondary display screen.
Support Any Sensor Measurement
The measured physical quantities (pressure, flow rate, temperature, etc.) can be converted into voltage, current, resistance and other easily measured physical quantities for measurement, and the measured value and corresponding value can be displayed on the screen at the same time.
Supports a Variety of Temperature Sensors
Directly use TC (thermocouple), RTD (thermistor) and therm (thermistor) temperature sensors to measure temperature The temperature sensor used meets the international temperature standard ITS-90.
Capacitance Test Function
It can be used for capacitance measurement with a maximum display resolution of 1pf (2NF range).
Trend Chart Display
By drawing the trend chart of real-time measurement data, users can observe the change of measurement data without other auxiliary means.
Histogram Display
Display the distribution of measured data in real time, including AVG, SDEV and histogram of measured data, and change constantly in the measurement process.
Statistical Analysis Function
Perform mathematical statistics on the current measurement data, giving the minimum, maximum, average, and mean square error of the measured data.
Documents
Options
Video
True 6 ½-digit reading
It has ± 2,200,000 counts, which is much larger than the ± 1,200,000 of similar products. Under the same reading resolution, it has a larger measurement range than similar products.
Double Screen Display
When measuring the voltage or current of the AC signal, the frequency can also be measured. At this time, the voltage or current is displayed on the main display screen and the frequency is displayed on the secondary display screen.
Support Any Sensor Measurement
The measured physical quantities (pressure, flow rate, temperature, etc.) can be converted into voltage, current, resistance and other easily measured physical quantities for measurement, and the measured value and corresponding value can be displayed on the screen at the same time.
Supports a Variety of Temperature Sensors
Directly use TC (thermocouple), RTD (thermistor) and therm (thermistor) temperature sensors to measure temperature The temperature sensor used meets the international temperature standard ITS-90.
Capacitance Test Function
It can be used for capacitance measurement with a maximum display resolution of 1pf (2NF range).
Trend Chart Display
By drawing the trend chart of real-time measurement data, users can observe the change of measurement data without other auxiliary means.
Histogram Display
Display the distribution of measured data in real time, including AVG, SDEV and histogram of measured data, and change constantly in the measurement process.
Statistical Analysis Function
Perform mathematical statistics on the current measurement data, giving the minimum, maximum, average, and mean square error of the measured data.
