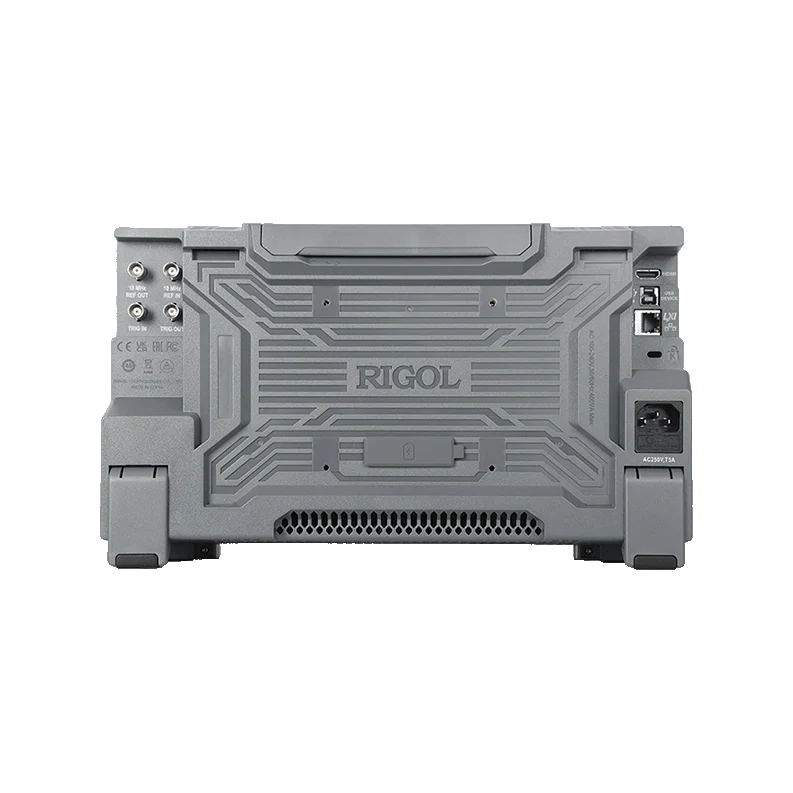

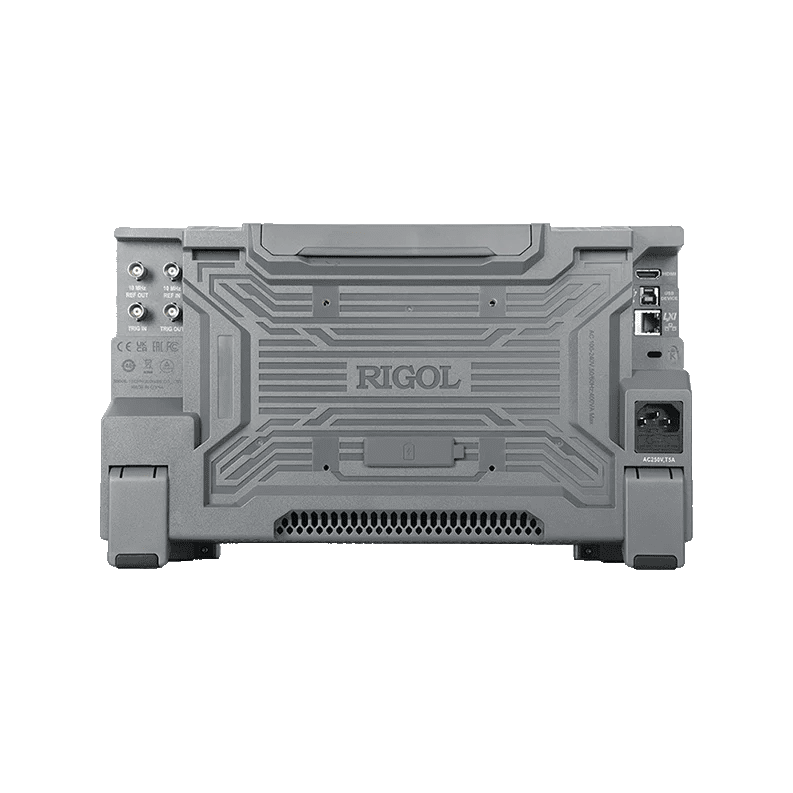

RIGOL DNA5042 Vector Network Analyzer
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Ports: 2
- Frequency Range: 5 kHz ~ 4.5 GHz
- Connector: N (f)
%0A
){kind=link}
Discover the possibilities
More information
Description
Broad Frequency Range for Diverse Applications
Delivering a frequency range from 5 kHz to 26.5 GHz with 2 standard test ports, this analyzer precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.
Superior Performance & Stability
Achieve precise characterization with a wide dynamic range >120 dB and low trace noise, ensuring stability even when testing high-suppression devices.
Advanced Analysis Tools Built-In
Accelerate your workflow with essential integrated tools including Pass/Fail limits, SWR, Smith Charts, and TDR—perfect for both the lab and the production floor.
True Device Performance via De-embedding
See the real performance of your DUT. Our Fixture Removal and De-embedding features strip away errors caused by cables and adapters, delivering the true S-parameters you need.
Intuitive Calibration
No more guesswork. Our step-by-step Calibration Wizard guides users of all skill levels to achieve accurate, calibrated setups in seconds.
Mechanical or Electronic Calibration
Choose the precision of our durable mechanical kits or the speed and consistency of our Electronic Calibration (E-Cal) modules to maximize testing efficiency.
Complete Accessory Support
Get up and running faster with our comprehensive ecosystem of accessories—your one-stop shop for reliable testing.
Drop-In Compatibility
Upgrade your test system effortlessly. With standard SCPI support and command set compatibility, you can integrate this unit into existing automated systems without rewriting code.
