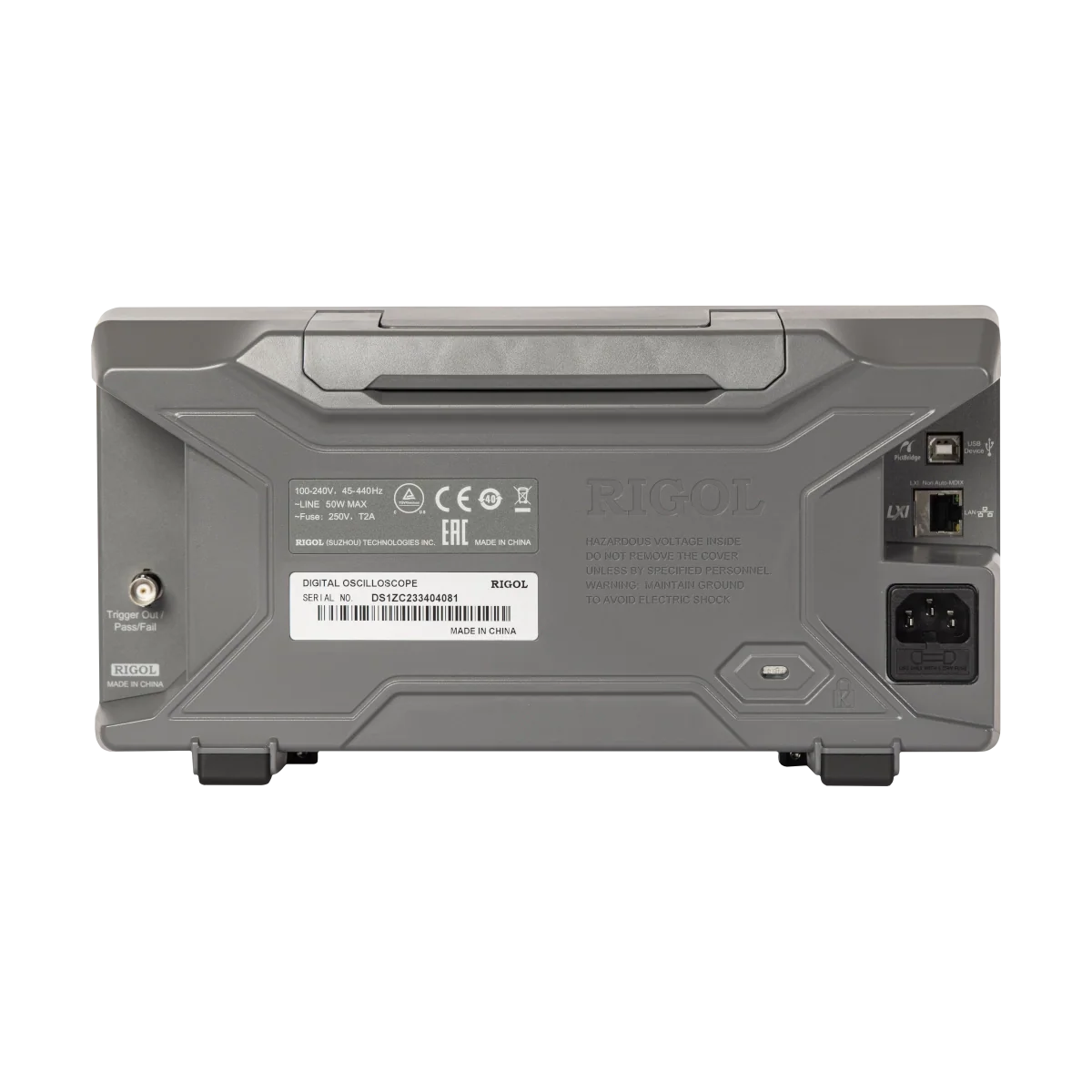

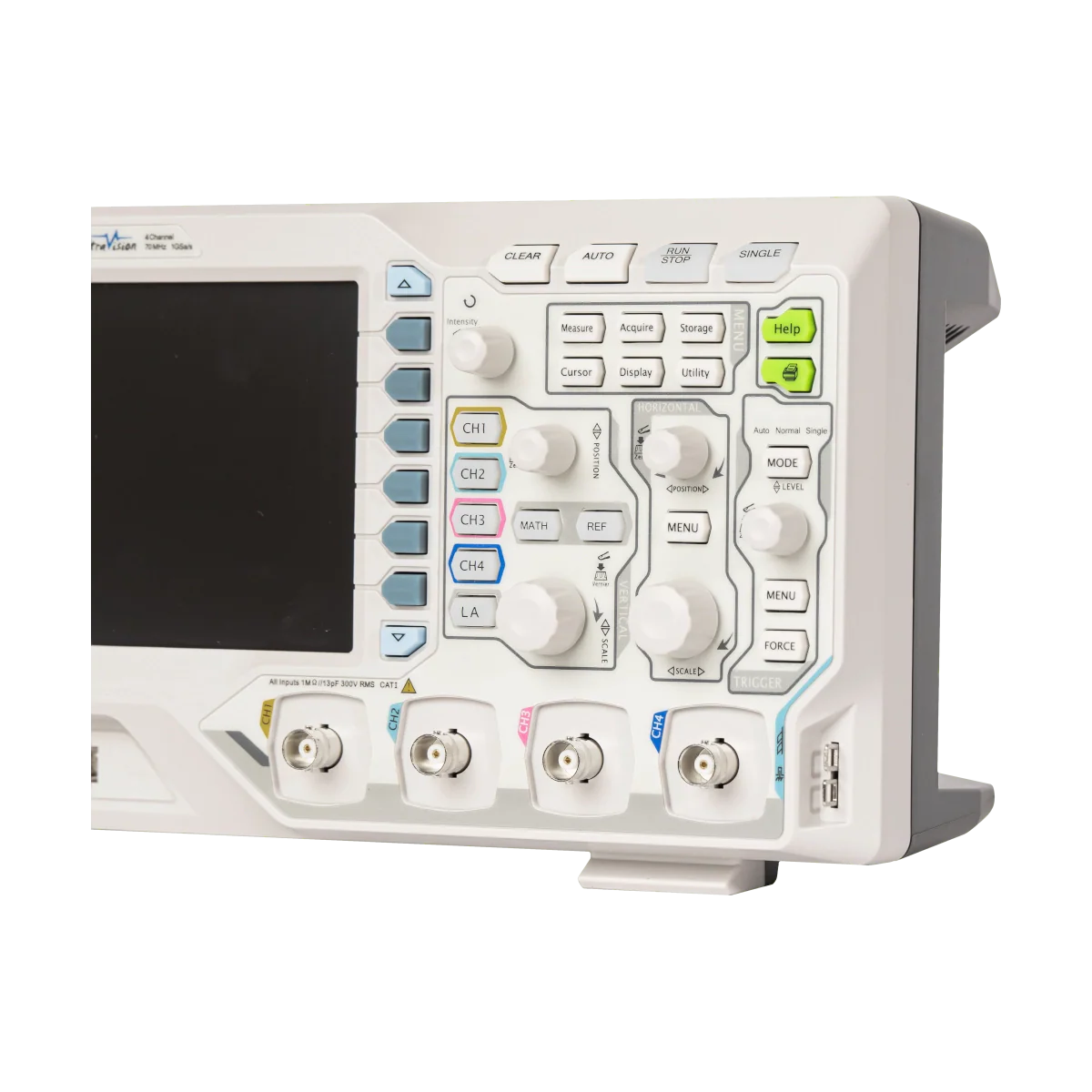

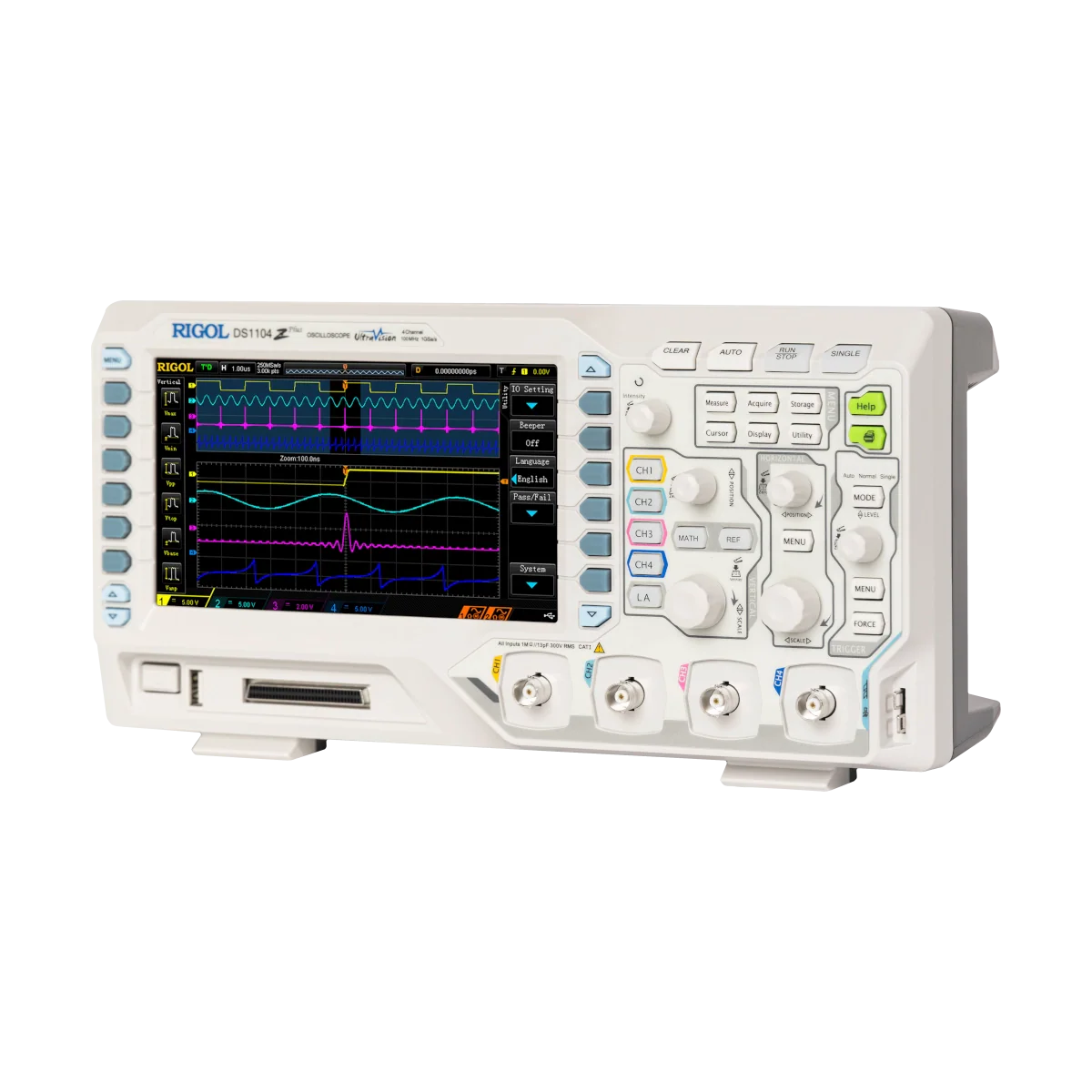

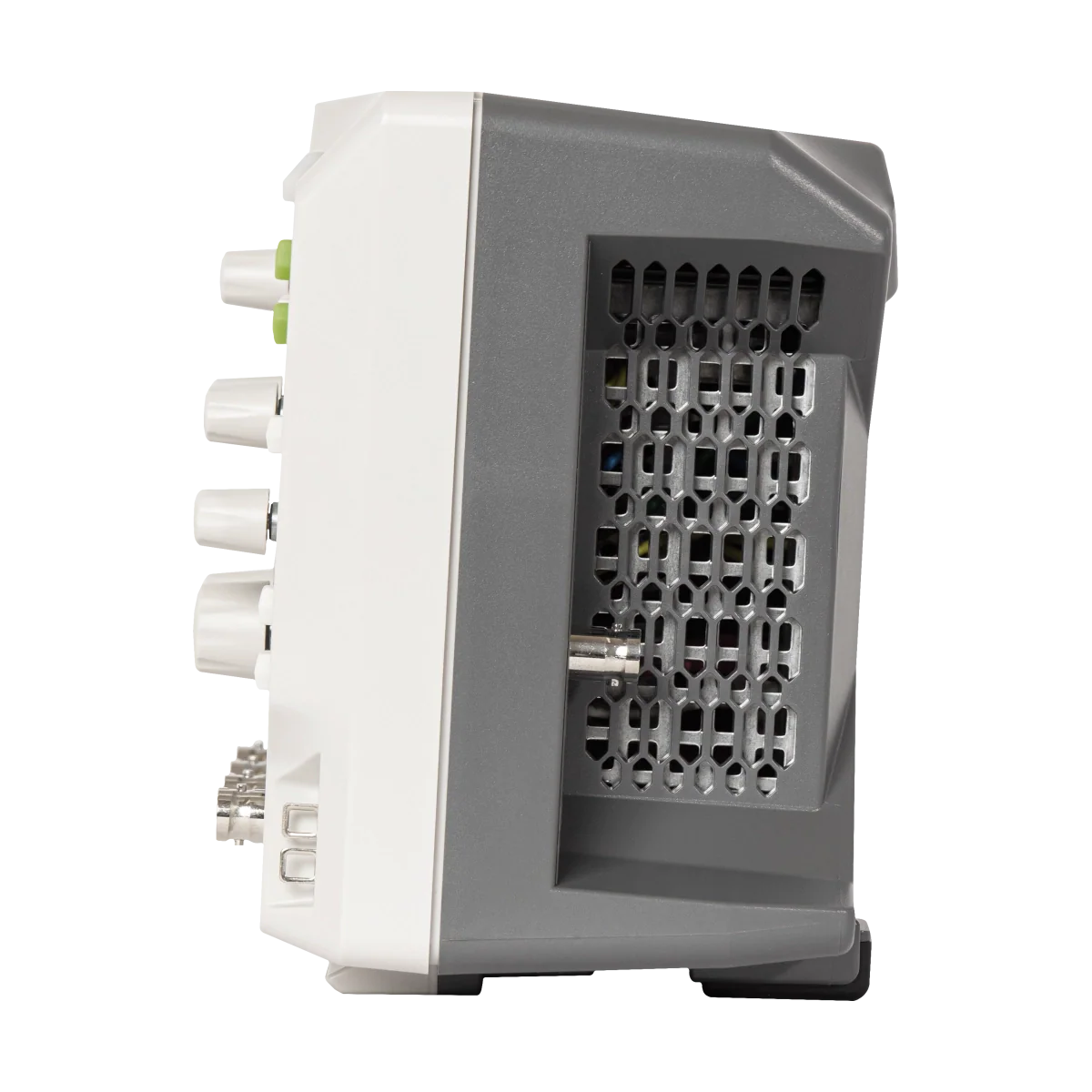

RIGOL DS1074Z-S-Plus 70 MHz Oscilloscope
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Analog Bandwidth: 70 MHz
- Analog Channels: 4
- Maximum Real-time Sample Rate: 1 GSa/s
- Maximum Memory Depth: 24Mpts
- Maximum Waveform Capture Rate: 30,000wfm/s
- Digital Channels: 16 (Probe opt.)
- Built-in Signal Source: 2CH
%0ABuilt-...
){kind=link}
Discover the possibilities
More information
Description
4 Channels As Standard
The price of 2-channel can obtain 4-channel products, and 4 analog channels are configured as standard to facilitate simultaneous measurement of multiple signals
12Mpts Storage Depth
Standard with 12M, optional with 24m super long storage depth. (standard configuration of digital channel 6m, optional 12m) allows the user to give full consideration to the overall situation and details of the waveform, maintain the highest sampling rate in a longer period of time, without missing any waveform changes
Hardware Waveform Recording and Playback Function
Provide waveform recording function options, record waveform changes, easily replay waveform, find out the fault location
Serial Bus Triggering and Decoding
Provide bus triggering and decoding options, support RS232 / UART, I2C, SPI bus
Digital Fluorescent Display
Gray level display capability, similar to fluorescent display effect, with minute change of waveform
Mixed Signal Analysis Capability
The plus model provides 16 digital logic channels, which makes it more convenient to test multiple analog and digital signals at the same time and analyze logic signals more conveniently. DS1000z plus can be upgraded to MSO
Two 25MHz Signal Sources
With two 25MHz arbitrary waveform generator models, the oscilloscope, logic analyzer and signal source are combined to give you a more efficient test experience
