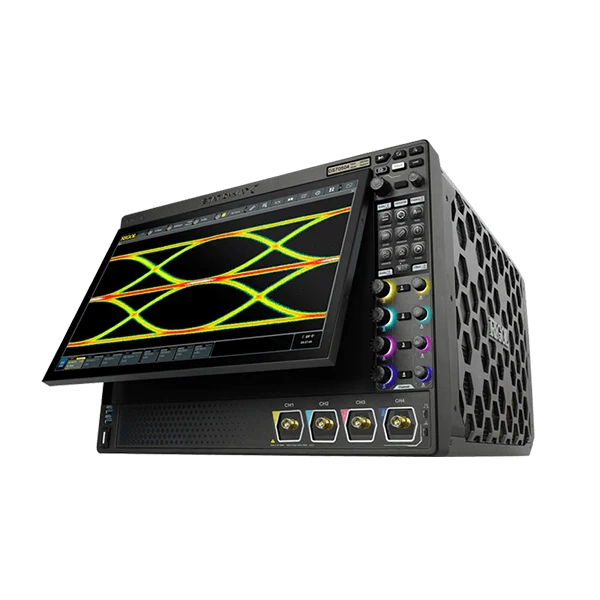

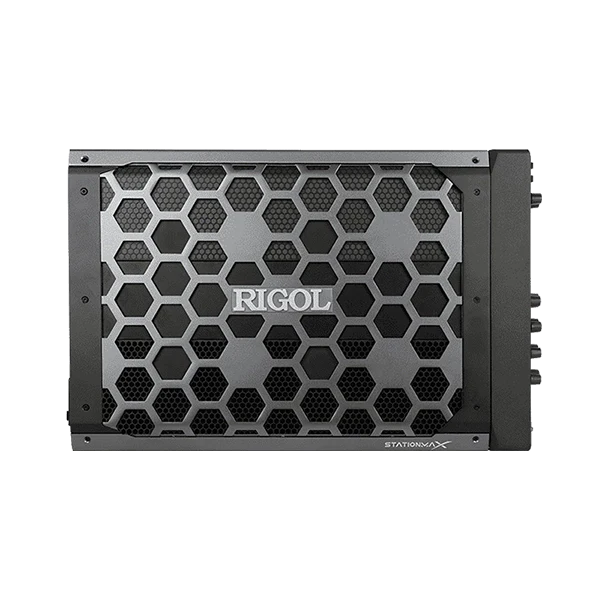

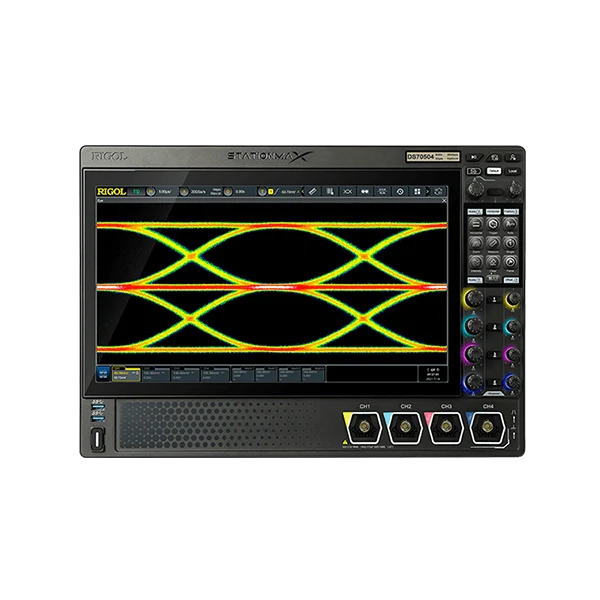

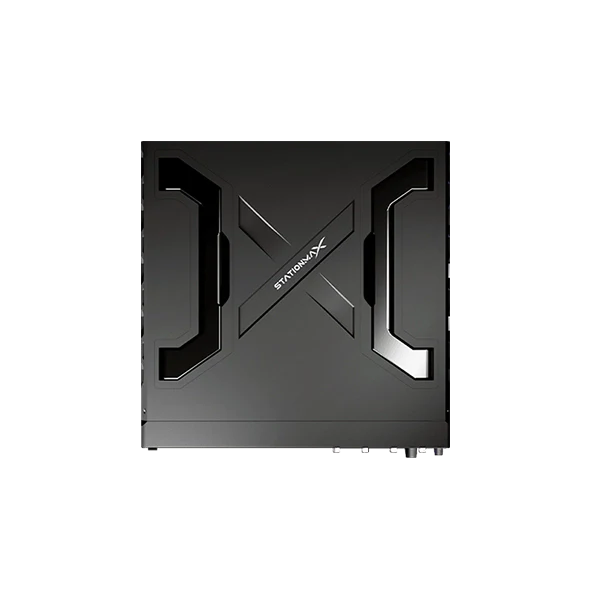

RIGOL DS70304 3 GHz Oscilloscope
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Analog Bandwidth: 3 GHz
- Analog Channels: 4
- Maximum Real-time Sample Rate: 20 GSa/s
- Maximum Memory Depth: 2 Gpts (opt.)
- Maximum Waveform Capture Rate: 1,000,000 wfms/s
%0AMaximum%20Waveform%20Capture%20Rate:%201,000,000%20wfms/s%0A
){kind=link}
Discover the possibilities
More information
Description
Digital Oscilloscope with Real‐Time Spectrum Analysis to 5 GHz
Up to 5 GHz Bandwidth and 20 GSa/sec Sample Rate
Waveform Capture Rate
View infrequent anomalies and small signal details quickly and precisely with up to 1 Million waveforms visualized on the screen every second.
2 Billion Points of Memory
500 Mpts memory depth is standard and can be upgraded to 2 Gpts memory depth (Half-channel 1 Gpts) Full 100 millisecond capture at max sampling rate of 20 GSamples per second Capture half a Billion periods of a 5 GHz signal in one continuous data stream Memory can also be segmented to record up to 2 Million frames in record mode
16 bits Vertical Resolution
Up to 16 bit resolution High resolution mode: 9-16 bits Directly select the number of bits
Multiple Touchscreens for efficient visualization
15.6” auto-tilt primary touchscreen display Secondary touchscreen reserves main screen for analysis
Multi Window User Interface
Analysis tools and functions open in separate windows that optimize scale and axis settings Measurements open in separate sidebar
