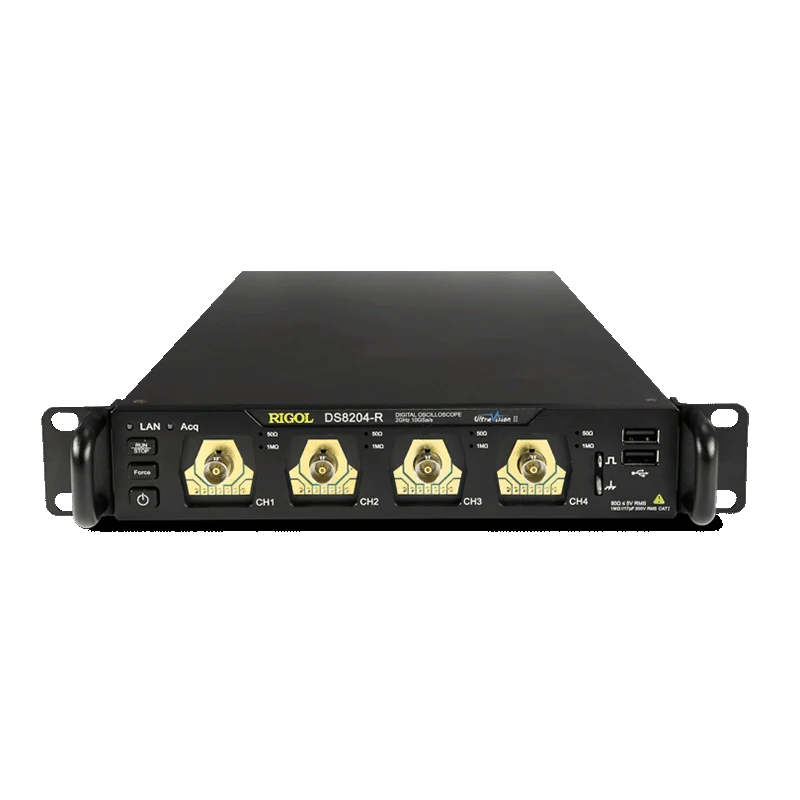

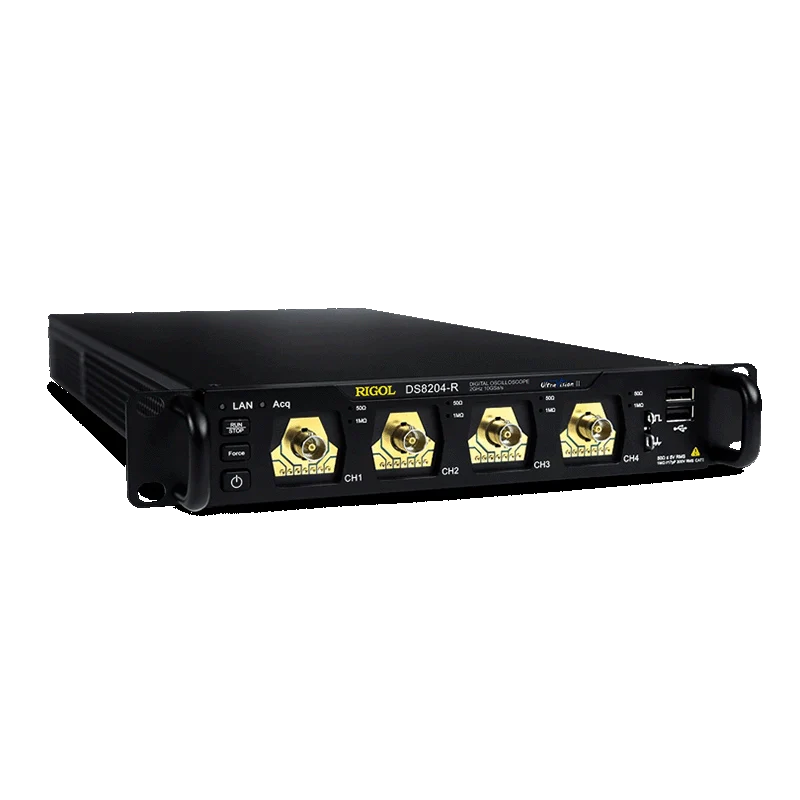

RIGOL DS8204-R 2 GHz Oscilloscope
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Analog Bandwidth: 2 GHz
- Analog Channels: 4
- Maximum Real-time Sample Rate: 10 GSa/s
- Maximum Memory Depth: 500 Mpts
- Maximum Waveform Capture Rate: 600,000 wfms/s
- Built-in Signal Source: 1CH (opt.)
%0A
){kind=link}
Discover the possibilities
More information
Description
Compact design
Space-saving compact design, small size, 214 mm (width) × 43 mm (height) × 478 mm (depth), which can be placed in a narrow space.
Convenient stand-alone working mode

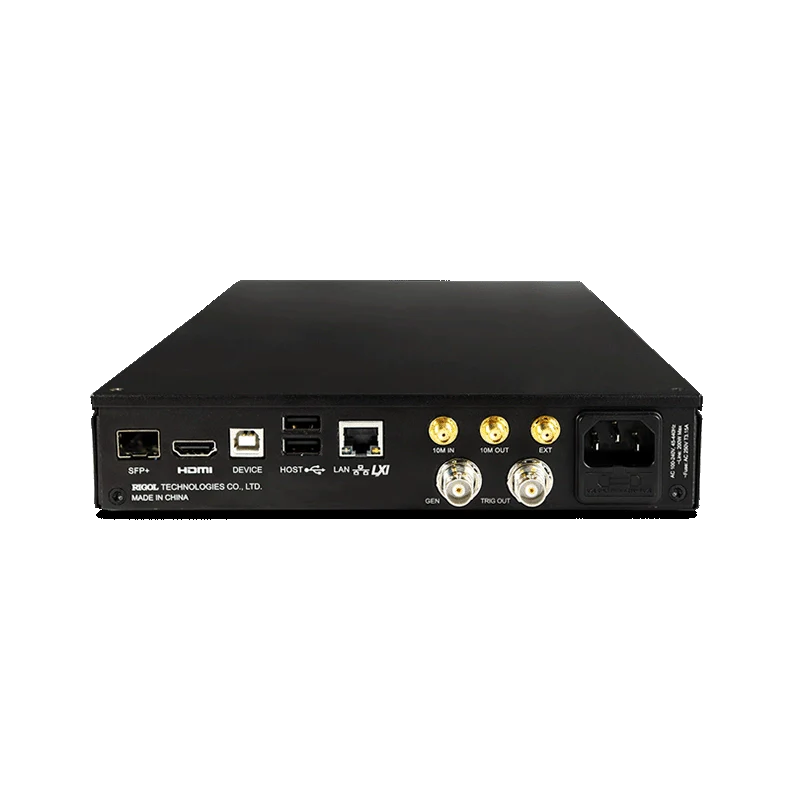

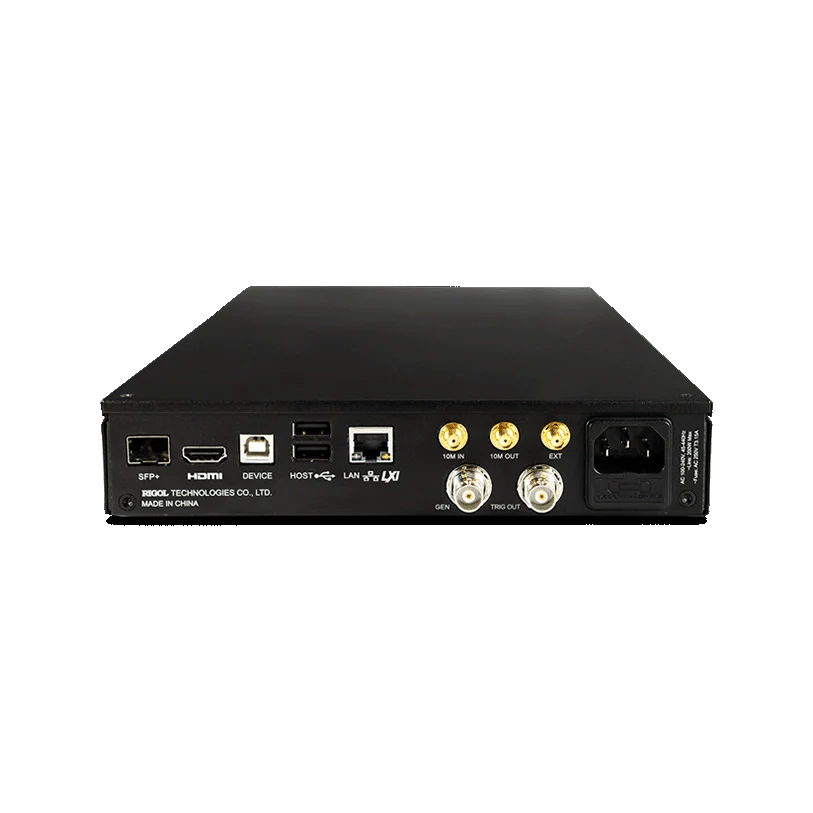

A single device with peripherals can meet traditional oscilloscope applications: connect the display device through the HDMI® interface to view the user interface, connect the mouse through the USB Host interface to click and drag, and connect the keyboard to set numbers or strings.
Suitable for low-temperature working environments
No LCD screen, the minimum operating temperature is -40°C, and it can be applied to signal monitoring in special environments.
Save the rack space
Half U design helps to save the rack space. 2 units can be installed side by side in a 1U standard rack with a total of 8 channels, which efficiently utilizes valuable rack space
Scalable to 512 channels of synchronous trigger capability
Using the matching synchronous machine, it can provide a multi-machine synchronous trigger scheme, and can realize on-site calibration to ensure the requirements of multi-channel synchronous observation
Multi-channel high-speed data acquisition
For multi-channel integration, the optional multi-channel high-speed data acquisition software can meet the configuration of multi-machine and multi-channel, and provide a friendly interface to display the waveforms collected by each channel
