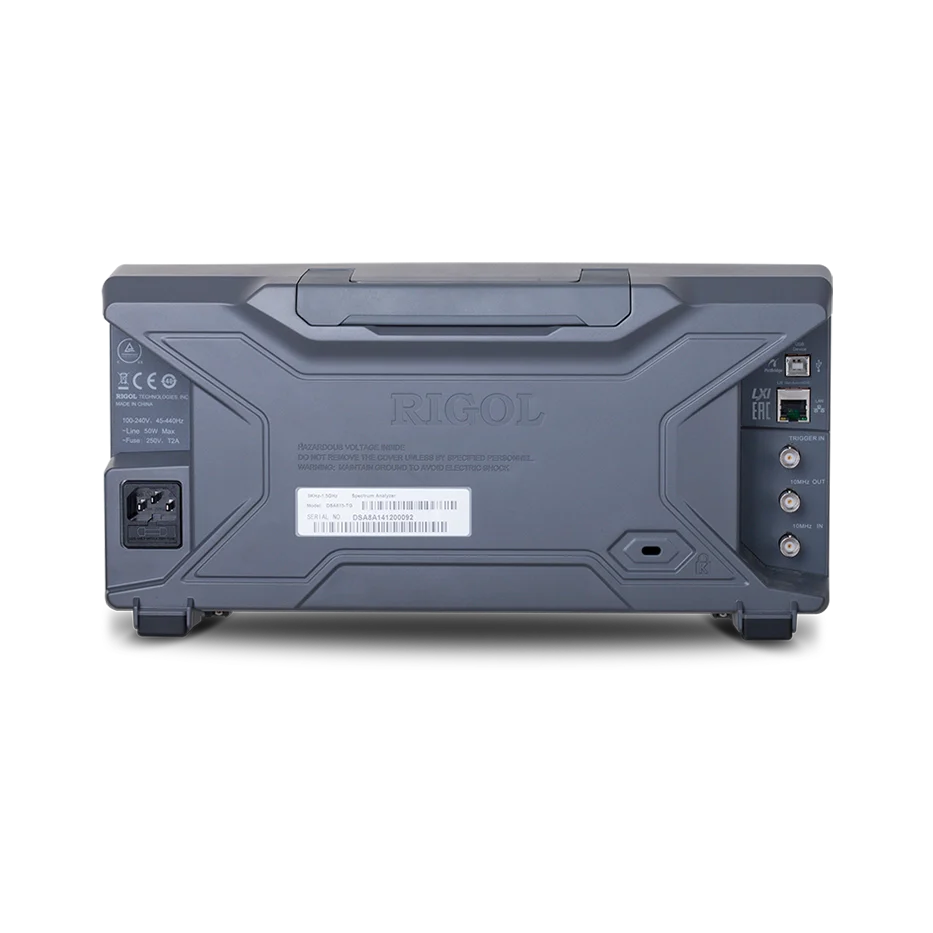

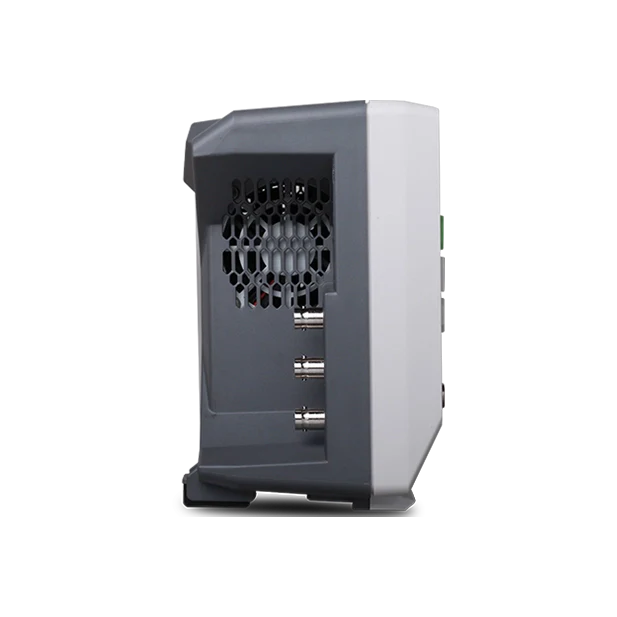

RIGOL DSA832E-TG Spectrum Analyzer
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Frequency Range: 9kHz~3.2GHz
- Resolution Bandwidth (RBW): 10Hz~1MHz
- Phase Noise (Typ.): -90dBc/Hz@10kHz
- Tracking Generator: Yes
:%2010Hz~1MHz%0APhase%20Noise%20(Typ.):%20-90dBc/Hz@10kHz%0A%0ATracking%20Generator:%20Yes%0A%0A
){kind=link}
Discover the possibilities
More information
Description
10Hz Resolution Bandwidth
The DSA800 withl RF technology to provide a resolution bandwidth as low as 10 Hz, which can effectively distinguish adjacent equal-amplitude signals and improve signal discrimination.
DANL: -161 Dbm with Optional Preamp
View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.
EMI Pre-compliance Measurement
EMI filter (6 dB) and quasi-peak detectors make EMI pre-test/diagnostics more accurate, complete with complete software and report generation.
Tracking Source and VSWR Function
DSA800 series with VSWR measurement capability, with tracking source model (-TG), with VSWR bridge for voltage standing wave ratio test.
UnltraSpectrum Software
The optional UltraSpectrum software can not only complete the control of the spectrum analyzer, but also provide powerful display and analysis functions such as spectrum and waterfall.
