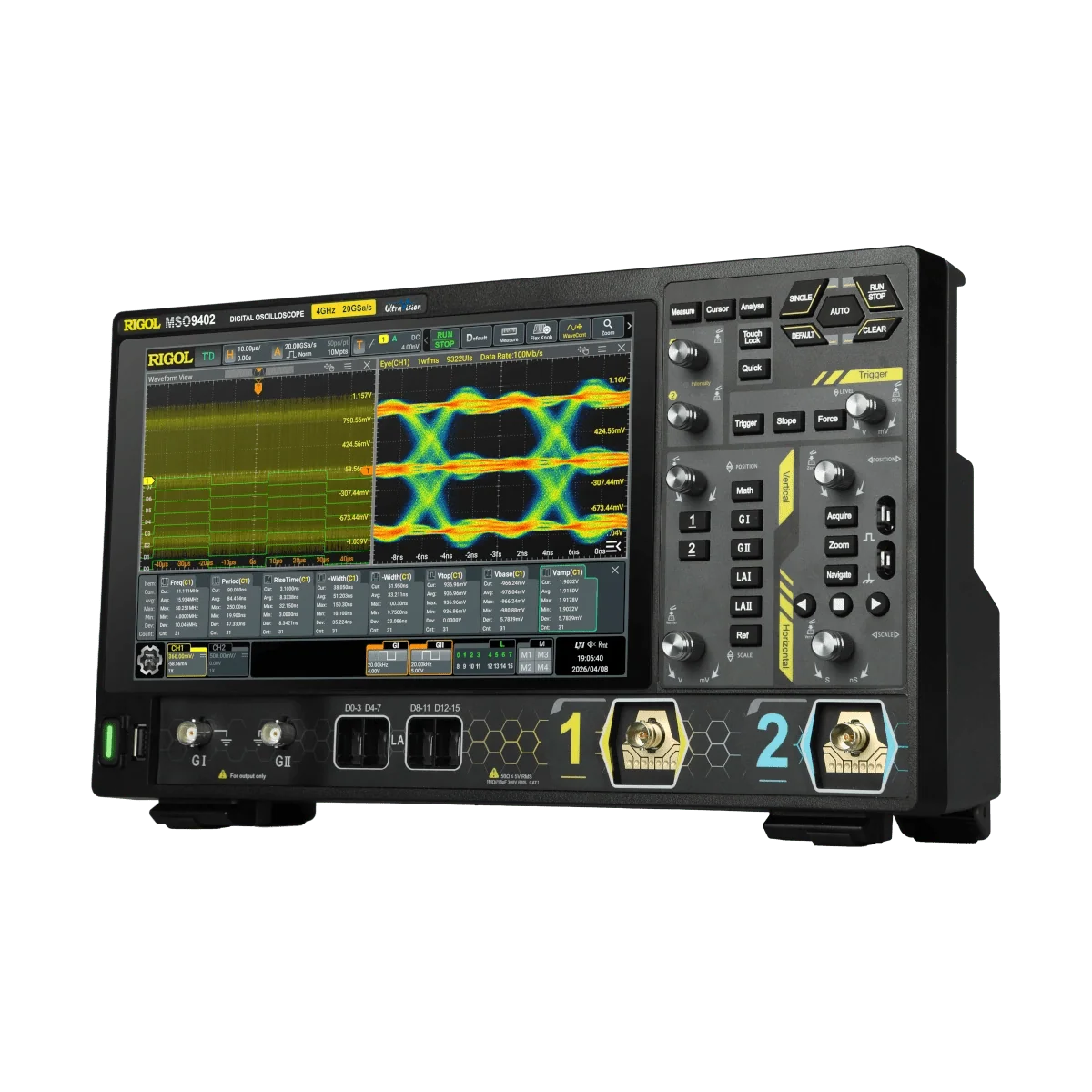

RIGOL MSO9402 4 GHz Oscilloscope
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Analog Bandwidth: 4 GHz
- Analog Channels: 2
- Real-time Sample Rate: 20 GSa/s
- Maximum Memory Depth: 2 Gpts.(opt.)
- Maximum Waveform Capture Rate: 1.000,000 wfms/s
- Digital Channels: 16(Probe opt.)
%0AMaximum%20Waveform%20Capture%20Rate:%201.000,000%20wfms/s%0ADigital%20Channels:%2016(Probe%20opt.)%0A
){kind=link}
Discover the possibilities
More information
Description
6GHz Pure & Lossless
With up to 6 GHz bandwidth and 20 GSa/s real-time sampling rate, the DS/MSO9000 Series is built for high-speed signal capture, edge analysis, and complex anomaly detection.
Solid Electronic Attenuator, Built to Last
By replacing traditional mechanical attenuators with a Solid Electronic Attenuator, the DS/MSO9000 Series delivers improved lifetime and reliability in high-frequency, high-duty-cycle range switching applications.
Deep Memory, Zero Misses
With up to 2 Gpts memory depth and a waveform capture rate of up to 1,000,000 wfms/s, the DS/MSO9000 Series helps engineers detect intermittent events faster and improve debugging efficiency.
Advanced Analysis in One
Built-in tools such as eye diagram analysis, jitter decomposition, compliance testing, and power analysis enable users to move quickly from waveform observation to deeper insight.
Compact & Portable
Highly integrated and weighing only 5kg+, the DS/MSO9000 Series is suitable for both efficient lab testing and portable field deployment.
