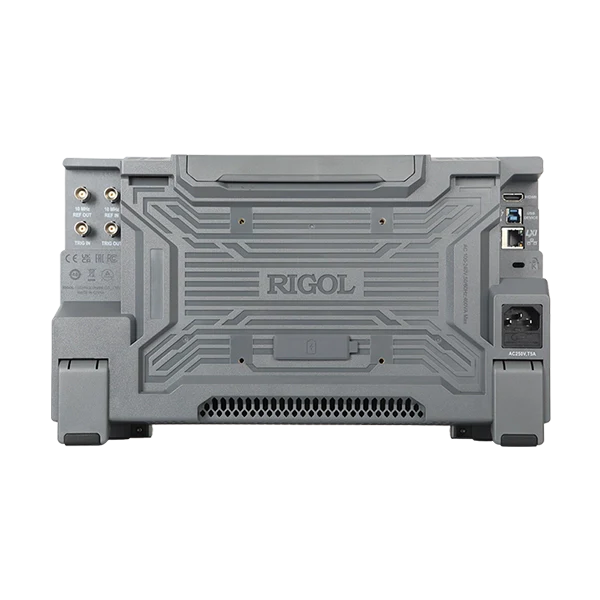

RIGOL RSA6140 Spectrum Analyzer
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Frequency Range: 5 kHz ~ 14 GHz
- Resolution Bandwidth (RBW): 1Hz~10MHz
- Phase Noise (Typ.): -108dBc/Hz@10kHz
- Displayed Average Noise Level (DANL): -163dBm
- Tracking Generator: Yes
:%201Hz~10MHz%0APhase%20Noise%20(Typ.):%20-108dBc/Hz@10kHz%0ADisplayed%20Average%20Noise%20Level%20(DANL):%20-163dBm%0ATracking%20Generator:%20Yes%0A
){kind=link}
Discover the possibilities
More information
Description
Class-leading 200MHz real-time spectrum analysis
Supports signal capture in complex environments, easily handles challenges such as multiple signals and instantaneous interference, quickly locks in abnormal signals, and improves the efficiency of R & D and troubleshooting.
Completely upgraded demodulation analysis bandwidth of 200MHz
200MHz vector demodulation bandwidth: Easily handle in-depth analysis and performance evaluation of various broadband communication signals.
Phase noise -108dBc/Hz@1GHz, 10kHz offset
Excellent phase noise performance provides a pure local oscillator for high-demand tests, ensuring accurate and reliable measurement results.
Compact size, portable design
The compact and portable body design can easily handle the crowded laboratory bench and complex outdoor environment, making high-performance testing feasible anywhere.
5-in-1 multi-function
One machine serves five purposes, highly integrating five core functions. It greatly saves testing space and investment costs, and comprehensively enhances the value of comprehensive testing.
Complete the pre-test of conduction/radiation through the built-in EMI test software.
The built-in EMI pre-test application software, combined with a filter that meets the CISPR standard, conducts pre-tests on the product's conduction and radiation to identify and improve the sources of conduction/radiation interference, thereby accelerating the product's market entry.
Provide multiple interfaces and support the standard SCPI instruction set
Integrate multiple remote interfaces such as USB, LAN, and HDMI, support standard SCPI commands, easily build an automated test system, and accelerate your product development process.
UI design that is more suitable for touch operations
The brand-new touch UI offers a smooth experience like that of a tablet, making complex spectrum measurements intuitive, efficient, and effortless.
