Sealevel 7161e PCI Express 16-Port RS-232 Serial Interface
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Compliant with RoHS and WEEE directives
- 16C854 buffered UARTs with 128-byte FIFOs
- Data rates to 460.8K bps
- PCI Express X1 compliant
- All modem control signals implemented
- Included, two 36 inch cables terminate to sixteen DB-25M connectors (Item# CA202)
Discover the possibilities
More information
Description

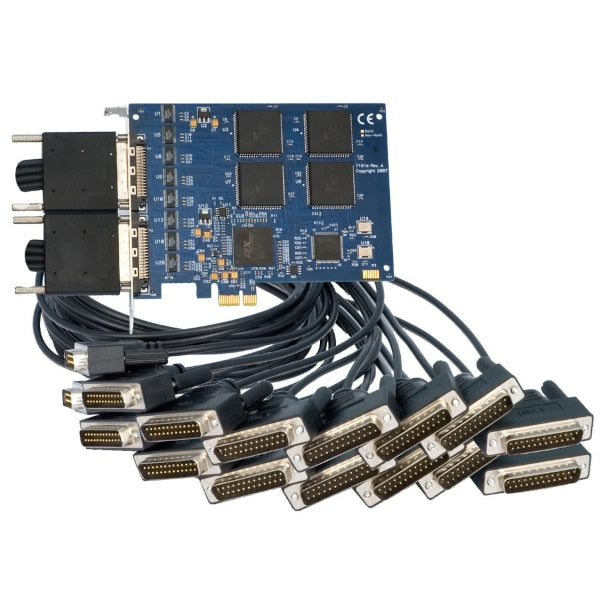

The Sealevel 7161e provides sixteen RS-232 serial ports capable of data rates to 460.8K bps. Each RS-232 port implements all modem control signals for maximum compatibility with a wide range of peripherals. The board is PCI Express X1 compliant and utilizes 16C854 UARTs to provide 128-byte Tx/Rx FIFOs for maximum reliability in data intensive applications.
The board ships with two 36 inch cables that terminate to sixteen DB25M connectors. For DB9M connectors, select the appropriate cable options.
Features
- Compliant with RoHS and WEEE directives
- 16C854 buffered UARTs with 128-byte FIFOs
- Data rates to 460.8K bps
- PCI Express X1 compliant
- All modem control signals implemented
- Included, two 36 inch cables terminate to sixteen DB-25M connectors (Item# CA202)
Specifications
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
|---|---|
| Cable Connector(s) | DB25M (16) |
| Communications Chip | 16C854 |
| Dimensions | 5.5 (L) x 4.4 (W) |
| Electrical Interface | RS-232 |
| Humidity Range | 10 – 90% Relative Humidity, Non-Condensing |
| Host Interface(s) | PCI Express |
| Max Data Distance | 50 feet |
| Max Data Rate | 460.8K bps |
| UART Series | 850 UART |
| Board Connector | Micro DB68 (2) |
| PC Bracket | Standard Height |
| # of Ports | 16 |
| RoHS Compliant | Yes |
| Serial Connector(s) | DB25M, DB9M |
| Storage Temperature | -50°C to 105°C (-58°F to 221°F) |
| Oscillator | 7.3728 MHz |
For more information: Sealevel
