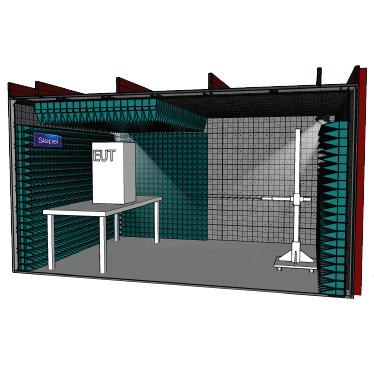

SIEPEL ARES 1F Semi-Anechoic Chamber for DO-160G & MIL-STD-461G
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
AVAILABLE OPTIONS
- Shielded control and amplifier rooms
- Plastic paint for pyramidal absorbers with wide range of colors
- Other types and dimensions of doors
- Electrically-assisted door latching/unlatching
- Antenna positioners
- Floor hatches with connection points
- Additional power filters, data filters and special feedthroughs
- CCTV / Audio monitoring systems
- Fire detection systems
- On request, some measurements can be accredited ISO 17025
- Automotive / RadioCom standards compliance
Discover the possibilities
More information
Description
SIEPEL ARES 1F Semi-Anechoic Chamber for DO-160G & MIL-STD-461G
The Ares 1F is designed to perform emission and immunity tests on military and aeronautic devices. The design of the structure is optimised for maximum performances, in minimum space. The shielding and its pyramidal absorbers are manufactured by SIEPEL.CHARACTERISTICS
Compliance & Performances:DO-160G & MIL-STD-461G
| Measurement distance | 1 m | 1 m |
| Frequency range | 80 MHz - 250 MHz | 250 MHz - 40 GHz |
| Guaranteed performances | < -6 dB | < -10 dB |
| Compliance | Full-compliant | Full-compliant |
Shielding effectiveness complies with EN 50147-1 (10 kHz - 40 GHz).
Dimensions:
| Total overall including metallic frame | Internal usable |
| 4.7 x 3.7 x 2.6 m15 x 12 x 8 ft | 3.8 x 2.8 x 2.1 m12 x 9 x 7 ft |
Quality:
- All absorbers batches are tested by SIEPEL for reflectivity performances between 30 MHz – 1000 MHz
- Their raw materials are compliant to RoHS / REACH and free of substances in the current list of Substances of Very High Concern (SVHC) published by the European Chemicals Agency (ECHA)
