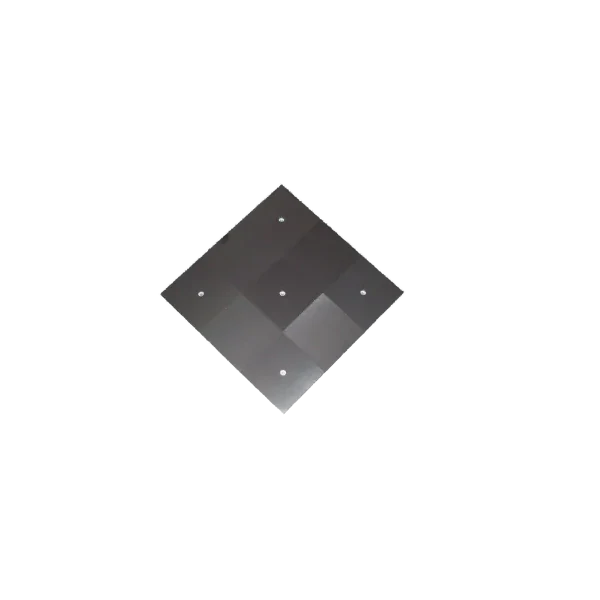

SIEPEL SEA-FE Ferrite Absorbers
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Density: d < 5g/cm3
- Non-combustible material
Discover the possibilities
More information
Description
Absorbers made of ferrites. Chambers lined with ferrite tiles can meet the performances requested by EMI and EMS testing up to 1 GHz.
In order to extend the performances up to 18 GHz (or more), hybrid foam absorbers must be added on top of the ferrite tiles. We recommend using SEA-HY & HYT.
- Density: d < 5g/cm3
- Non-combustible material
- Dimensions:
- Thickness: from 6.7 to 8 mm – from 0.26’’ to 0.31’’
- Standard size: 100×100 mm and 300×300 mm – 3.94’’x3.94’’ and 11.81”x11.81’’
- Indoor use
- Laying: Smart rail system made of horizontal and vertical struts attached onto the shielded room or
- glued or screwed
Our assets:
- Ingenious rail system:
- Ensures easy installation and dismantling for the customer without any loss of material
- No drilling to be done in the shielding panels guaranteeing high shielding effectiveness performances
- Reliable fixation ensuring no risk of ferrite detachment
- 25-year mechanical system warranty
- REACH & RoHS Compliant
- Factory cut, ready to install blocks
