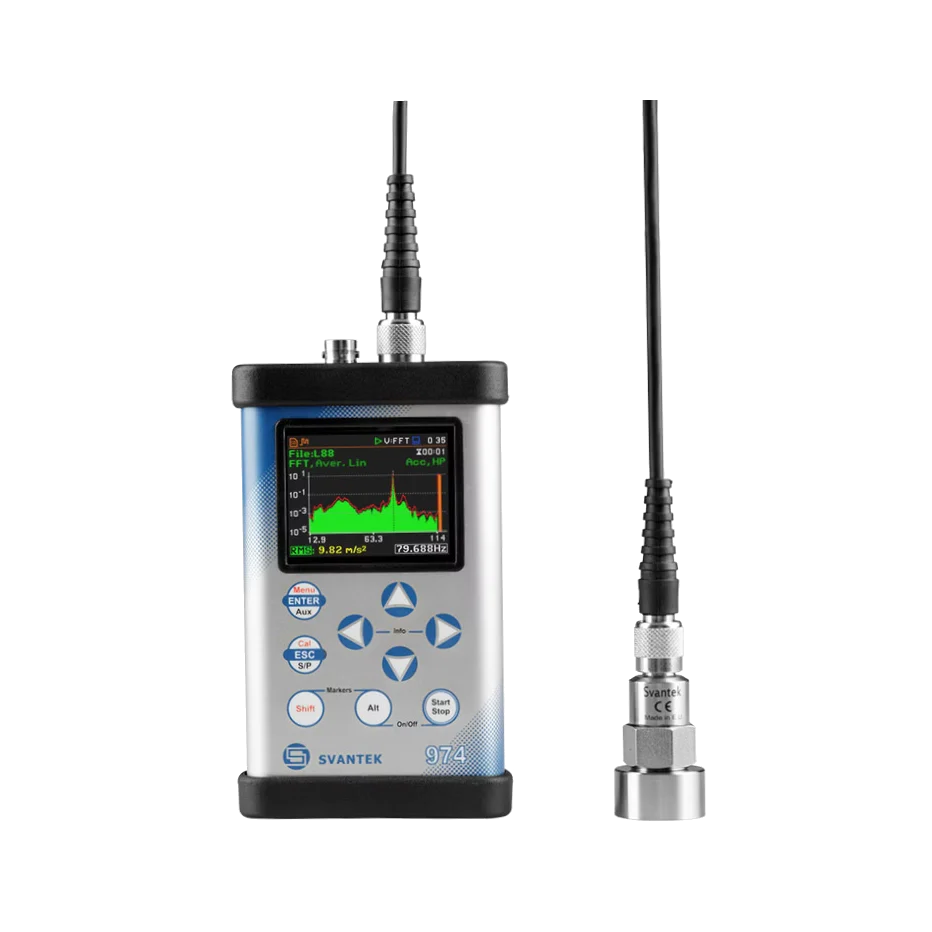

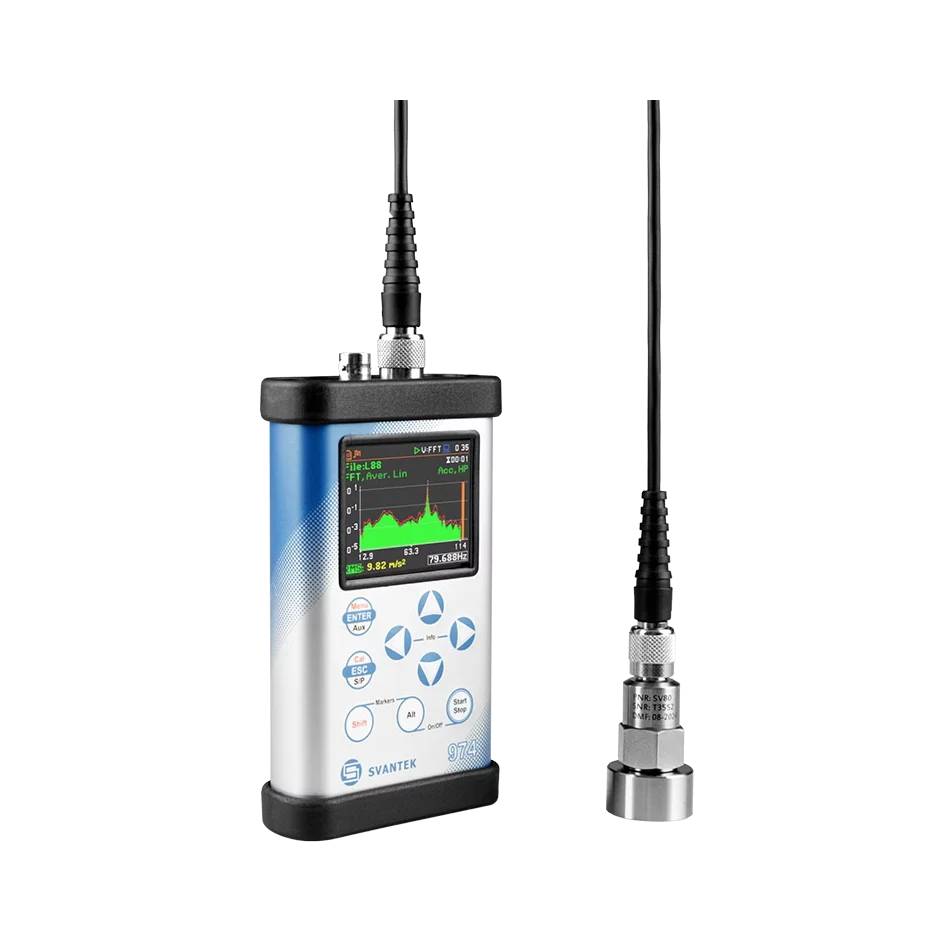

Svantek SVAN 974 Vibration Meter and FFT Analyser
Use our chat for personal support. Or contact us via +46 73-202 00 59 or sales@GOmeasure.se
- Optimised for machinery diagnostics: Ideal for motors, pumps, fans, and rotating equipment
- Three independent profiles: Separate filters, RMS detectors, and time constants for each setup
- Flexible sensor input: Works with IEPE, charge, and direct accelerometers
- Rugged field-ready design: Aluminium housing and OLED display for harsh industrial conditions
- FFT and order tracking: Real-time analysis with optional RPM synchronisation
- WAV and time history logging: Record raw signals and export high-resolution data
- Instant on-site feedback: Vibration values clearly displayed during measurement
- SvanPC++ integration: Enables post-processing, waveform analysis, and custom reporting
Discover the possibilities
More information
Description

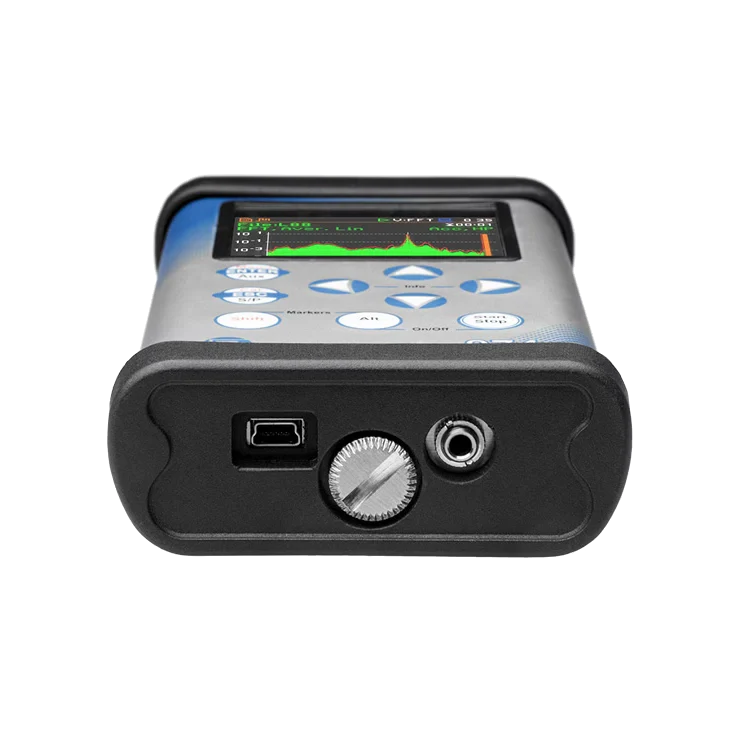

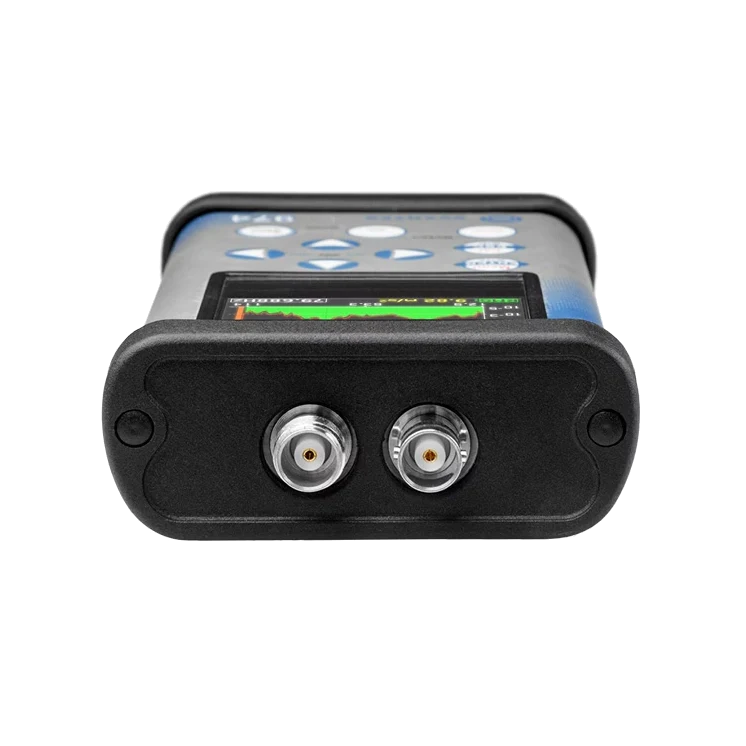

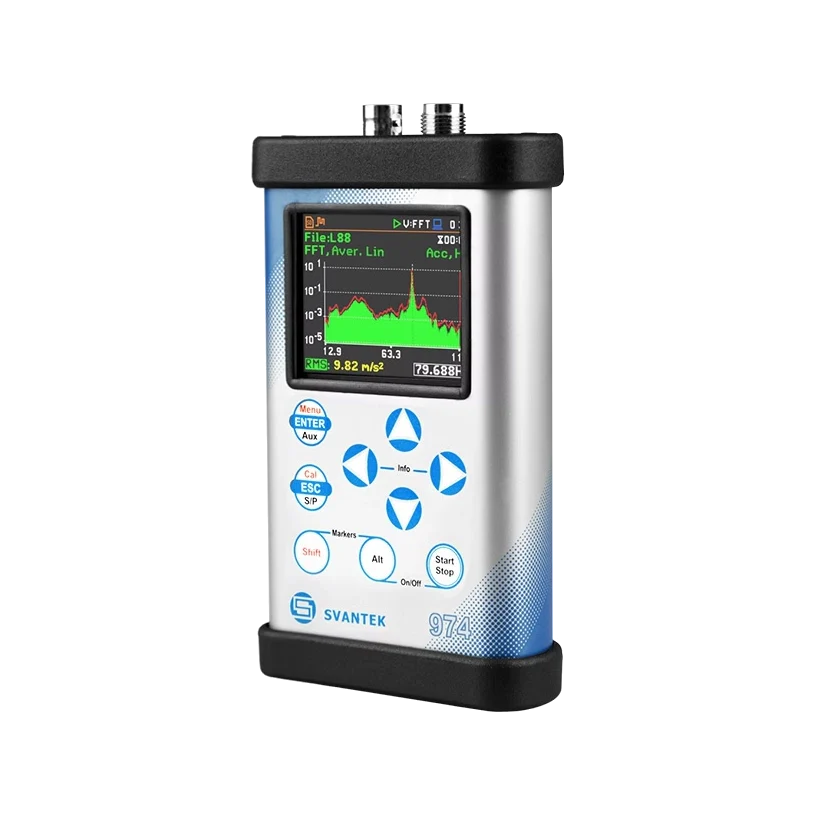

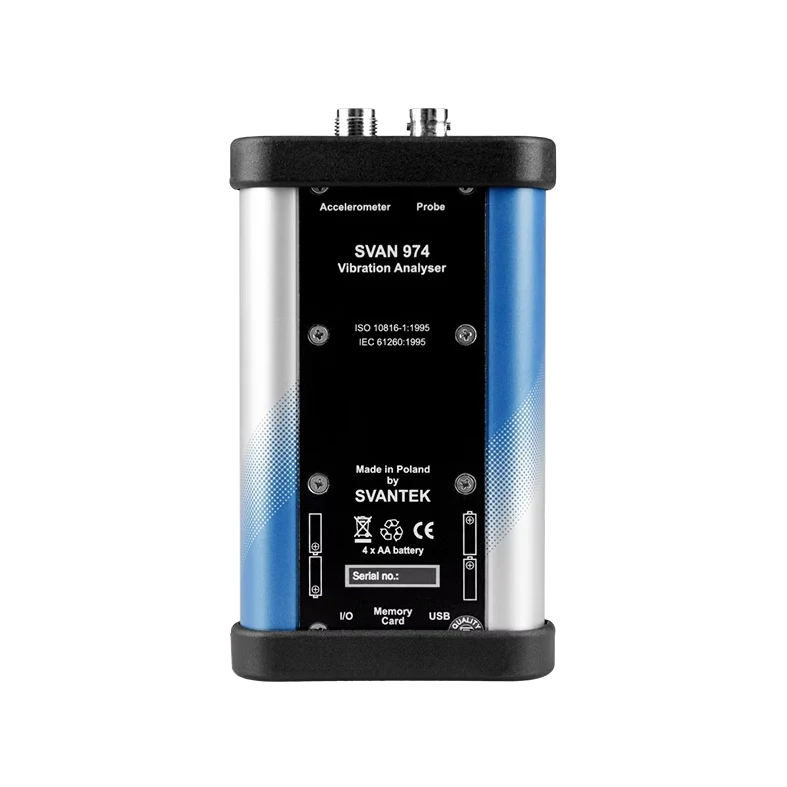

The SVAN 974 is a compact and versatile vibration analyser tailored for industrial machinery diagnostics and predictive maintenance. Designed for walk-around inspections in harsh environments, it features a high-contrast OLED display, rugged aluminium housing, and support for multiple sensor types including IEPE, charge, and direct input. With up to three parallel vibration profiles, engineers can define specific filters and detector settings to match different machines or fault types.
The instrument is ideal for both stationary and rotating machinery, offering advanced tools like real-time FFT, time-domain signal recording, and optional RPM synchronisation. Integrated microSD memory and USB connectivity ensure easy data handling, while compatibility with SvanPC++ software allows in-depth waveform analysis and reporting. The SVAN 974 brings efficiency, repeatability, and clarity to every stage of vibration monitoring—whether on the factory floor or in an R&D lab.
Highlights
- Optimised for machinery diagnostics: Ideal for motors, pumps, fans, and rotating equipment
- Three independent profiles: Separate filters, RMS detectors, and time constants for each setup
- Flexible sensor input: Works with IEPE, charge, and direct accelerometers
- Rugged field-ready design: Aluminium housing and OLED display for harsh industrial conditions
- FFT and order tracking: Real-time analysis with optional RPM synchronisation
- WAV and time history logging: Record raw signals and export high-resolution data
- Instant on-site feedback: Vibration values clearly displayed during measurement
- SvanPC++ integration: Enables post-processing, waveform analysis, and custom reporting
Applications
Machine vibration
Comprehensive monitoring of vibration parameters in machinery
SVAN 974 measures displacement, velocity, and acceleration, supporting both time-domain and frequency-domain analysis. The device complies with ISO 20816-1, providing reliable assessments for diagnostics, acceptance testing, and condition monitoring.
